4. PROGRAMMING INSTRUCTIONS

The HYAMP III automatically defaults to the Perform Tests screen upon power up.

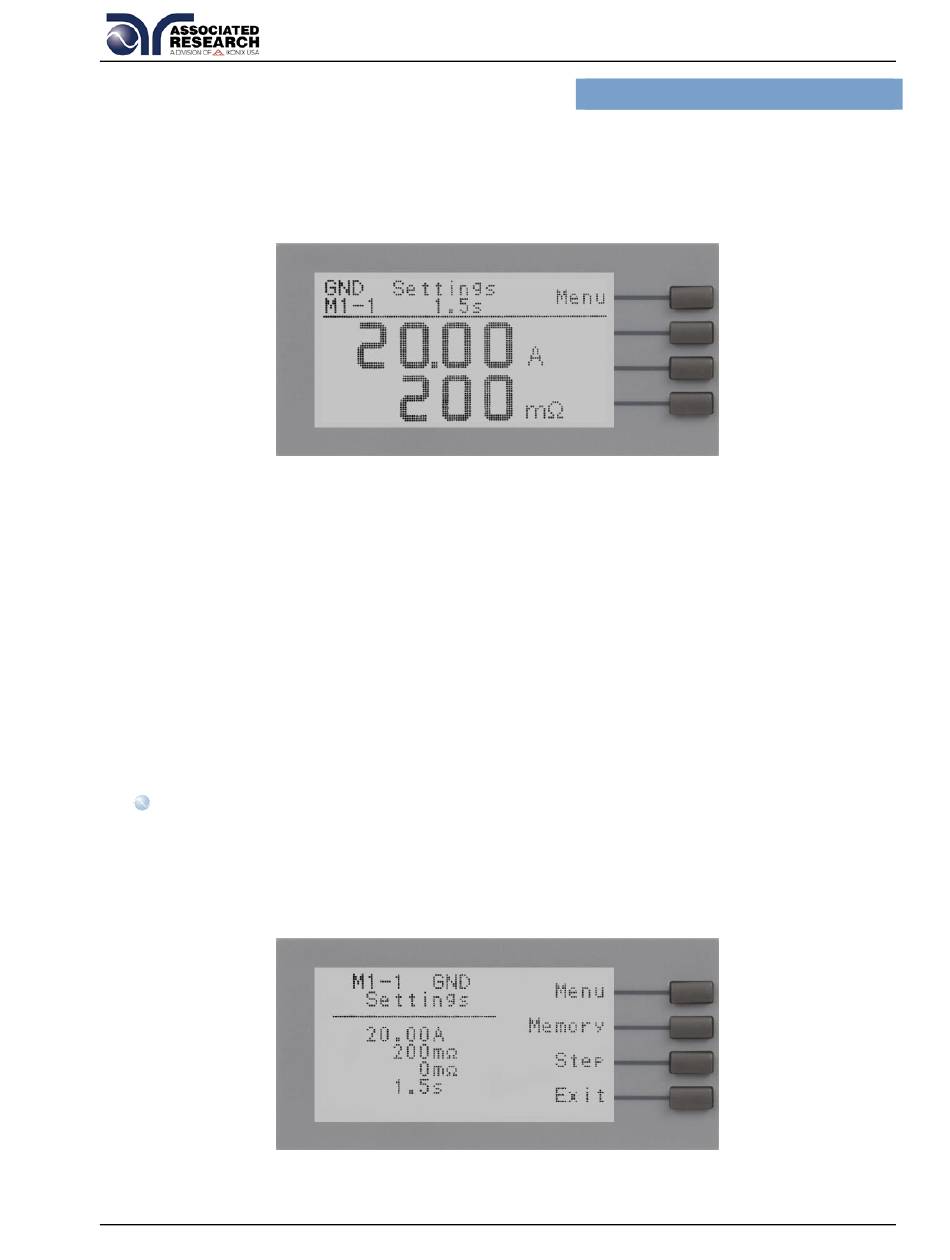

The Perform Tests screen will appear as follows:

The Perform Tests screen is the main operational screen of instrument. From this

screen, all test parameters are monitored while the test is being performed. For more

information refer to section 5.2. Perform Tests, Main Menu, and Results Screens

4.1.1. Memory, Step, and Connected Step Indicator

When in the Perform Tests screen, the Hyamp III will indicate the current memory

location (M0–M9) and step number (1-3) in the upper-left part of the screen (i.e. M3-

2).

The connected step indicator is an underscore symbol located directly next to the

memory and test step number (i.e. M4-2_) and only will be displayed when the

Connect function has been turned ON.

NOTE: There are only 3 programmable test steps per memory location. Step 3

of any memory location cannot be connected to another step.

From the Perform Tests screen, press the "Menu" soft key.
