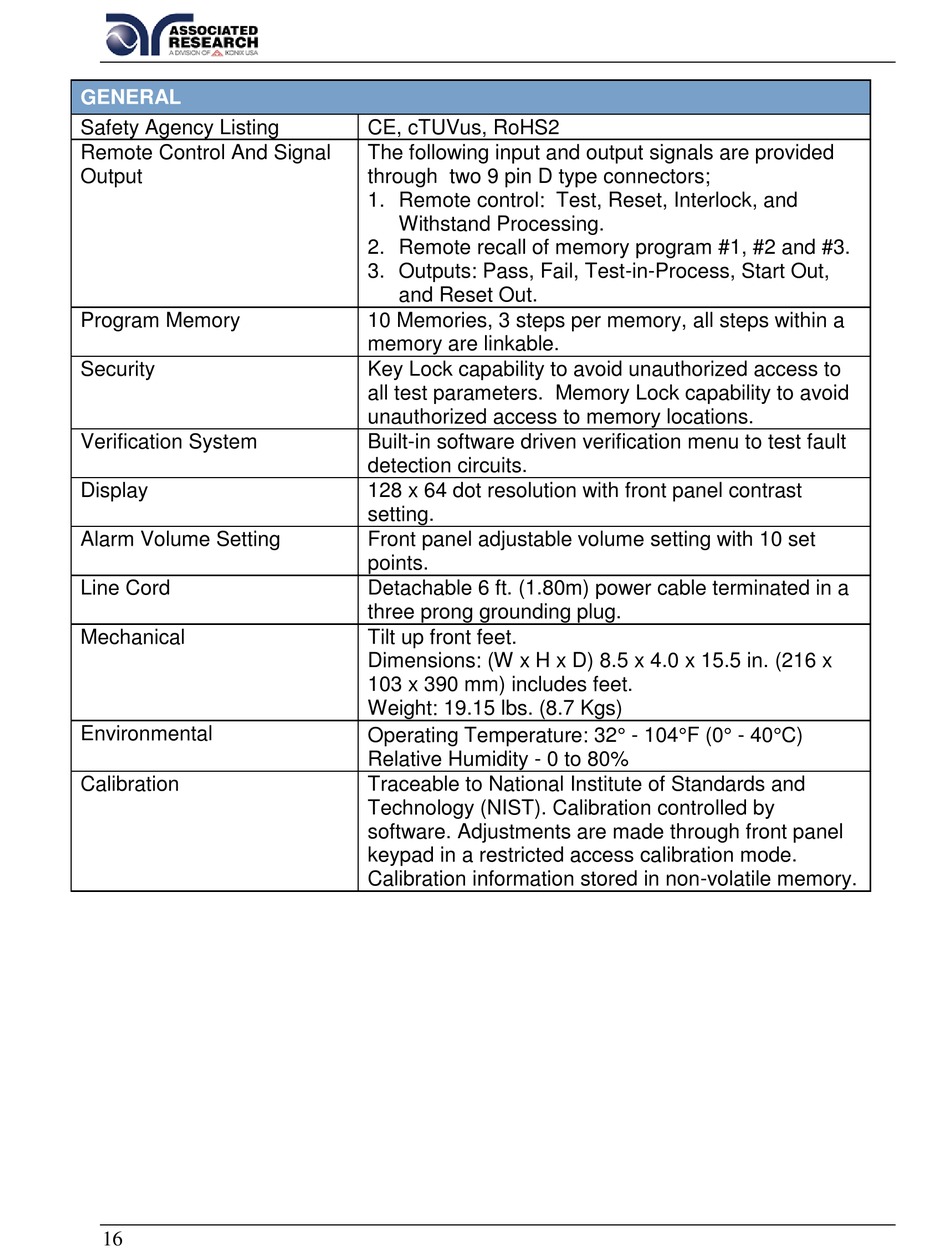

GENERAL
Safety Agency Listing
Remote Control And Signal
Output
Program Memory
Security
Verification System
Display
Alarm Volume Setting
Line Cord
Mechanical
Environmental
Calibration
16
CE, cTUVus, RoHS2
The following input and output signals are provided
through two 9 pin D type connectors;
1. Remote control: Test, Reset, Interlock, and
Withstand Processing.
2. Remote recall of memory program #1, #2 and #3.
3. Outputs: Pass, Fail, Test-in-Process, Start Out,
and Reset Out.
10 Memories, 3 steps per memory, all steps within a
memory are linkable.
Key Lock capability to avoid unauthorized access to
all test parameters. Memory Lock capability to avoid
unauthorized access to memory locations.
Built-in software driven verification menu to test fault
detection circuits.
128 x 64 dot resolution with front panel contrast
setting.
Front panel adjustable volume setting with 10 set
points.
Detachable 6 ft. (1.80m) power cable terminated in a
three prong grounding plug.
Tilt up front feet.
Dimensions: (W x H x D) 8.5 x 4.0 x 15.5 in. (216 x
103 x 390 mm) includes feet.
Weight: 19.15 lbs. (8.7 Kgs)
Operating Temperature: 32 - 104F (0 - 40C)
Relative Humidity - 0 to 80%
Traceable to National Institute of Standards and
Technology (NIST). Calibration controlled by
software. Adjustments are made through front panel
keypad in a restricted access calibration mode.
Calibration information stored in non-volatile memory.
