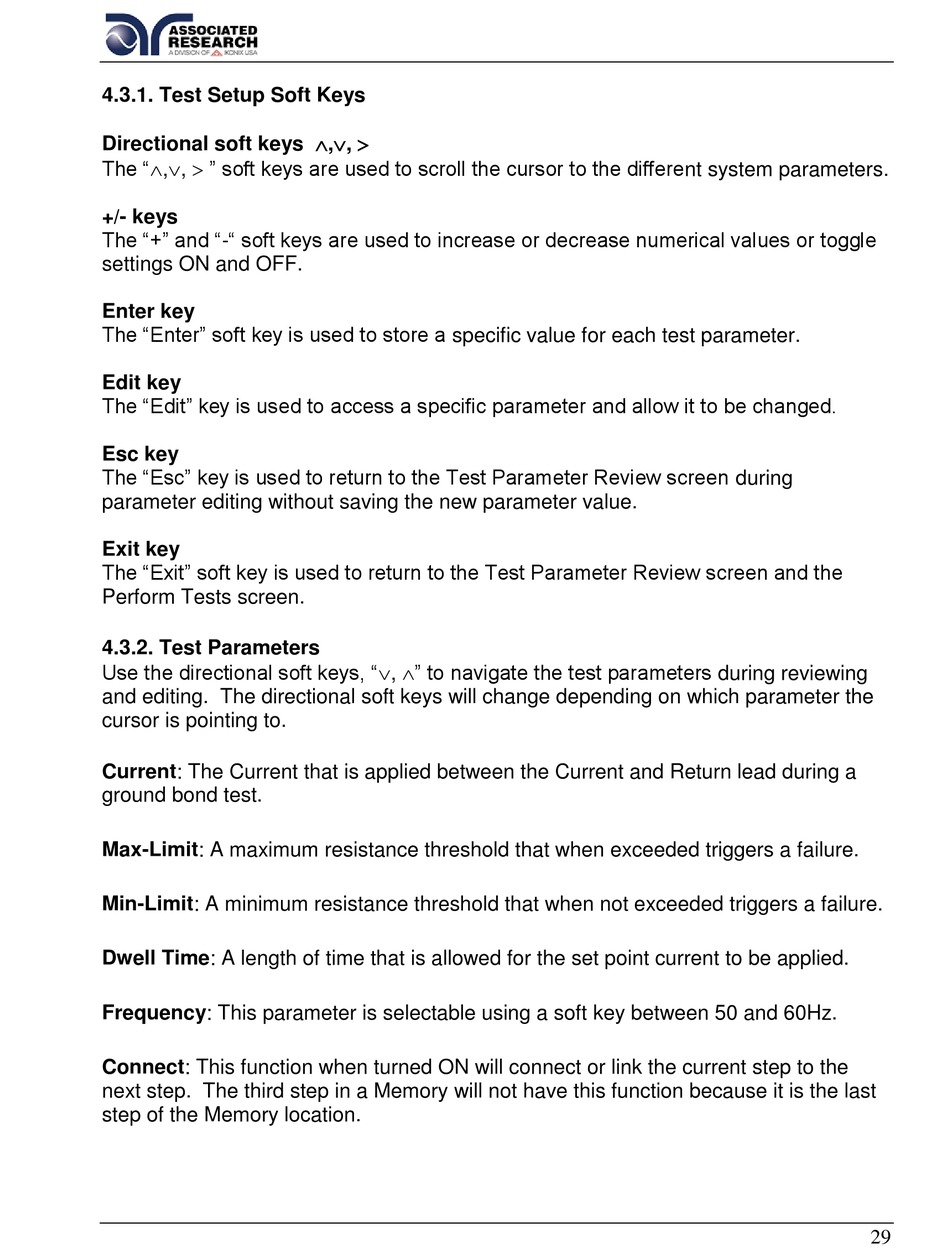

4.3.1. Test Setup Soft Keys

Directional soft keys ,, 
The ",,  " soft keys are used to scroll the cursor to the different system parameters.
+/- keys
The "+" and "-" soft keys are used to increase or decrease numerical values or toggle
settings ON and OFF.
Enter key
The "Enter" soft key is used to store a specific value for each test parameter.
Edit key
The "Edit" key is used to access a specific parameter and allow it to be changed.
Esc key
The "Esc" key is used to return to the Test Parameter Review screen during
parameter editing without saving the new parameter value.
Exit key
The "Exit" soft key is used to return to the Test Parameter Review screen and the
Perform Tests screen.

4.3.2. Test Parameters

Use the directional soft keys, ", " to navigate the test parameters during reviewing
and editing. The directional soft keys will change depending on which parameter the
cursor is pointing to.
Current: The Current that is applied between the Current and Return lead during a
ground bond test.
Max-Limit: A maximum resistance threshold that when exceeded triggers a failure.
Min-Limit: A minimum resistance threshold that when not exceeded triggers a failure.
Dwell Time: A length of time that is allowed for the set point current to be applied.
Frequency: This parameter is selectable using a soft key between 50 and 60Hz.
Connect: This function when turned ON will connect or link the current step to the
next step. The third step in a Memory will not have this function because it is the last
step of the Memory location.
