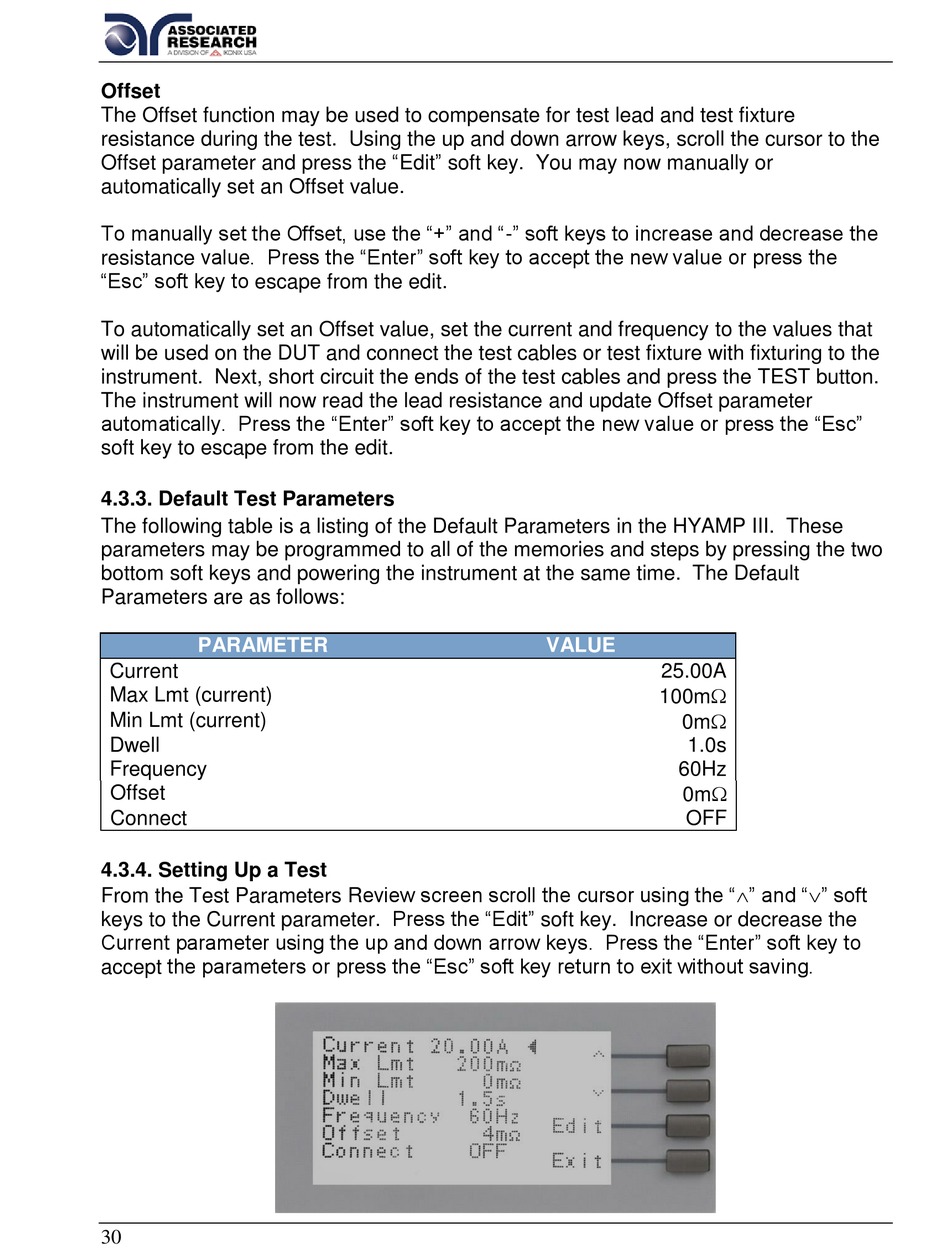

Offset
The Offset function may be used to compensate for test lead and test fixture
resistance during the test. Using the up and down arrow keys, scroll the cursor to the
Offset parameter and press the "Edit" soft key. You may now manually or
automatically set an Offset value.
To manually set the Offset, use the "+" and "-" soft keys to increase and decrease the
resistance value. Press the "Enter" soft key to accept the new value or press the
"Esc" soft key to escape from the edit.
To automatically set an Offset value, set the current and frequency to the values that
will be used on the DUT and connect the test cables or test fixture with fixturing to the
instrument. Next, short circuit the ends of the test cables and press the TEST button.
The instrument will now read the lead resistance and update Offset parameter
automatically. Press the "Enter" soft key to accept the new value or press the "Esc"
soft key to escape from the edit.
4.3.3. Default Test Parameters
The following table is a listing of the Default Parameters in the HYAMP III. These
parameters may be programmed to all of the memories and steps by pressing the two
bottom soft keys and powering the instrument at the same time. The Default
Parameters are as follows:
PARAMETER
Current
Max Lmt (current)
Min Lmt (current)
Dwell
Frequency
Offset
Connect

4.3.4. Setting Up a Test

From the Test Parameters Review screen scroll the cursor using the "" and "" soft
keys to the Current parameter. Press the "Edit" soft key. Increase or decrease the
Current parameter using the up and down arrow keys. Press the "Enter" soft key to
accept the parameters or press the "Esc" soft key return to exit without saving.
30
VALUE
25.00A
100m
0m
1.0s
60Hz
0m
OFF
