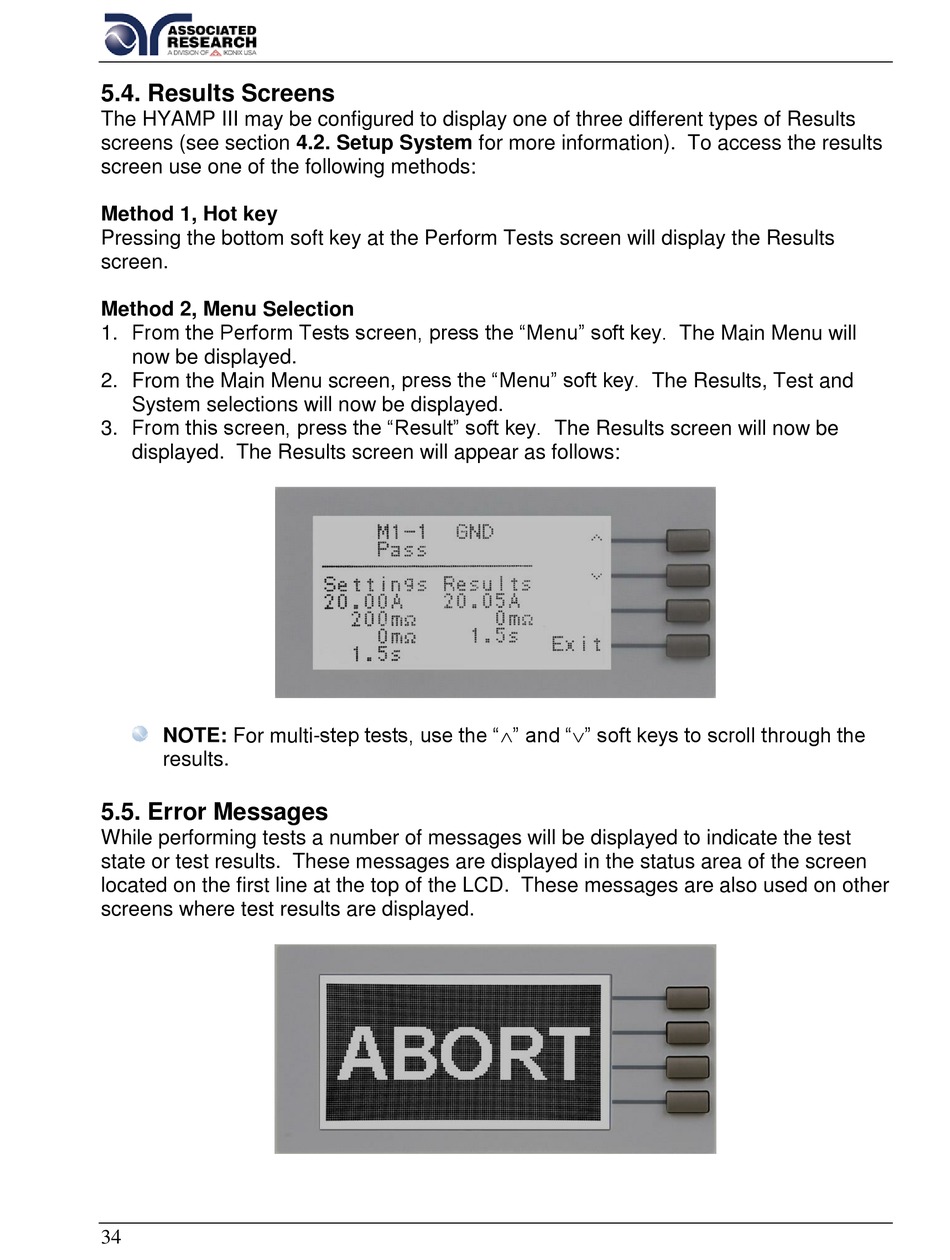

5.4. Results Screens

The HYAMP III may be configured to display one of three different types of Results

screens (see section 4.2. Setup System for more information). To access the results

screen use one of the following methods:

Method 1, Hot key

Pressing the bottom soft key at the Perform Tests screen will display the Results

screen.

Method 2, Menu Selection

1. From the Perform Tests screen, press the "Menu" soft key. The Main Menu will

now be displayed.

2. From the Main Menu screen, press the "Menu" soft key. The Results, Test and

System selections will now be displayed.

3. From this screen, press the "Result" soft key. The Results screen will now be

displayed. The Results screen will appear as follows:

NOTE: For multi-step tests, use the "" and "" soft keys to scroll through the

results.

While performing tests a number of messages will be displayed to indicate the test

state or test results. These messages are displayed in the status area of the screen

located on the first line at the top of the LCD. These messages are also used on other

screens where test results are displayed.
