5. OPERATING INSTRUCTIONS

5.1. Instrument Connections

5.1.1. Test Leads

The test leads provided are designed specifically for use with this instrument. The red
High Current lead will mate with the red Current jack. The black Return lead will mate
with the black Return jack.
The test lead ratings are as follows:
DESCRIPTION
High Current lead 05002D-24
Return lead

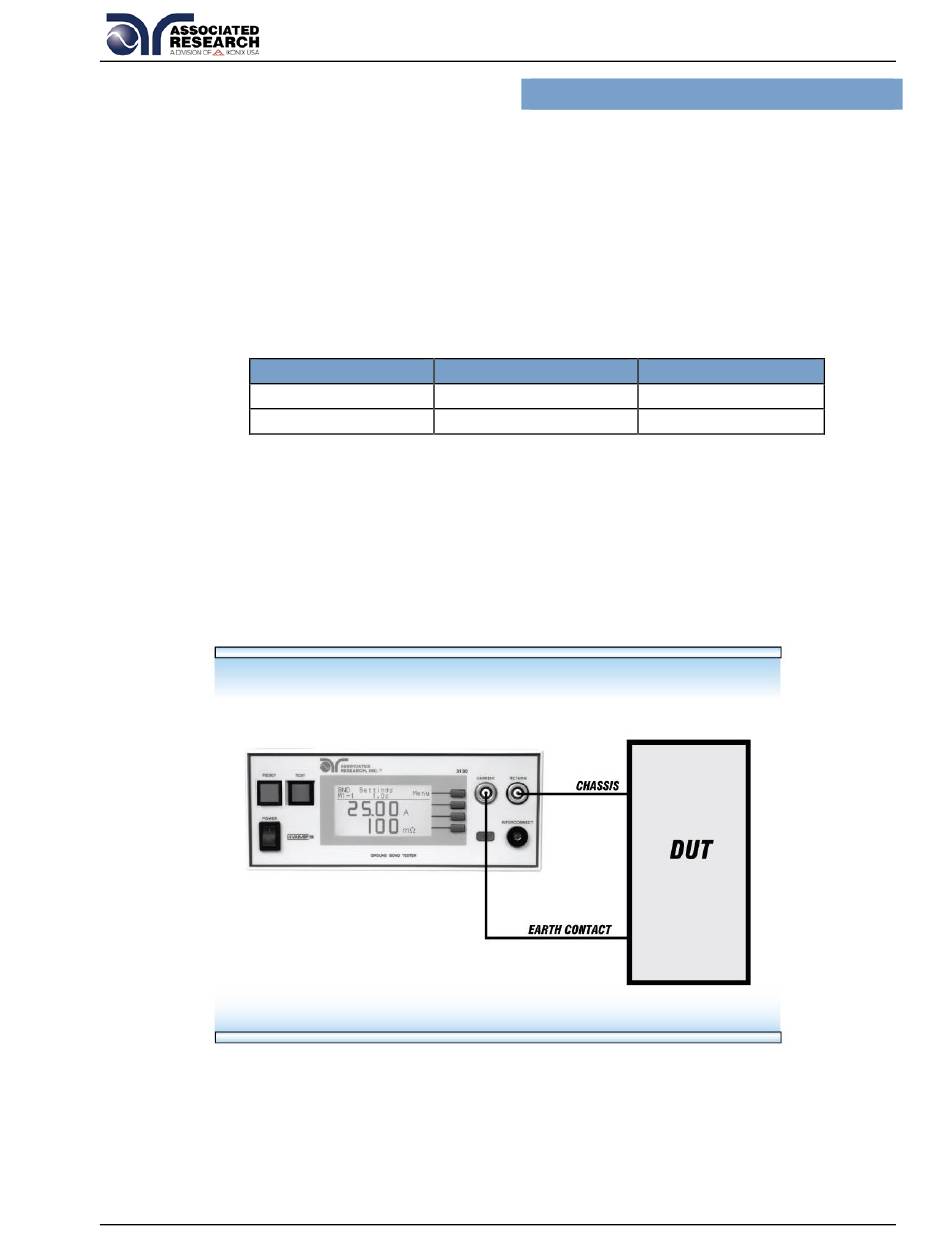

Connecting the Test Leads
Connect the High Current lead (05002D-24, red markers) to the Current connector on
the HYAMP III, then connect the other end of the lead to the earth ground contact
(usually the ground conductor connection point for the line cord inlet).
Connect the Return lead (05002D-37) to the Return connector on the HYAMP III, then
connect the other end of the lead to chassis ground.
5.1.2. Adapter Box Connections (Optional)
The adapter box provides an easy way to connect a line cord-terminated DUT to the
HYAMP III. The following diagram shows how to connect the adapter box to the
HYAMP III and to the DUT.
32
PART NUMBER
05002D-37
RATING
31 A, 750V
31 A, 750V
