10 Technical data
98
10.3

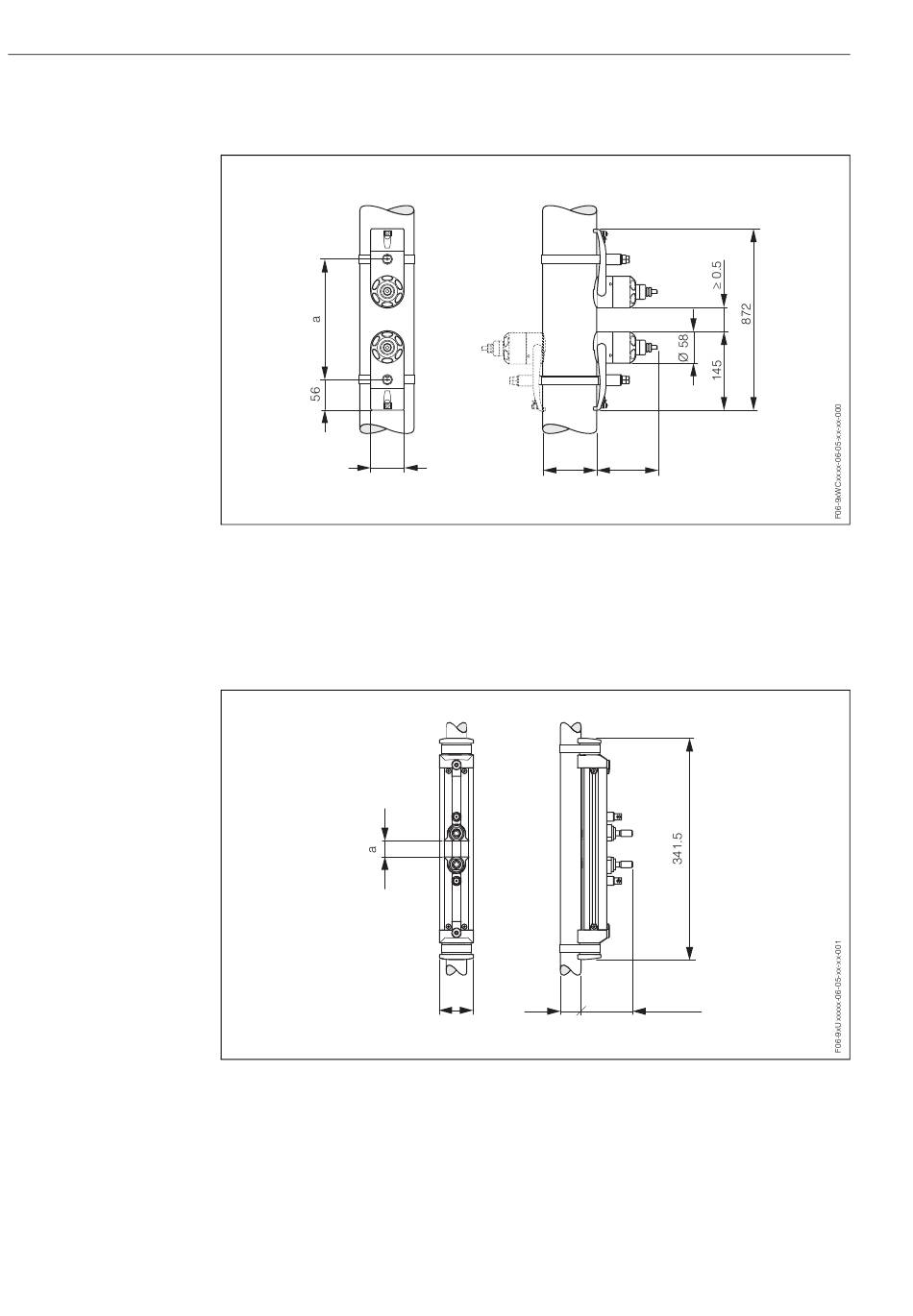

Dimensions of W sensors (Clamp On)
62
Fig. 55:
Dimensions of W sensor (Clamp On)
a = Sensor spacing can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
10.4
Dimensions of U sensors (Clamp On)
Fig. 56:
Dimensions of U sensor (Clamp On)
a = Sensor spacing can be determined using Quick Setup
b = Pipe outer diameter (defined by the application)
b
52.5
b
PROline Prosonic Flow 90
111
max. 77.5
Endress+Hauser
