Interlogix TruVision 4 IP Series Configuration Manual page 62

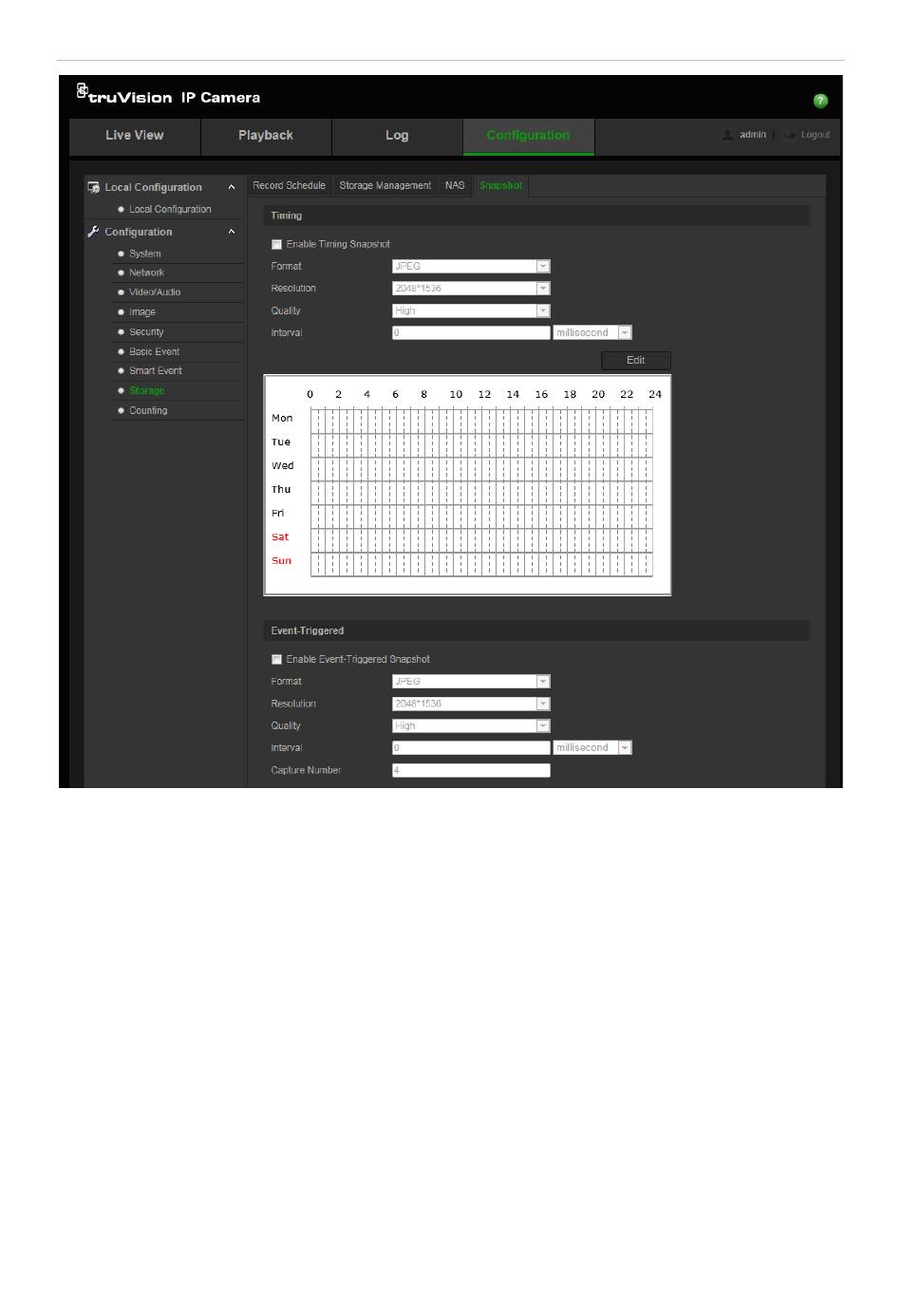

Figure 21: Snapshot window
To set up scheduled snapshots:
1. From the menu toolbar, click
2. Check Enable Timing Snapshot
3. Select the desired format of the snapshot, such as JPEG.
4. Select the desired resolution and quality of the snapshot.
5. Enter the time interval between two snapshots. Select the unit of time from the drop-
down list: milliseconds, seconds, minutes, hour, or day.
6. Set the schedule for when you want snapshots to be taken. Click
desired schedule for each day of the week.
7. Click Save to save changes.
To set up event-triggered snapshots:
1. From the menu toolbar, click
2. Check Enable Event-triggered Snapshot
60
Configuration > Storage
to enable continuous snapshots.
Configuration > Storage
to enable event-triggered snapshots.
> Snapshot.
Edit
> Snapshot.
TruVision Series 4 IP Camera Configuration Manual
and enter the
