Interlogix TruVision 4 IP Series Configuration Manual page 44

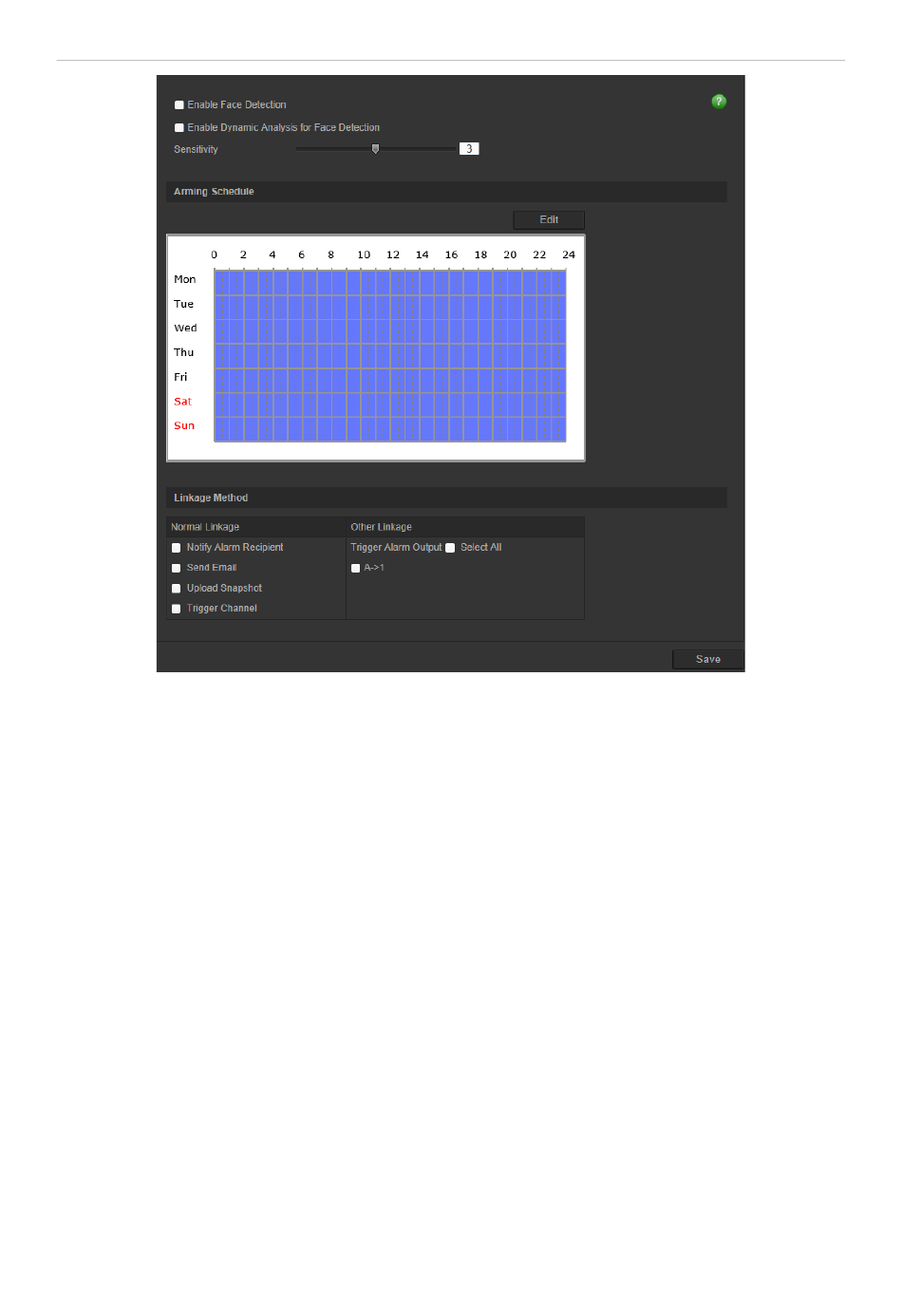

Figure 13: Face detection window
To define face detection:
1. From the menu toolbar, click
2. Check Enable Face Detection
3. Check Enable Dynamic Analysis
to be marked with a green rectangle in live view.
Note: If you do not want the detected face marked with the green frame, select
Disable from Configuration > Local Configuration > Live View Parameters > Rules.
4. Configure the sensitivity of the face detection. The range is between 1 and 5.
5. Click Edit to set the arming schedule for the alarm input. See "Motion detection
alarms" on page 32 for more information.
6. Specify the linkage method when an event occurs. Check one or more response
methods for the system when a face detection alarm is triggered.
42
Configuration > Smart Event
to enable the function.
for Face Detection
> Face Detection.
if you want the face detected
TruVision Series 4 IP Camera Configuration Manual
