Page 1: Camera Installation
TruVision IP PTZ Camera Installation Guide P/N 1072666A-EN • REV 1.0 • ISS 24SEP13... - Page 2 Copyright © 2013 UTC Fire & Security Americas Corporation, Inc. Interlogix is part of UTC Climate Controls & Security, a unit of United Technologies Corporation. All rights reserved. Trademarks and The Product Name and logo are trademarks of United Technologies.
-
Page 3: Table Of Contents
Pendant-mount camera 6 Flush-mount camera 8 Surface-mount camera 10 Using the camera with an Interlogix NVR or Hybrid DVR or another system 14 Using the camera with TruVision Navigator 14 Accessing the camera over the internet 14 ... -
Page 4: Before You Begin
TVP-1101 (1.3MPX pendant, PAL) TVP-3101 (1.3MPX pendant, NTSC) TVP-1102 (1.3MPX surface, PAL) TVP-3102 (1.3MPX surface, NTSC) TVP-1103 (1.3MPX flush, PAL) TVP-3103 (1.3MPX flush, NTSC) TVP-1104 (2MPX pendant, PAL) TVP-3104 (2MPX pendant, NTSC) ... -
Page 5: Camera Description

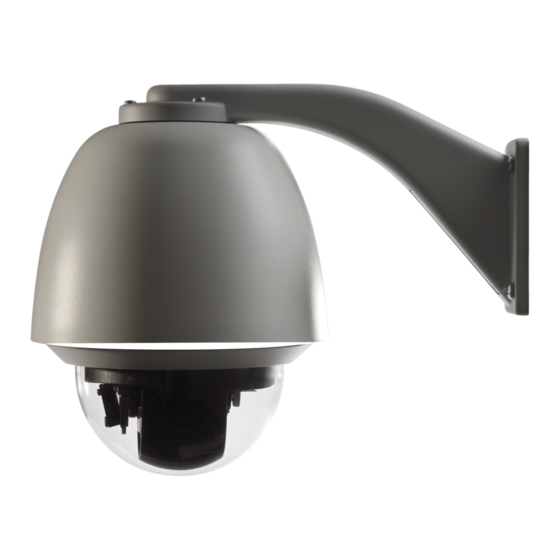

Camera description Figure 1: Overview of the dome camera (pendant-mount shown) 1. Power supply cord Connect 24 VAC power supply 2. Video output Connect the BNC connector to a CCTV monitor 3. Ethernet RJ45 connector. Connect to the network devices Connect to the PoE+ switch 4. -
Page 6: Installing A Camera
Installing a camera Pendant-mount camera 1. Prepare the mounting surface and install the camera bracket. 2. Unscrew the bubble from the camera and remove the protective tape from the PTZ module. 3. Press the two tabs on either side of the PTZ module and remove the module from the camera housing. - Page 7 Safety cable Note: If alarm and audio input/output relays are to be used, also connect them to the PCB of the module. Caution: The safety cable is made of metal. Please ensure that it does not touch the PCB of the module. 6.
-
Page 8: Flush-Mount Camera
9. See “Accessing the camera over the internet” on page 14 to configure the camera over the internet. Refer to the Configuration Manual for detailed information. Flush-mount camera 1. Drill a hole on the ceiling using the drill template. 2. Tie three safety cables (not supplied) to the safety hooks on the camera and hang the camera from a secure point. - Page 9 6. Adjust the height of the two housing tabs by turning the screw on which they are attached. The distance (h) of the tabs from the housing ring must be greater than the thickness of the ceiling. Housing tab Screw 7.
-
Page 10: Surface-Mount Camera
10. Install the trim ring. Align the trim ring to the housing, and insert the fix-pins to the holes. Then rotate the ring clockwise to secure. 11. See “Accessing the camera over the internet” on page 14 to configure the camera over the internet. Refer to the Configuration Manual for detailed information. - Page 11 1. Use the mounting base as a template to mark four screw holes onto the ceiling. If you route cables from the top of the housing, mark the cable hole on the ceiling and drill a hole. Cable hole Screw holes 2.
- Page 12 6. Install the housing onto the mounting base. Line up the direction of the arrow on the housing with the spring end of the mounting base. Push the housing upwards (A) and then forwards (B) in the direction of the arrow. When the housing is placed in position, the spring will automatically snap into the lock clip firmly.
- Page 13 8. Re-attach the bubble by screwing it to the housing. Warning: After installation, the PTZ module will perform a PTZ self-test and initializes with the power on. DO NOT touch and move the camera while it is self-testing and initializing. 9.
-
Page 14: Using The Camera With An Interlogix Nvr Or Hybrid Dvr Or Another System
Using the camera with TruVision Navigator A camera must be connected to an Interlogix NVR or hybrid DVR to be operated by TruVision Navigator. Please refer to the TruVision Navigator user manual for instructions on operating the camera with the TruVision Navigator. - Page 15 3. Click the Configuration tab on the top of the screen and select the parameter to change Figure 2: Example of a configuration window Table 1: Overview of the Configuration panel Configuration folders Description System Defines device basic information including SN and the current firmware version, time settings, and maintenance parameters.
-
Page 16: Specifications
Configuration folders Description Storage Defines recording schedule, storage management and NAS configuration. Specifications Electrical Voltage input 24 VAC, PoE+ (IEEE 802.3at) Power consumption Pendant housing: PoE: Max. 25 W 24 VAC: Max. 65 W Flush housing: Max. 25 W Surface housing: Max. 25 W Miscellaneous Operating Pendant housing: PoE+ for -30 to 65 °C... -
Page 17: Pin Definitions
Pin definitions There are eight wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight and crossover cable connection: Figure 3: Straight-through cable White/Orange White/Orange Orange Orange White-Green White-Green Blue Blue White/Blue... - Page 18 Installation Guide...
