Picture overlay

Picture overlay enables you to overlay a picture on the image. This function enables a
certain enterprise or users to overlay their logo on the image. The picture must be in
RGB24 bmp format and the maximum size of the picture is 128*128.

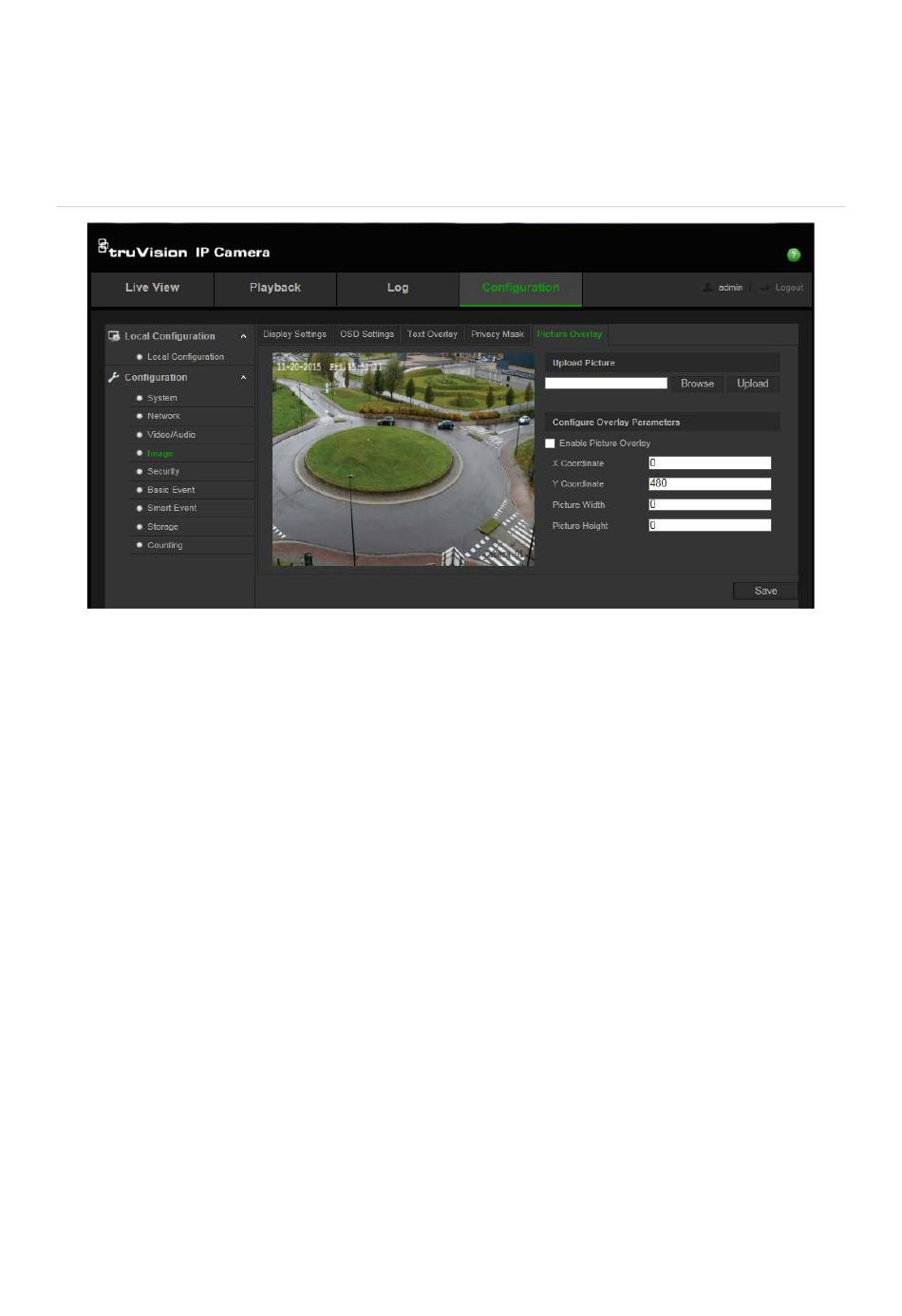

Figure 9: Camera image settings menu
To add a picture:
1. From the menu toolbar, click
2. Click Browse to select a picture and
3. Check Enable Picture Overlay
Note: X coordinate and Y coordinate values are for the location of the picture on the
image. The Picture width and height shows the size of the picture.

Motion detection alarms

You can define motion detection alarms. A motion detection alarm refers to an alarm
triggered when the camera detects motion. However, the motion alarm is only triggered
if it occurs during a programmed time schedule.
Select the level of sensitivity to motion as well as the target size so that only objects of
interest can trigger a motion recording. For example, the motion recording is triggered
by the movement of a person but not that of a small animal.
You can define the area on screen where the motion is detected, the level of sensitivity
to motion, the schedule for the configured level of sensitivity as well as which methods
are used to alert you to a motion detection alarm.
You can also enable dynamic analysis for motion. When there is motion, the area will
be highlighted as green.
32
Configuration > Image
Upload to upload it.
checkbox to enable the function.
> Picture Overlay.
