- Page 1 TruVision HD-TVI 720P and 1080P Bullet Camera Installation Guide P/N 1073164-EN • REV C • ISS 22NOV17...
-
Page 3: Table Of Contents
Contents Product overview 2 Camera description 5 Installation 8 Built-in heater in the TVB-2405/4405 camera 12 Program 13 Menu trees 18 Specifications 20 Legal and regulatory information 22 Installation Guide... -
Page 4: Product Overview

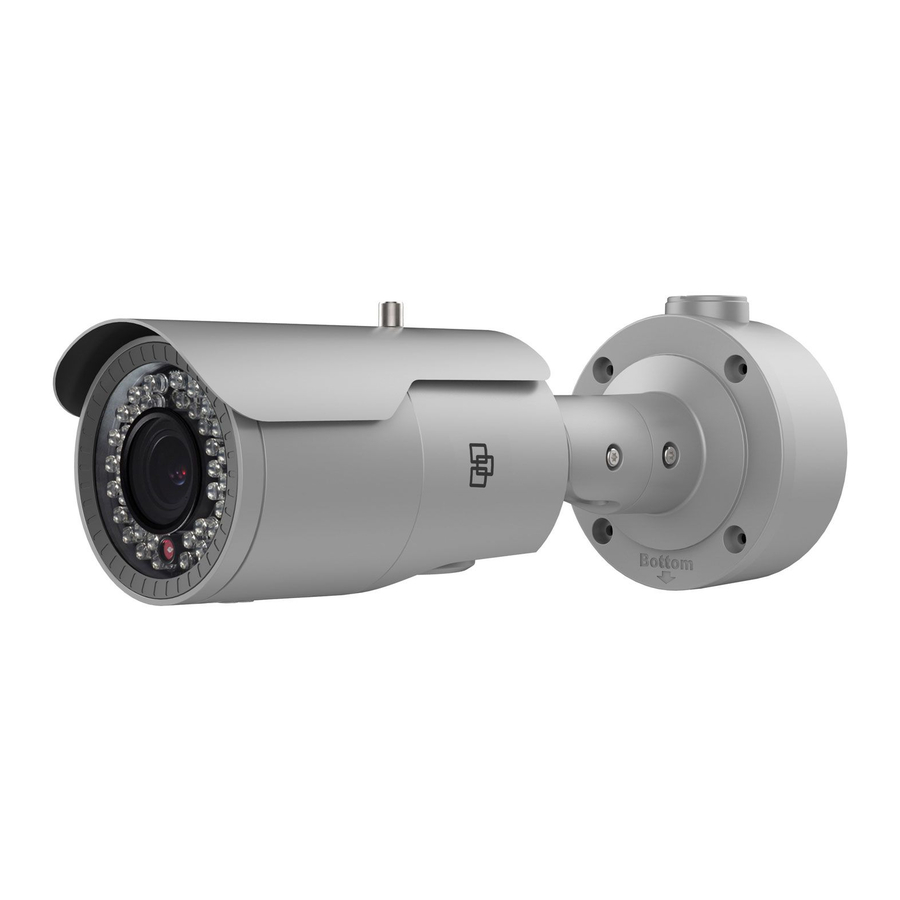

Product overview This is the installation guide for TruVision 720P and 1080P HD-TVI bullet camera models: TVB-2402 (720P Bullet, 2.8 to 12 mm VF lens, PAL) TVB-4402 (720P Bullet, 2.8 to 12 mm VF lens, NTSC) TVB-2404 (1080P Bullet, 2.8 to 12 mm VF ... -
Page 5: Package Contents
Package contents Camera with power 4 screws and 4 and video output anchors for wall or cables ceiling installation Back box Screws M4.8 × 18, 4 pcs to attach the back box Template Hex wrench ... - Page 6 • Installation guide • WEEE disposal sheet • Video test cable Installation Guide...
-
Page 7: Camera Description
Camera description Figure 1: Camera description 960H analog output Sun shield (black) Lens TVI output (gray) Mounting bracket Power cable Back box Camera body Note: Please check the camera output settings before setting up a system. The TVI video output can be only connected to a DVR with a TVI signal input. - Page 8 960H analog monitor (or test monitor), an encoder, or a DVR. For 720P VF bullet cameras, TVB-2402 / TVB-4402, the 960H analog and TVI output cannot be used at the same time. Use the built-in switch to select the camera video output. For 1080P VF bullet cameras, such as TVB- 2404/TVB-4404 and TVB-2405/TVB-4405, the built- in switch is used to enable/disable the WDR feature.
- Page 9 Figure 2: TVB-2402 /TVB-4402 Focus Zoom OSD menu button 960H Switch (Up= analog / Down = TVI) BNC output (for video test cable) Figure 3: TVB-2404 /TVB-4404 Focus Zoom OSD menu button 960H Switch (Up= analog / Down = WDR) BNC output (for video test cable) Installation Guide...
-
Page 10: Installation
Figure 4: TVB-2405 /TVB-4405 OSD menu button 960H Switch (Up= analog / Down = WDR) BNC output (for video test cable) Installation To install the camera: Using the template, place it level against the mounting surface and mark the position of the mounting holes. - Page 11 Drill Template Hole A: for cables routed through the wall Screw hole 1: for integrative bracket Screw hole 2: for conduit back box Following all local safety regulations, drill and prepare the mounting holes. As an optional step, install the back box on the wall.
- Page 12 12 VDC or 24 VAC power supply to the power cable. Secure the camera to the ceiling or wall with the screws provided. Installation Guide...
- Page 13 Loosen the three screws on the mounting bracket and adjust the camera angle according to the figure below to the optimum position. Tighten the screws after completing the adjustment. 360° 90° 360° Zoom and focus adjustment Manually adjust the zoom and focus on TVB-2402/TVB-4402 and TVB-2404/TVB- 4404.
-
Page 14: Built-In Heater In The Tvb-2405/4405 Camera
TVB-2405/TVB-4405 has a motorized lens. Please adjust its zoom and focus by using the zoom and focus buttons on the PTZ panel of a connected recorder or controllor. Built-in heater in the TVB- 2405/4405 camera The TVB-2405/4405 camera has a built-in heater that works within the temperature range of -40 and +60 °C (-40 to +140 °F). -
Page 15: Program
When the camera initially starts up, the heater will start to work automatically when the temperature is below -10 °C (14 °F). However, with continuous operation the heater will not work until the internal temperature drops below -30°C (-22 °F). Note: The TVB-2402/4402 and TVB-2404/4404 operating temperature range is between -30 and +60 °C (-22 to +140 °F). - Page 16 Press the button up/down to move the cursor up or down to an OSD item. Press the button left/right to move the cursor left or right to adjust the value of a selected OSD item. Using a TVI output Programming over the camera’s TVI output can be done via a TVI DVR.
- Page 17 Access the PTZ menu of the connected DVR, set TruVision-Coax protocol and use the PTZ control panel to configure the camera. Click Iris+ to access to the camera OSD menu and select an OSD item. Click the directional buttons UP or DOWN to move the cursor up or down to an OSD item.
- Page 18 Figure 6: 960H analog cable connections Press the button of the TVS-C200 for a few seconds until you see the OSD menu display on the monitor. You can also use the button to select an OSD item. Use the directional buttons to move cursor and adjust value.
- Page 19 TVB-2402/TVB-4402 camera The camera has 960H analog and TVI dual video outputs. Set the built-in switch to CVBS/960H Analog to view the program on a standard monitor. The TVI is blocked until the camera configuration is complete and the switch is reset to TVI. See Figure 7 on page 18 to see the menu tree.
-
Page 20: Menu Trees
If the switch is set to CVBS/960H Analog, the WDR feature is disabled and the camera has both 960H analog and TVI output available. See Figure 8 on page 19 to see the menu tree. Menu trees Figure 7: TVB-2402/TVB-4402 menu tree Installation Guide... - Page 21 Figure 8: TVB-2404/TVB-4404 and TVB- 2405/TVB-4405 menu tree Installation Guide...
-
Page 22: Specifications
Specifications Power supply 12 VDC / 24 VAC Current TVB-2402 / TVB-4402: 12 VDC: Max. 333 mA 24 VAC: Max. 250 mA TVB-2404/TVB-4404: 12 VDC: Max. 420 mA 24 VAC: Max. 250 mA TVB-2405/TVB-4405: 12 VDC: Max. 1A 24 VAC: Max. 500 mA TVB-2402/TVB-4402: Power consumption... - Page 23 Weight (net) TVB-2402/TVB-4402: 860 g / 1.89 lb. (without back box) 1075 g / 2.36 lb. (with back box) TVB-2404/TVB-4404: 860 g / 1.89 lb. (without back box) 1075 g / 2.36 lb. (with back box) TVB-2405/TVB-4405: 880 g / 1.94 lb. (without back box) 1095 g / 2.41 lb.
-
Page 24: Legal And Regulatory Information
Legal and regulatory information Copyright: © 2017 United Technologies Corporation. All rights reserved. Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. Trademarks and patents: Trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. - Page 25 harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. ACMA compliance Notice! This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
- Page 26 For more information on warranty disclaimers and product safety information, please check www.firesecurityproducts.com/policy/product-warning/ or scan the following code: Contact information and manuals For contact information go to: www.interlogix.com or www.firesecurityproducts.com To get translations for this and other product manuals go to: www.firesecurityproducts.com Installation Guide...
