IR LED settings for the TVC-OH3-HT housing

You can control the IR illumination of the TVC-OH3-HT housing by selecting its
brightness and when it turns on and off.
When this feature is enabled, the RS-485 is then automatically set up by the camera. A
confirmation dialog is displayed to confirm that the housing IR illumination has been
enabled and the camera automatically reboots.

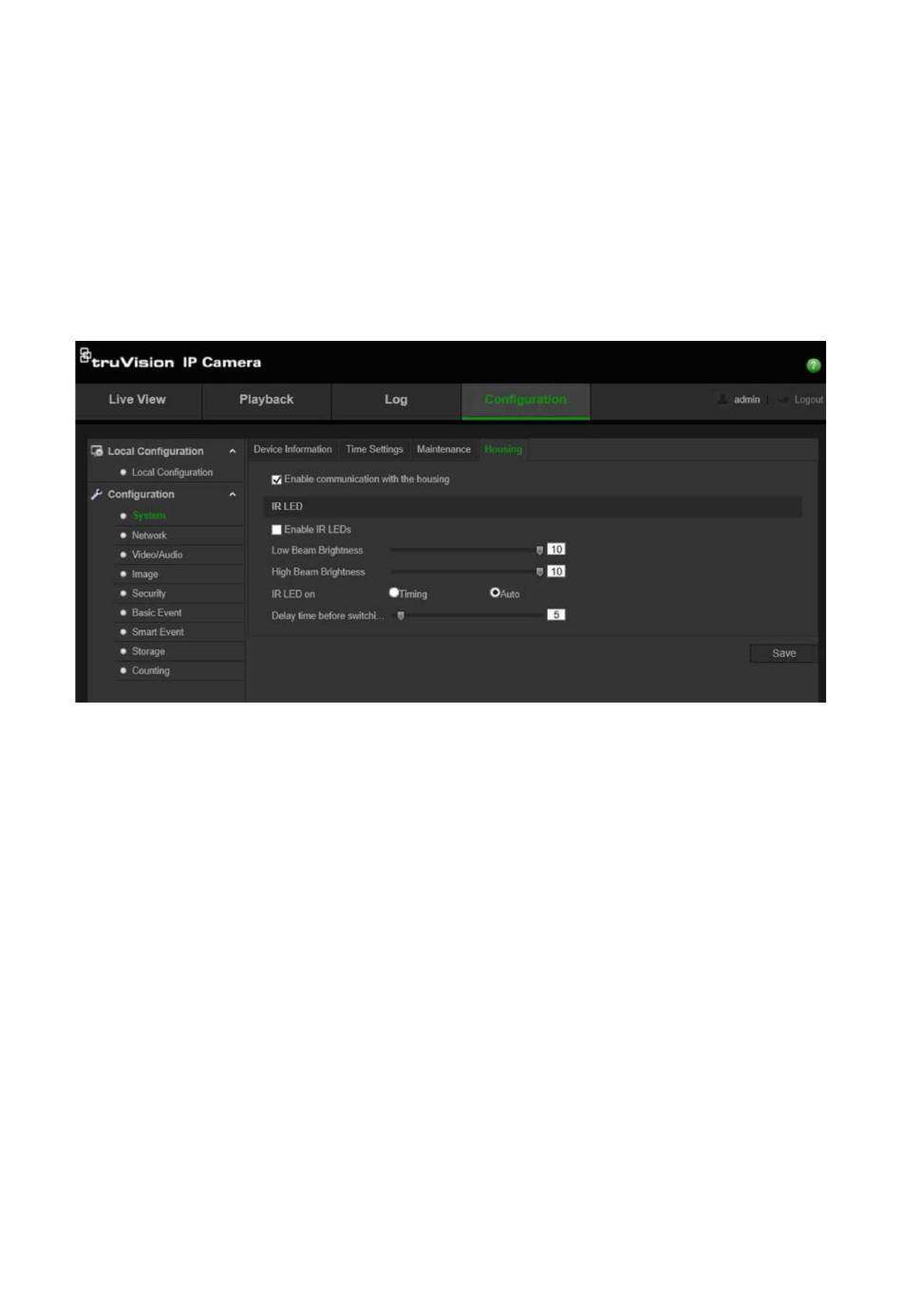

To define the IR LEDs of the TVC-OH3-HT housing:
1. From the menu toolbar, click
2. Select Enable communication with the
3. Select the Enable IR LEDs
parameters.
a. Adjust the low and high beam brightness, as required.
b. Under IR LED on:
Select Auto
filtering time to select the delay for switching the IR LEDS on/off when the light
level changes. The range is between 0 to 120 seconds.
– or –
Select Timing
4. Click Save to save changes.

Network settings

Accessing the camera through a network requires that you define certain network
settings. Use the "Network" menu to define the network settings. See Figure 4 below for
further information.
TruVision Series 4 IP Camera Configuration Manual
Configuration
check box and then configure the IR illumination
to control the IR LEDs by photoresistance and then adjust the
to set up the start and end times of when the IR LEDs turn on.
> System > Housing.
housing.
