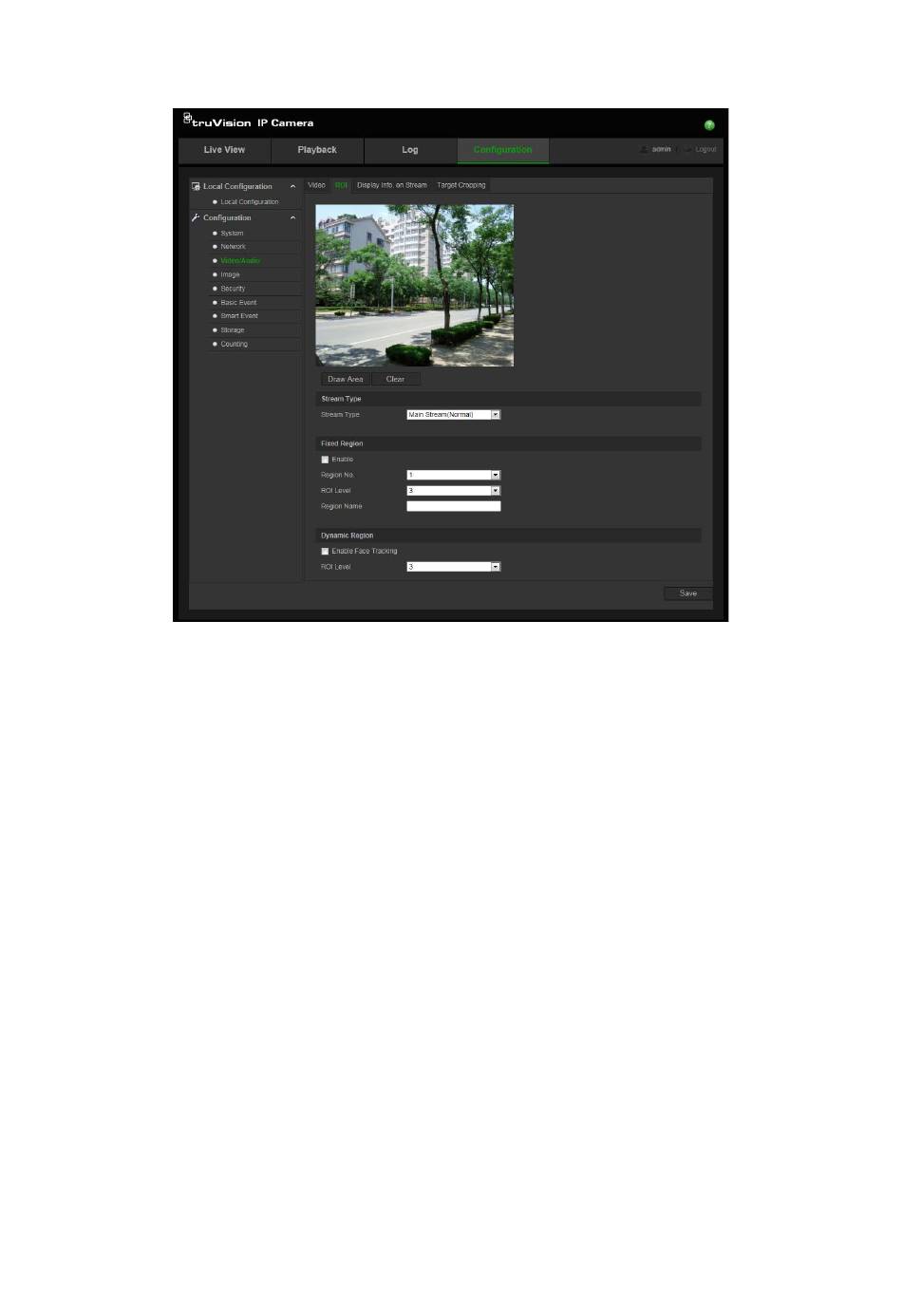

To configure ROI settings:
1. From the menu toolbar, click
2. Select the desired channel from the drop-down list.
3. Draw the region of interest on the image. Up to four regions can be drawn.
4. Choose the stream type to set the ROI encoding.
5. Enable Fixed Region
Region No.: Select the region.
ROI Level: Choose the image quality enhancing level.
Region Name: Set the desired region name.
6. Enable Dynamic Region
where faces are detected in the scene.
ROI Level: Choose the image quality enhancing level.
7. Click Save to save changes.
Dual-VCA (Video Content Analysis)
When Dual-VCA mode is enabled, the camera sends video analytics results (metadata)
to an NVR or other platforms to generate a VCA alarm.
For example, with an Interlogix NVR (please check Interlogix website for the latest NVR
models supporting this feature), you can draw a virtual line in the NVR playback
window, and search the objects or people crossing this virtual line.
Note: Only cross line and intrusion detection can support dual-VCA mode.
24
Configuration
to manually configure the area.
for face tracking. The ROI will change, depending upon
> Video/Audio > ROI.
