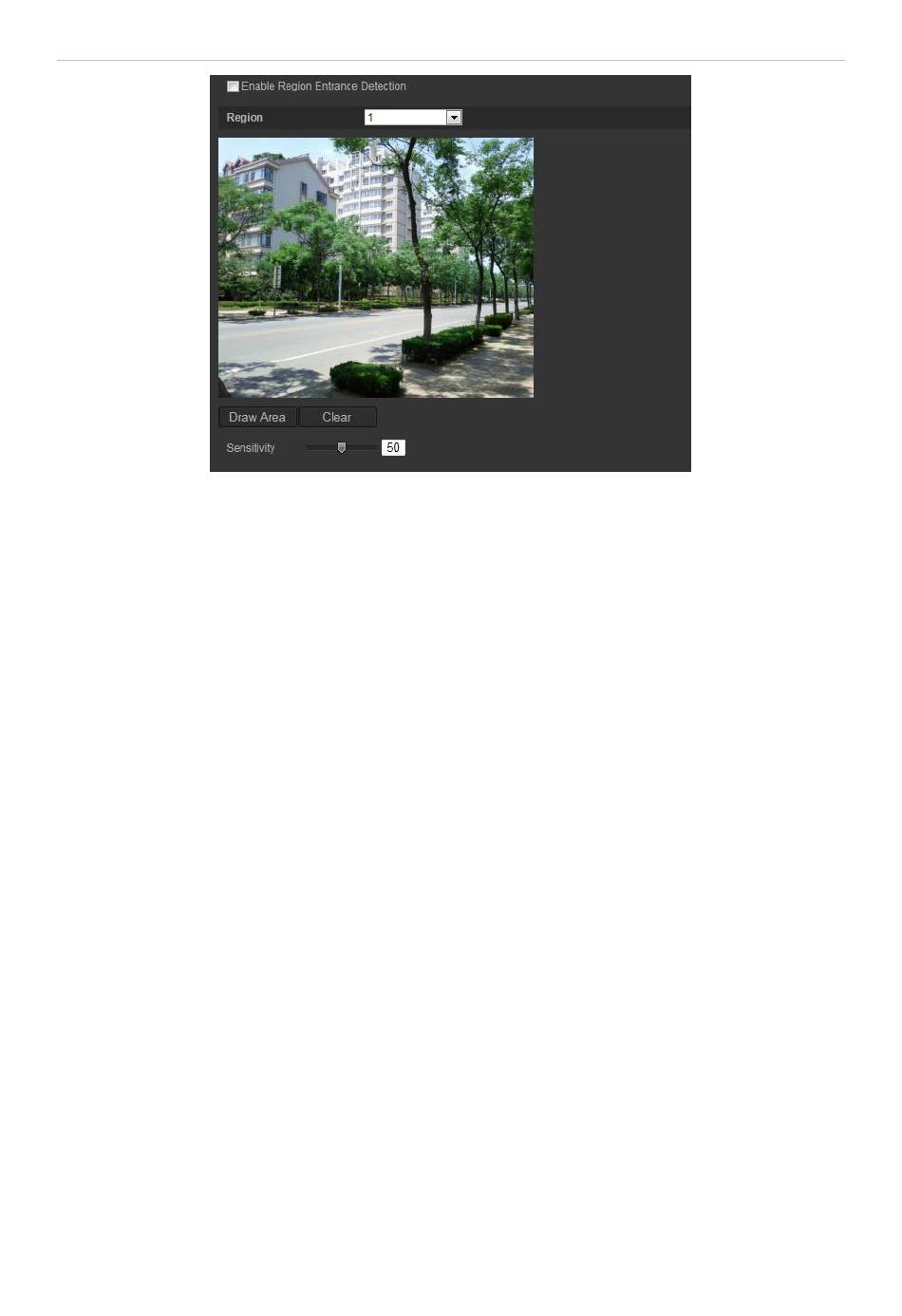

Figure 18: Region entrance detection window
To define region entrance detection:
1. From the menu toolbar, click
Detection.
2. Check the Enable Entrance Detection
3. Choose the region number to be configured.
4. Click Draw Area, and then draw a rectangle on the image as the designated region.
When you draw the rectangle, all lines should connect end-to-end to each other. Up
to four areas are supported. Click
designated region parameters can be set up separately.
Note: The area can only be quadrilateral.
5. Set the sensitivity level.
The sensitivity value defines the size of the object that can trigger the alarm. When
the sensitivity is high, a small object can trigger the alarm. The range is between 1
and 100.
6. Click Edit to set the arming schedule for the alarm input. See "Motion detection
alarms" on page 32 for more information.
7. Specify the linkage method when an event occurs. Check one or more response
methods for the system when an intrusion detection alarm is triggered.
52
Configuration > Smart Event
checkbox to enable the function.
Clear to clear the areas you have drawn. The
> Region Entrance
