Chapter 1: Product Introduction

Knowing Your NSA 7136

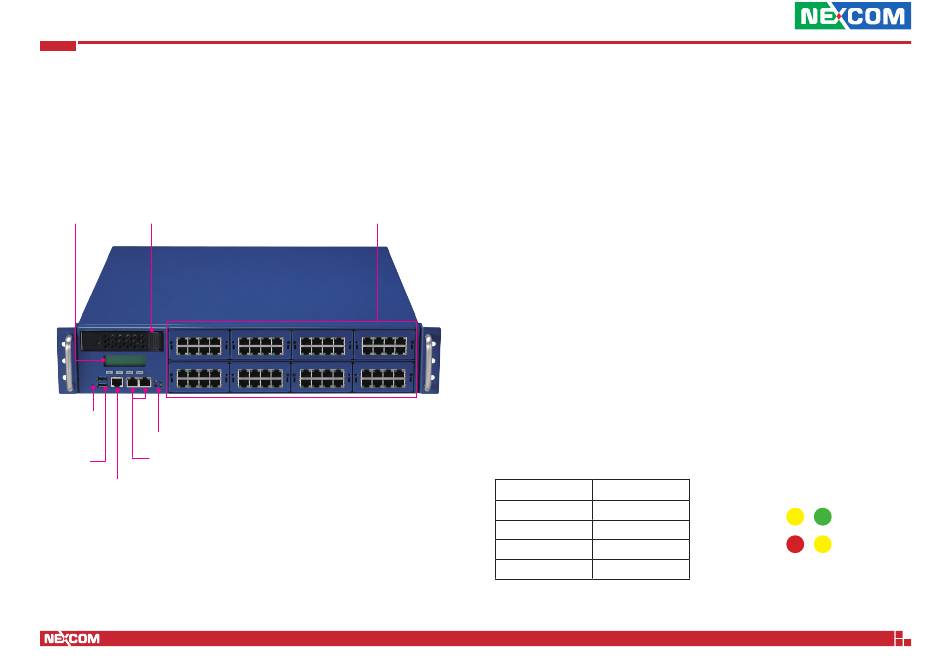

Front Panel

LCD
HDD bay
Reset
button
LED indicators
USB
Management LAN
ports
RJ45 type
console port
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
LCD
2x20 characters LCD module, SIO interface.
HDD Bay
One 3.5" HDD swappable bay for installing a HDD.
LAN Modules
Eight LAN module bays.
LAN modules
Reset Button
Press to restart the system.
USB Ports
Used to connect USB 2.0/1.1 devices.
Console Port
Used to connect RJ45 type console port.
Management LAN Ports
Two LAN ports used for managing the system.
LED Indicators
Indicates the power, hard drive and GPIO activity of the system.
System Failure
3
LED
Color
Power
Green
HDD
Yellow
Red
GPIO
Yellow
GPIO
Power LED
System Failure
HDD LED
