Chapter 3: System Setup

Installing a LAN Module

The system is equipped with 8 LAN module bays. To install a LAN module,
please follow the instructions below.
Please correctly follow the below instructions and noted items
to avoid making unnecessary damages. Make sure the power
supply is switched off and disconnected from the power sources
CAUTION! CAUTION! CAUTION!
before replacing or adding LAN modules to prevent electric
shock or system damage.
1. Remove the screw on the LAN module then put them in a safe place for
later use.
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.

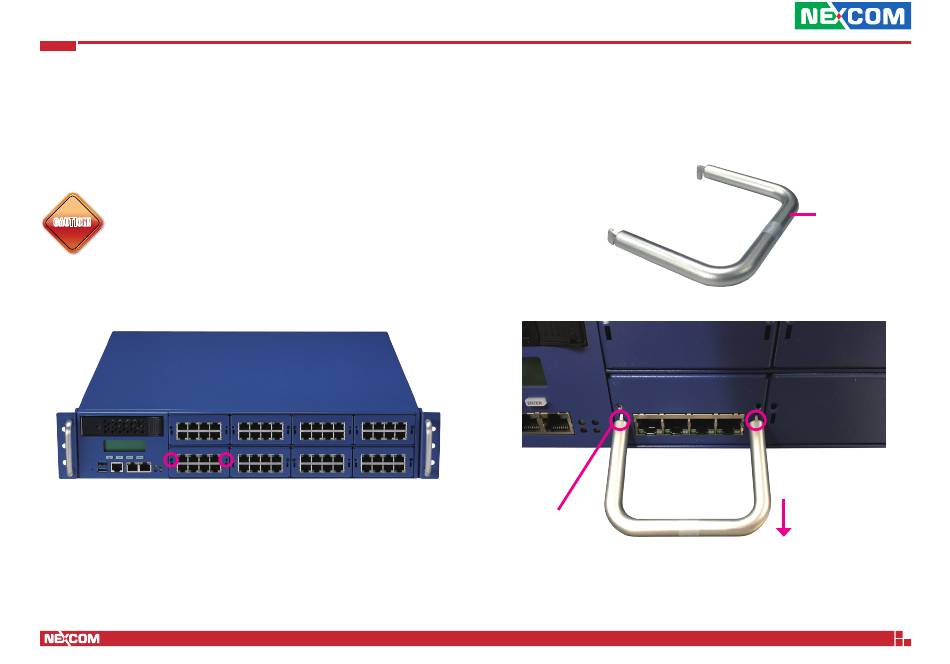

2. Use the handle provided, and insert the handle into the two holes on the
LAN module.
Insert here
3. Once the handle is firmly secured in position, pull the handle outwards to
remove the LAN module bay.
23
Handle
NSA 7136 User Manual
