Chapter 2: Jumpers and Connectors

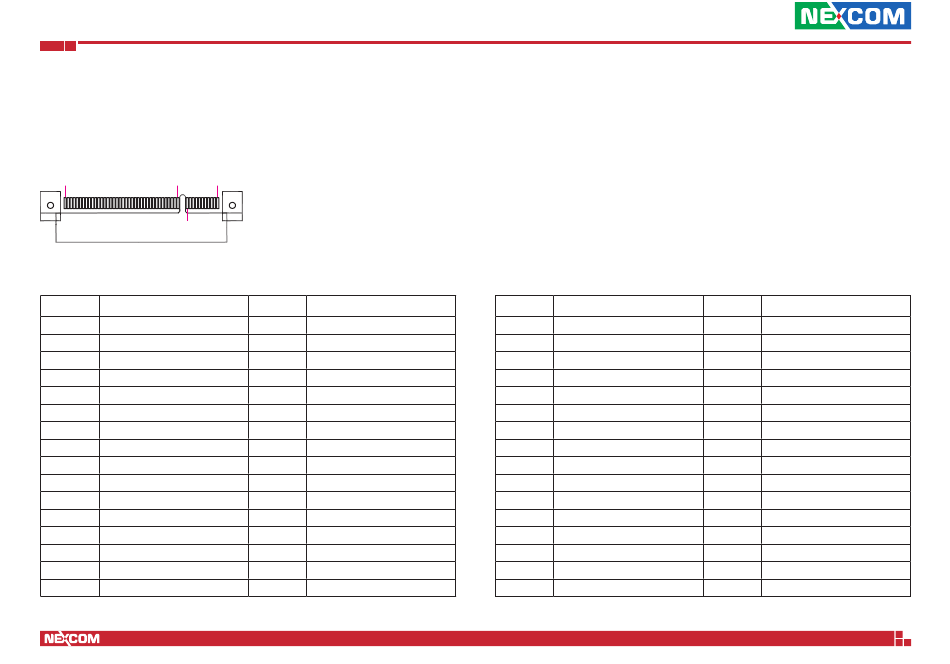

PCIe Slots

Connector location: JP15, JP16, JP17 and JP18
A49/B49
A12/B12
A1/B1
A11/B11
Pin
Definition
A1
GND
A2
12V
A3
12V
A4
GND
A5
NC
A6
NC
A7
NC
A8
NC
A9
3.3V
A10
3.3V
A11
PRSNT#
A12
GND
A13
CLK_P
A14
CLK_N
A15
GND
A16
RX0P
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
B1
12V
B2
12V
B3
12V
B4
GND
B5
SMBCLK
B6
SMBDATA
B7
GND
B8
3.3V
B9
NC
B10
P3V3AUX
B11
WAKE#
B12
BYPASS GATE Enable
B13
GND
B14
TX0P
B15
TX0N
B16
GND
Pin
Definition
A17
RX0N
A18
GND
A19
BYPASS_A Enable
A20
GND
A21
RX1P
A22
RX1N
A23
GND
A24
GND
A25
RX2P
A26
RX2N
A27
GND
A28
GND
A29
RX3P
A30
RX3N
A31
GND
A32
BYPASS_C Enable
17
Pin
Definition
B17
NC
B18
GND
B19
TX1P
B20
TX1N
B21
GND
B22
GND
B23
TX2P
B24
TX2N
B25
GND
B26
GND
B27
TX3P
B28
TX3N
B29
GND
B30
BYPASS_B Enable
B31
NC
B32
GND
