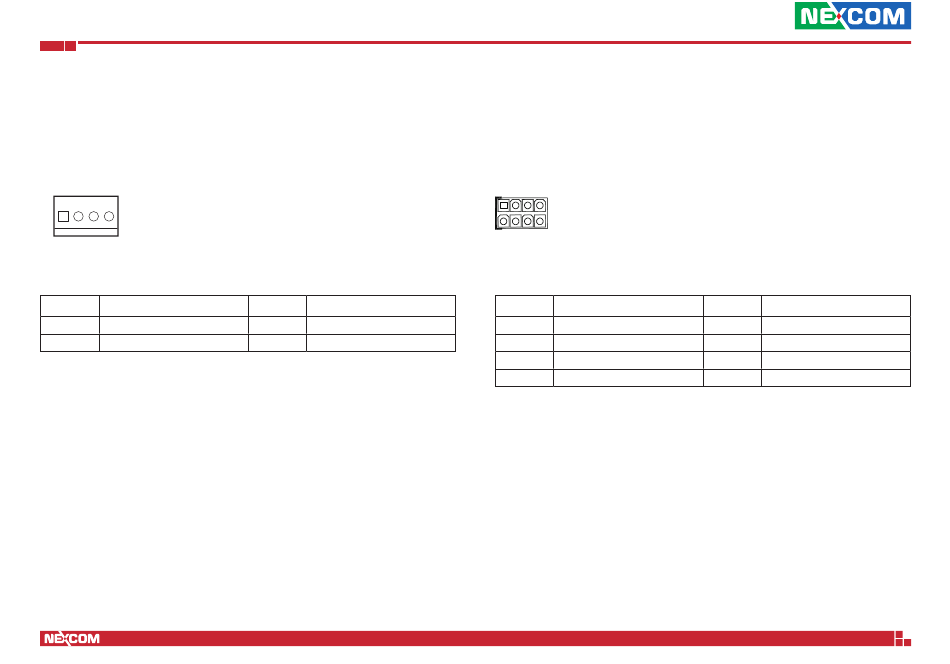

Chapter 2: Jumpers and Connectors
Fan Headers
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: FAN1 and FAN2
1
4
Pin
Definition
1
GND
3
FAN_TACH
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
P12V
4
FAN_PWM
ATX Connector
Connector type: 2x4 8-pin header, 4.2mm pitch
Connector location: CON1
1
4
5
8
Pin
Definition
1
GND
3
GND
5
12V
7
12V
15
Pin
Definition
2
GND
4
GND
6
12V
8
12V
NSA 7136 User Manual
