Dual Channel Module Panel - ITech IT8700P+ Series User Manual

Realize short testing, allows the load to simulate a short-circuit at the input
Short Short
Switch the work mode
Mode Mode
Move the cursor position. Press
to edit, and then use the rotary knob to adjust value.
Tran Tran
Select the transient mode, press
running A/B transient operation, and then send the triggering signal to run program.
Control module's input state: on/off
On/Off On/Off
Rotary knob, used to change the setting parameter values
3. Module's air inlet
4. Input terminal of module

3.2.2 Dual channel module panel

Dual channel module means a module have two channels. Each channel is
isolated with the other. Setting of the module keyboard can control two
channels. The left cannel is channel L, the right channel is channel R.

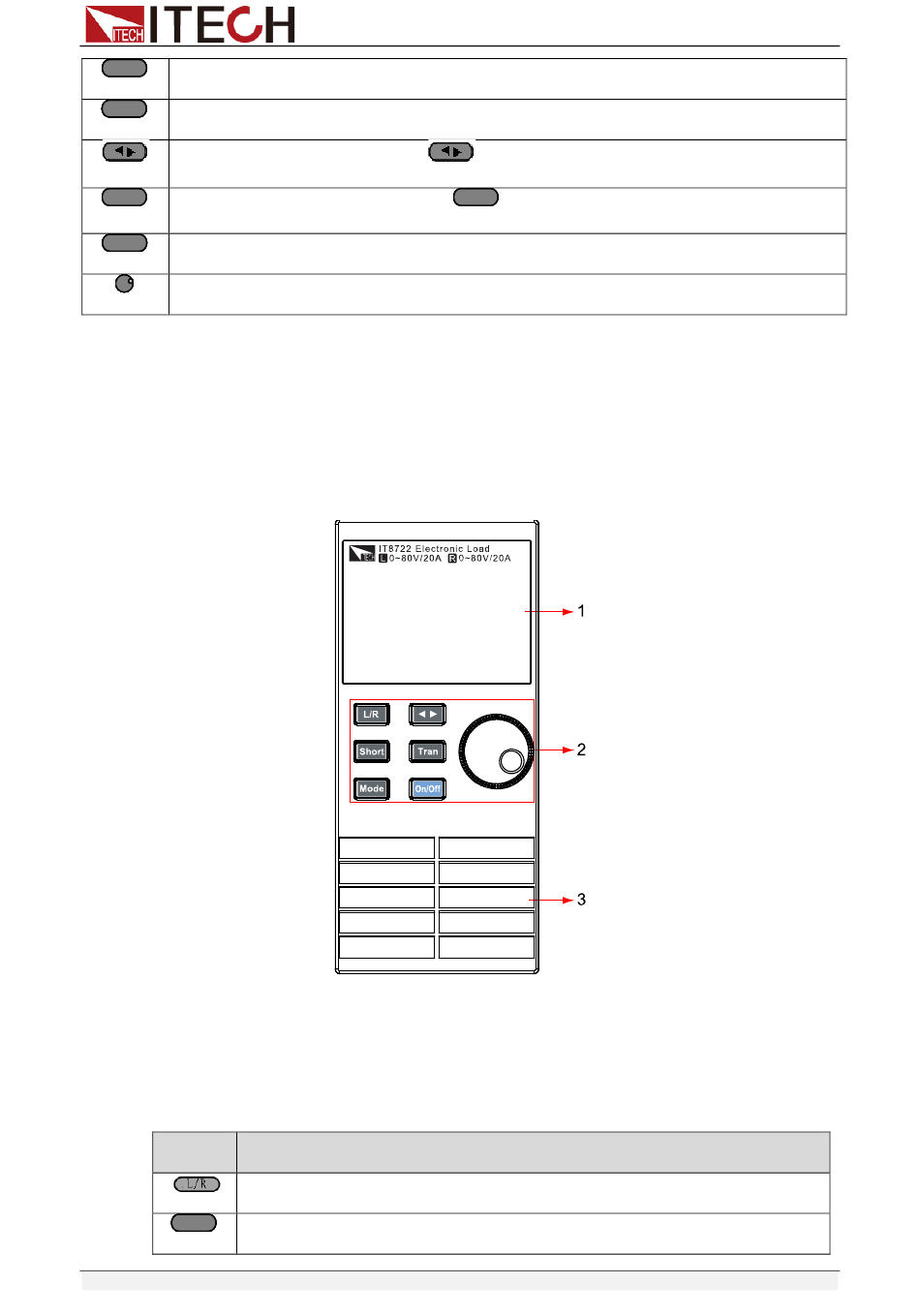

Fig 3-3 dual-channel module front panel
1. Module's panel view：highlight VFD which display the working state,
upper display voltage and current information for channel L; lower displays
information for channel R.
2. Module's panel keyboard：
Button
Switch the left/right channels.
Realize short testing, allows the load to simulate a short-circuit at the input
Short Short
key to move the cursor to the position you want
Tran Tran
key first to enable transient mode before
Description
Copyright © Itech Electronic Co., Ltd.
Panel function introduction
