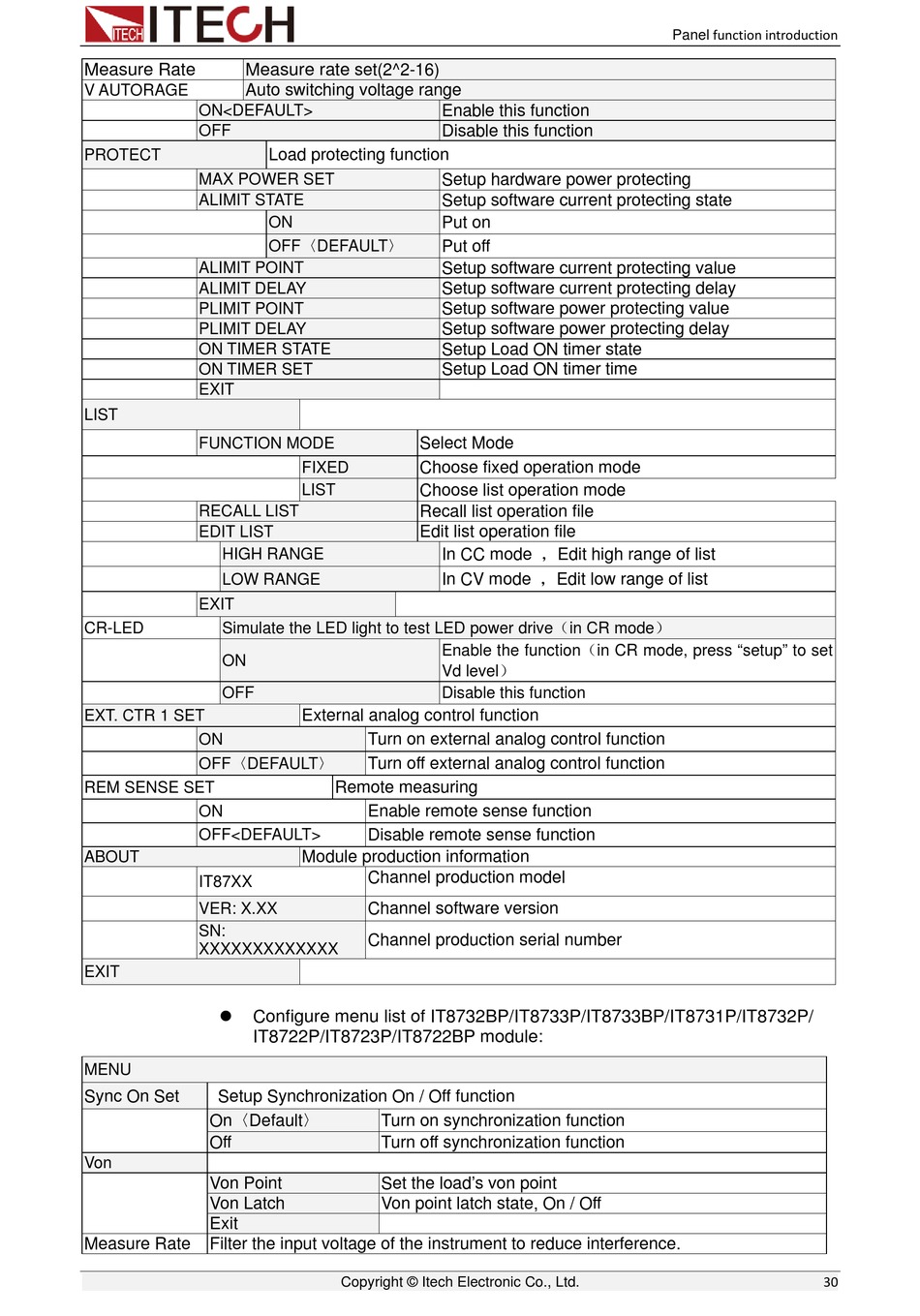

ITech IT8700P+ Series User Manual page 39

Measure Rate Measure rate set(2^2-16)
V AUTORAGE Auto switching voltage range
ON<DEFAULT>
OFF
PROTECT
MAX POWER SET
ALIMIT STATE
ALIMIT POINT
ALIMIT DELAY
PLIMIT POINT
PLIMIT DELAY
ON TIMER STATE
ON TIMER SET
EXIT
LIST
FUNCTION MODE
RECALL LIST
EDIT LIST
HIGH RANGE
LOW RANGE
EXIT
CR-LED Simulate the LED light to test LED power drive（in CR mode）
ON
OFF
EXT. CTR 1 SET
ON
OFF〈DEFAULT〉
REM SENSE SET
ON
OFF<DEFAULT>
ABOUT
IT87XX
VER: X.XX
SN:
XXXXXXXXXXXXX
EXIT

Configure menu list of IT8732BP/IT8733P/IT8733BP/IT8731P/IT8732P/
IT8722P/IT8723P/IT8722BP module:
MENU
Sync On Set Setup Synchronization On / Off function
On〈Default〉
Off
Von
Von Point
Von Latch
Exit
Measure Rate Filter the input voltage of the instrument to reduce interference.
Enable this function
Disable this function
Load protecting function
Setup hardware power protecting
Setup software current protecting state
Put on
ON
OFF〈DEFAULT〉 Put off
Setup software current protecting value
Setup software current protecting delay
Setup software power protecting value
Setup software power protecting delay
Setup Load ON timer state
Setup Load ON timer time
Select Mode
Choose fixed operation mode
FIXED
LIST Choose list operation mode
Recall list operation file
Edit list operation file
In CC mode ，Edit high range of list
In CV mode ，Edit low range of list
Enable the function（in CR mode, press "setup" to set
Vd level）
Disable this function
External analog control function
Turn on external analog control function
Turn off external analog control function
Remote measuring
Enable remote sense function
Disable remote sense function
Module production information
Channel production model
Channel software version
Channel production serial number
Turn on synchronization function
Turn off synchronization function
Set the load's von point
Von point latch state, On / Off
Copyright © Itech Electronic Co., Ltd.
Panel function introduction
30
