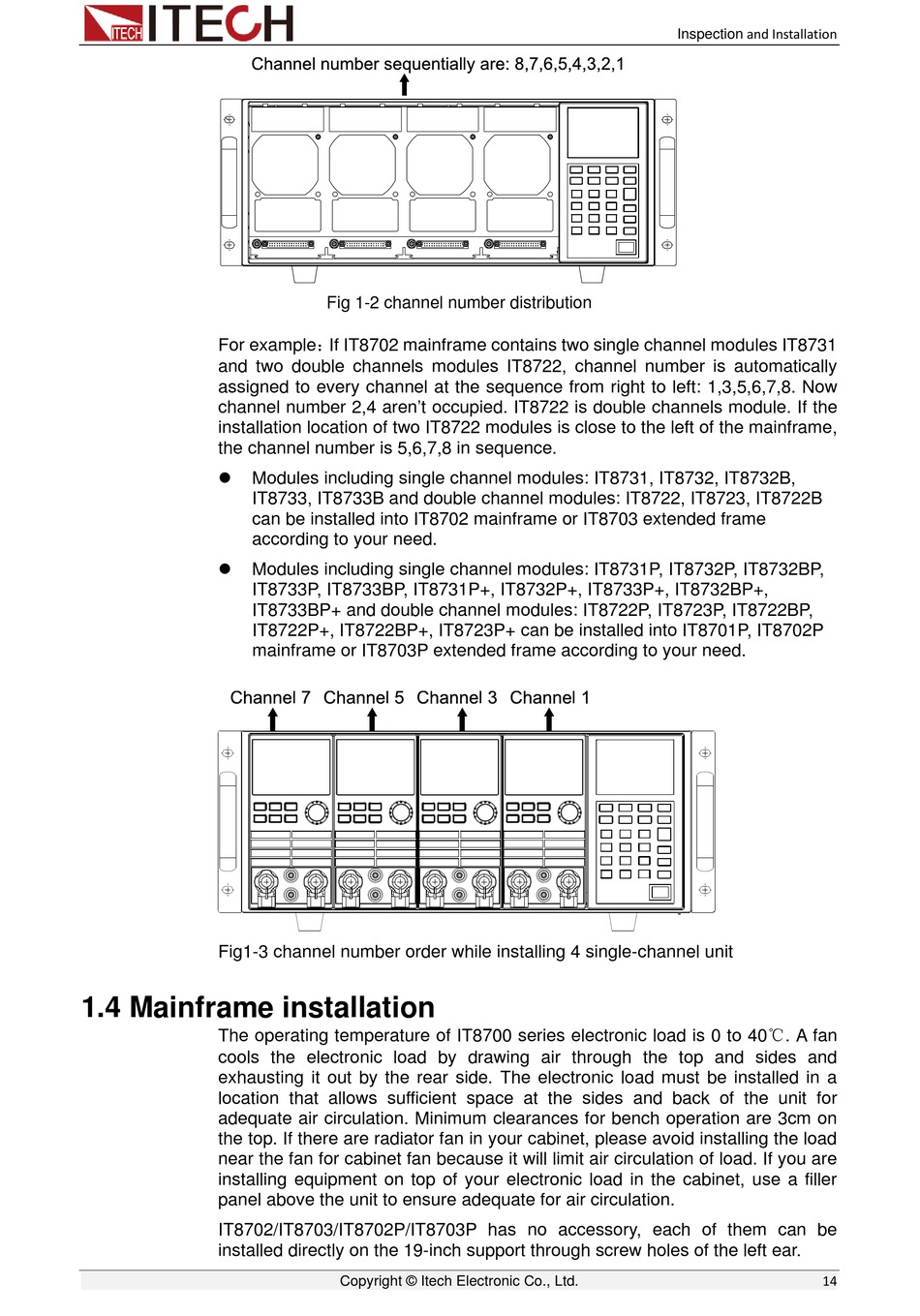

For example： If IT8702 mainframe contains two single channel modules IT8731
and two double channels modules IT8722, channel number is automatically
assigned to every channel at the sequence from right to left: 1,3,5,6,7,8. Now
channel number 2,4 aren't occupied. IT8722 is double channels module. If the
installation location of two IT8722 modules is close to the left of the mainframe,
the channel number is 5,6,7,8 in sequence.

Modules including single channel modules: IT8731, IT8732, IT8732B,
IT8733, IT8733B and double channel modules: IT8722, IT8723, IT8722B
can be installed into IT8702 mainframe or IT8703 extended frame
according to your need.

Modules including single channel modules: IT8731P, IT8732P, IT8732BP,
IT8733P, IT8733BP, IT8731P+, IT8732P+, IT8733P+, IT8732BP+,
IT8733BP+ and double channel modules: IT8722P, IT8723P, IT8722BP,
IT8722P+, IT8722BP+, IT8723P+ can be installed into IT8701P, IT8702P
mainframe or IT8703P extended frame according to your need.
Fig1-3 channel number order while installing 4 single-channel unit

1.4 Mainframe installation

The operating temperature of IT8700 series electronic load is 0 to 40℃. A fan
cools the electronic load by drawing air through the top and sides and
exhausting it out by the rear side. The electronic load must be installed in a
location that allows sufficient space at the sides and back of the unit for
adequate air circulation. Minimum clearances for bench operation are 3cm on
the top. If there are radiator fan in your cabinet, please avoid installing the load
near the fan for cabinet fan because it will limit air circulation of load. If you are
installing equipment on top of your electronic load in the cabinet, use a filler
panel above the unit to ensure adequate for air circulation.
IT8702/IT8703/IT8702P/IT8703P has no accessory, each of them can be
installed directly on the 19-inch support through screw holes of the left ear.
Fig 1-2 channel number distribution
