This chapter introduces the front panel and the rear panel of the electronic load,
make sure that you can quickly know the appearance, instruction and the key
function before you operate the load, Help you make better use of this series of
electronic load.

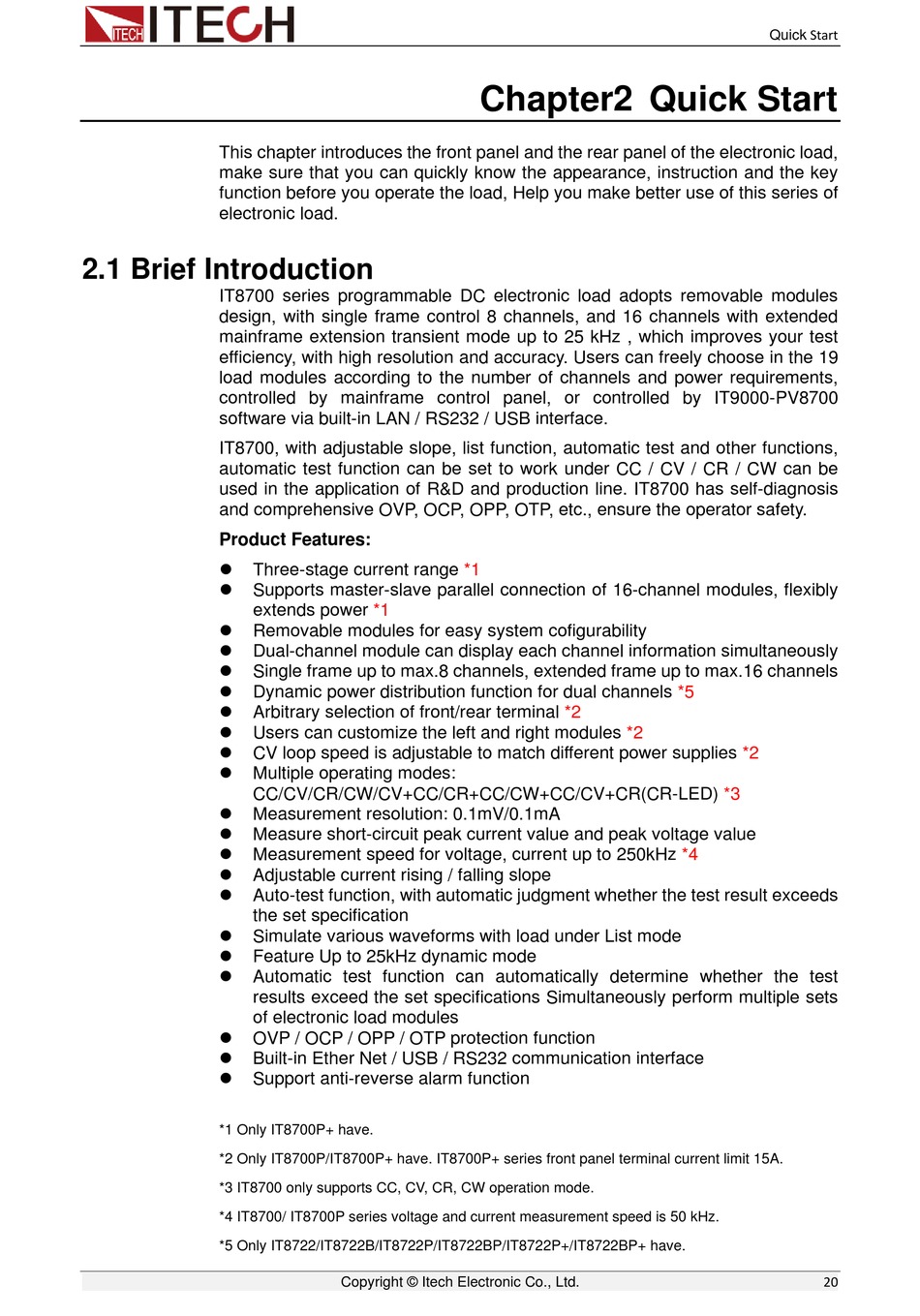

2.1 Brief Introduction

IT8700 series programmable DC electronic load adopts removable modules
design, with single frame control 8 channels, and 16 channels with extended
mainframe extension transient mode up to 25 kHz , which improves your test
efficiency, with high resolution and accuracy. Users can freely choose in the 19
load modules according to the number of channels and power requirements,
controlled by mainframe control panel, or controlled by IT9000-PV8700
software via built-in LAN / RS232 / USB interface.
IT8700, with adjustable slope, list function, automatic test and other functions,
automatic test function can be set to work under CC / CV / CR / CW can be
used in the application of R&D and production line. IT8700 has self-diagnosis
and comprehensive OVP, OCP, OPP, OTP, etc., ensure the operator safety.
Product Features:
Three-stage current range
Supports master-slave parallel connection of 16-channel modules, flexibly
extends power
Removable modules for easy system cofigurability
Dual-channel module can display each channel information simultaneously
Single frame up to max.8 channels, extended frame up to max.16 channels
Dynamic power distribution function for dual channels
Arbitrary selection of front/rear terminal
Users can customize the left and right modules
CV loop speed is adjustable to match different power supplies
Multiple operating modes:
CC/CV/CR/CW/CV+CC/CR+CC/CW+CC/CV+CR(CR-LED)
Measurement resolution: 0.1mV/0.1mA
Measure short-circuit peak current value and peak voltage value
Measurement speed for voltage, current up to 250kHz
Adjustable current rising / falling slope
Auto-test function, with automatic judgment whether the test result exceeds
the set specification
Simulate various waveforms with load under List mode
Feature Up to 25kHz dynamic mode
Automatic test function can automatically determine whether the test
results exceed the set specifications Simultaneously perform multiple sets
of electronic load modules
OVP / OCP / OPP / OTP protection function
Built-in Ether Net / USB / RS232 communication interface
Support anti-reverse alarm function
*1 Only IT8700P+ have.
*2 Only IT8700P/IT8700P+ have. IT8700P+ series front panel terminal current limit 15A.
*3 IT8700 only supports CC, CV, CR, CW operation mode.
*4 IT8700/ IT8700P series voltage and current measurement speed is 50 kHz.
*5 Only IT8722/IT8722B/IT8722P/IT8722BP/IT8722P+/IT8722BP+ have.
