and modules. The frames mentioned are IT8702/IT8701P/IT8702P mainframe
and IT8703/IT8703P extended frame. The modules mentioned are divided into
two kinds: single channel module and double channels module. Each module
should be installed into frame to work. The range of every module's specific
voltage, current and power will be introduced in the Chapter 5: specifications in
detail.

Single channel module: IT8731/IT8732/IT8732B/IT8733/IT8733B/IT8731P/
IT8732P/IT8732BP/IT8733P/IT8733BP/IT8731P+/IT8732P+/IT8733P+/IT8
732BP+//IT8733BP+

Double channels module: IT8722/IT8723/IT8722B/IT8722P/IT8723P/
IT8722BP/IT8723P+/IT8722P+/IT8722BP+
There are up to 4 channels in IT8701P mainframe. After extended with IT8703
or IT8703P mainframe, it can be up to 12 channels. The dimension of IT8702 is
the same with IT8703. The difference is that IT8702/IT8701P/IT8702P are main
control frame while IT8703/IT8703P is an extended unit. There are up to 8
channels in IT8702/IT8702P mainframe. After extended with IT8703 or IT8703P
mainframe, it can be up to 16 channels. All panel operation and programming
are also carried on the IT8702/IT8701P /IT8702P main panel.
One module could have one or two channels, each module will have its own
channel number according to the slot position. In the case of IT8702 mainframe,
there are 4 slot locations and each slot location has 2 channels, thus there are
8 channels in total and the channel number ranges from right to left in
sequence. if each slot has one channel, then the channel number from right to
left should be:1
channels, the channel number should be:1th and 2th channels,3th and 4
channels,5
understood in the same way.

2.3 Front Pannel Introduction

There're two parts in front panel, which are main panel and module panel.
Refer to figure 2-1. Main panel and module panel keys' function will be
introduced below.

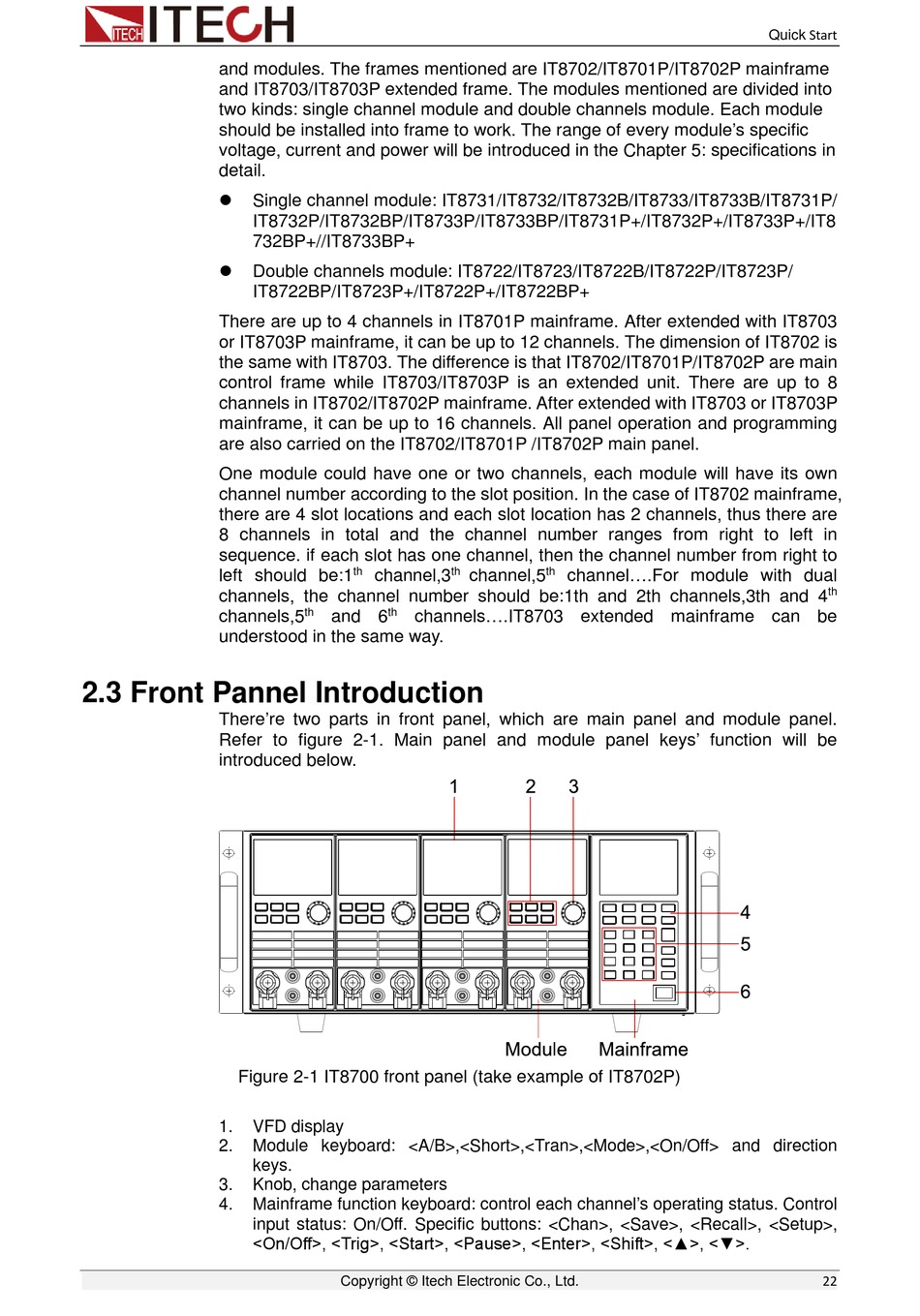

Figure 2-1 IT8700 front panel (take example of IT8702P)
1. VFD display
2. Module keyboard: <A/B>,<Short>,<Tran>,<Mode>,<On/Off> and direction
keys.
3. Knob, change parameters
4. Mainframe function keyboard: control each channel's operating status. Control
input status: On/Off . Specific buttons: <Chan>, <Save>, <Recall>, <Setup>,
<On/Off>, <Trig>, <Start>, <Pause>, <Enter>, <Shift>, <▲>, <▼>.
th th
channel,3 channel,5
th th
and 6 channels....IT8703 extended mainframe can be
Copyright © Itech Electronic Co., Ltd.
th
channel....For module with dual
Quick Start
th
