5.
Mainframe compound button((numeric keys):1.set parameters 2.assembled
menu function. detailed buttons:<1>,<2>,<3>,<4> plus function keys to enter
the system menu,<5> plus function keys to enter the config menu, <6> plus
function keys to enter program menu,<7> plus function keys to select local
operation,<8> plus function keys to select lock function, <9>, <0>,<.>, <Esc>.
6.
Power switch ON/OFF
2.4

Rear panel description

The part introduces the location of terminals and interfaces on the rear panel.
Refer to figure 2-2 for more details.
Current monitoring terminal
1.
2.
Remote sense and external input control terminal
3.
Digital I/O and VF output signal terminal
4.
Power input socket ( fuse contained )
5.
Extended module interface
6.
USB communication cable interface
7.
Input voltage level switch(110V/220V)
8.
Trigger input /output and ON/OFF input/output interface
Network interface
9.
10.
9-pin COM port interface connector(RS232 communication cable interface)
9-pin COM serial port connector(extended keyboard interface )
11.
12.
GPIB interface(Only for IT8700(G) series.)
13. Positive input terminal of module (if module is dual-channel, there is one
positive terminal and one negative terminal)
14. Negative input terminal of module (if module is dual-channel, there is one
positive terminal and one negative terminal)

2.5 Power-on Selftest

A successful test process indicates that the instrument meets the factory
specifications and can be operated well. Before operation, please confirm that
you have fully understood the safety instructions.
To avoid burning out, be sure to confirm that power voltage matches with
supply voltage.
Be sure to connect the main power socket to the power outlet of protective
grounding. Do not use terminal board without protective grounding. Before
operation, be sure that the power supply is well grounded.
To avoid burning out, pay attention to marks of positive and negative
polarities before wiring.

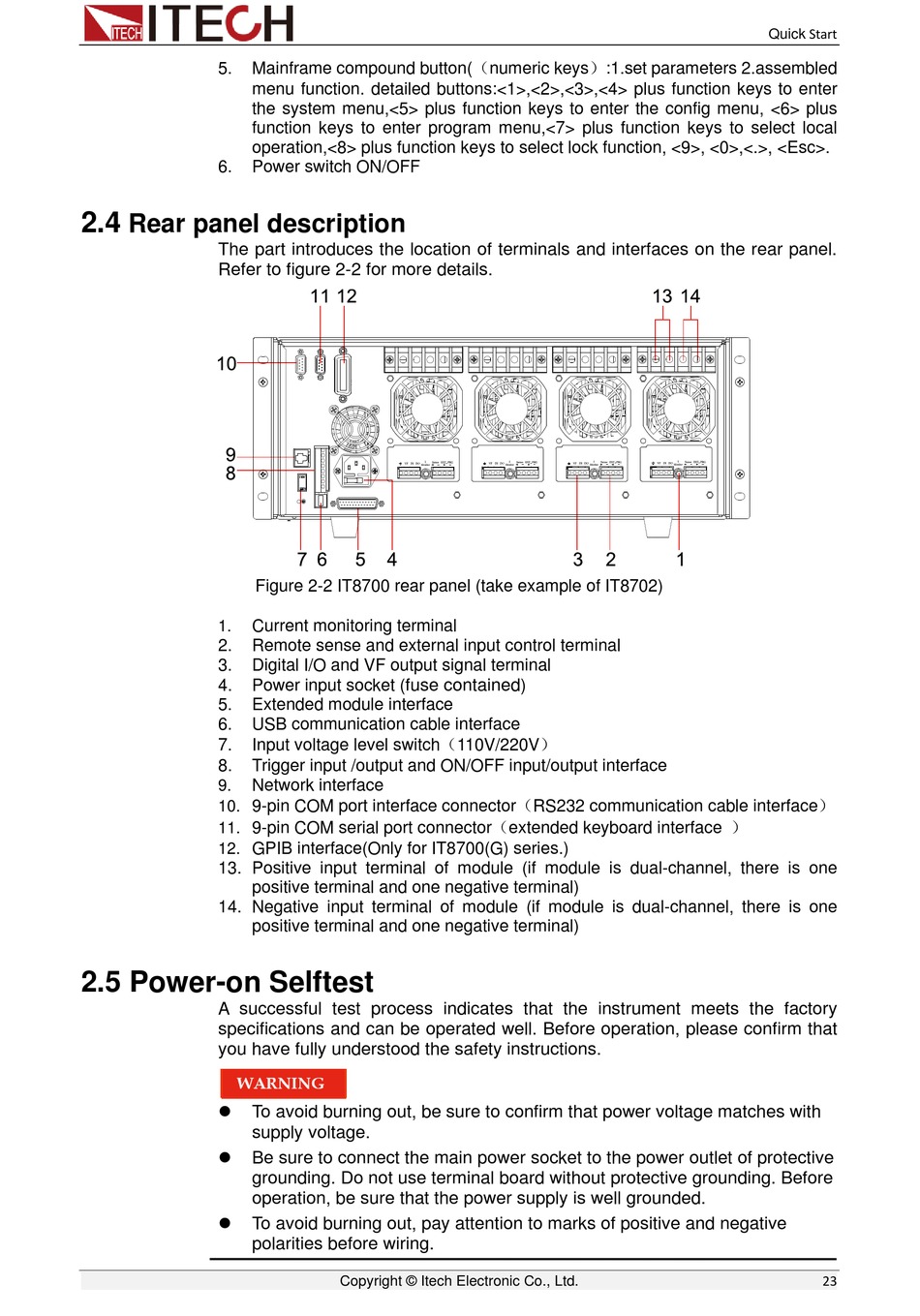

Figure 2-2 IT8700 rear panel (take example of IT8702)
