1.
Before connecting the DUT, be sure that the Mainframe Power is in Off
position.
2.
Use armored twisted-pair cables to connect the remote sense
terminals and the equipment under test.
3.
Loosen the screws of the input terminals and connect the red and
black test cables to the input terminals. Re-tighten the screws.
4.
Connect the other end of the remote sense cables and the red and
black cables to the DUT.
Note
Only the IT8731P/IT8732P/IT8732BP/IT8733P/IT8733BP/IT8722P/IT8723P/IT8722BP/
IT8731P+/IT8732P+/IT8733P+/IT8732BP+/IT8733BP+/IT8722P+/IT8722BP+/IT8723P+ modules
support front panel terminal wiring.

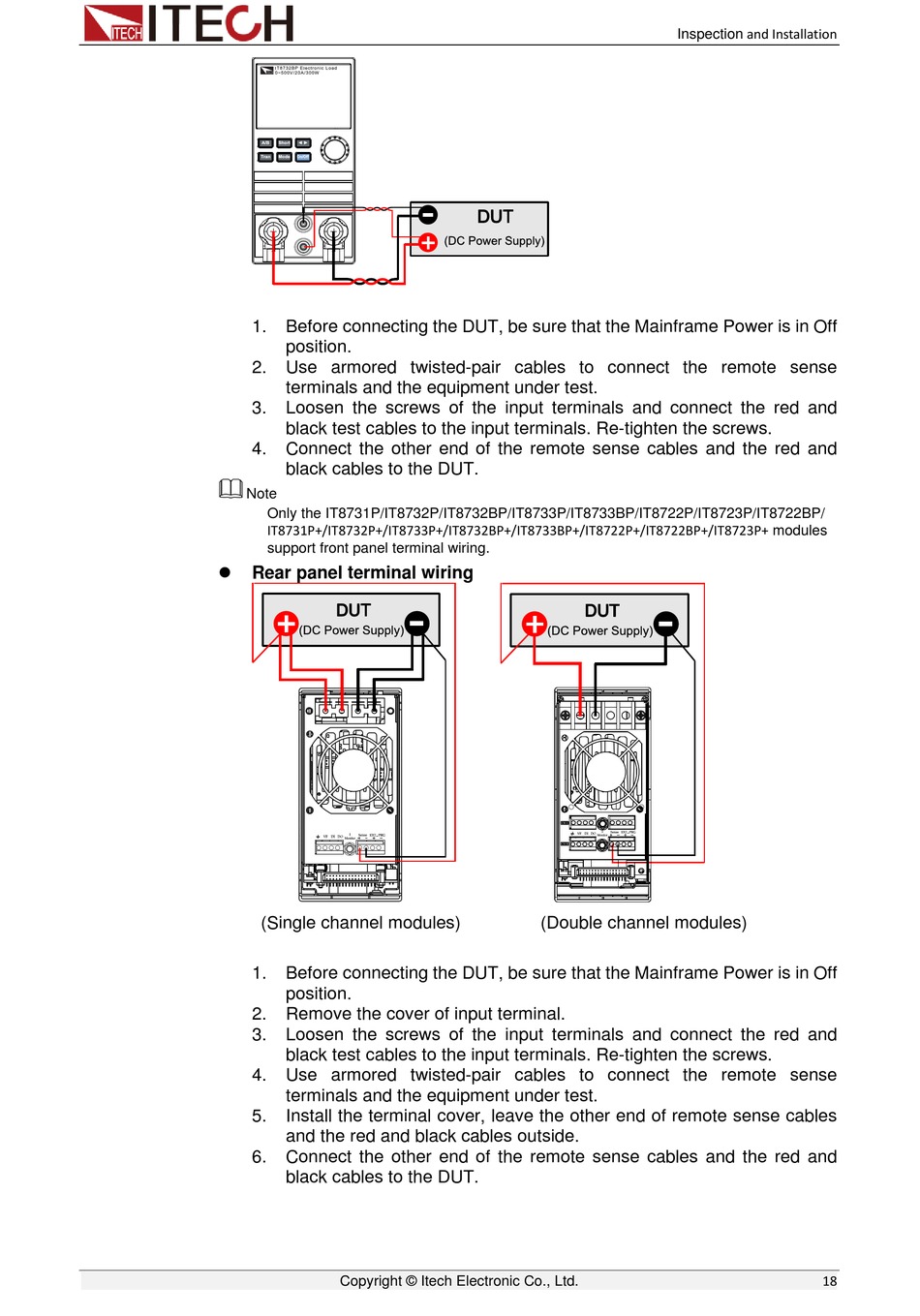

Rear panel terminal wiring
(Single channel modules)
1.
Before connecting the DUT, be sure that the Mainframe Power is in Off
position.
2.
Remove the cover of input terminal.
3.
Loosen the screws of the input terminals and connect the red and
black test cables to the input terminals. Re-tighten the screws.
4.
Use armored twisted-pair cables to connect the remote sense
terminals and the equipment under test.
5.
Install the terminal cover, leave the other end of remote sense cables
and the red and black cables outside.
6.
Connect the other end of the remote sense cables and the red and
black cables to the DUT.
Copyright © Itech Electronic Co., Ltd.
Inspection and Installation
(Double channel modules)
18
