Operation guide | iSave 40

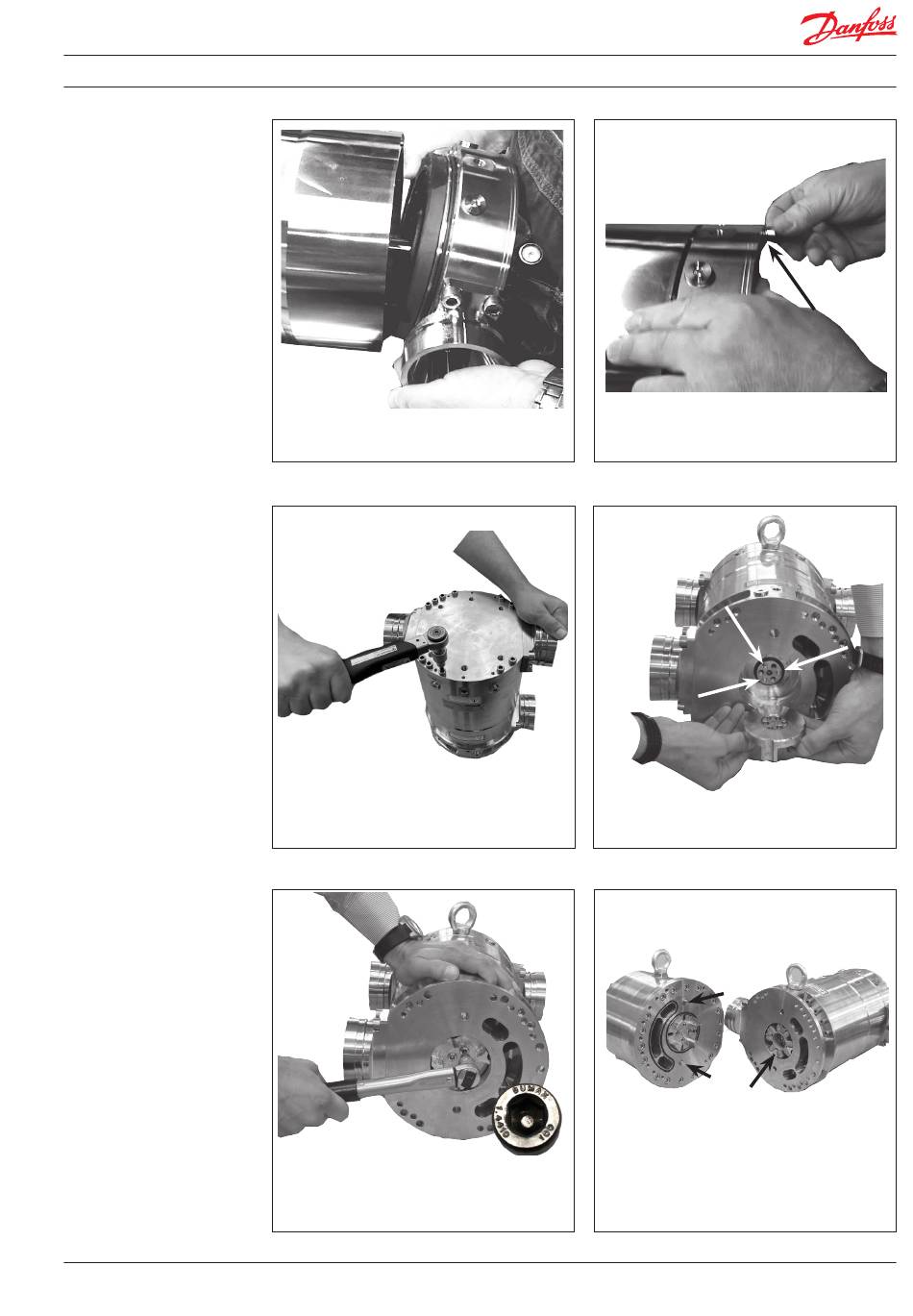

11. Carefully position the flange assembly
onto the guide pin in the casing.
13. Lubricate and install the bolts. Cross
tighten with torque according to the
setting specified in the exploded view.
3 x special M8x20 bolts marked
1.4410
15. Place the wedge lock washers on the
three screws and tighten four special
M8x20 bolts marked 1.4410 to the
torque specified in the exploded view.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
12. Carefully assemble a bolt into the casing
to ensure that flange assembly stays in
place.
14. Mount the 3 pins in shaft and place the
coupling part.
16. Assemble booster pump and pressure
exchanger. Mount the two guide pins
the O-ring and the polymer coupling
element.
