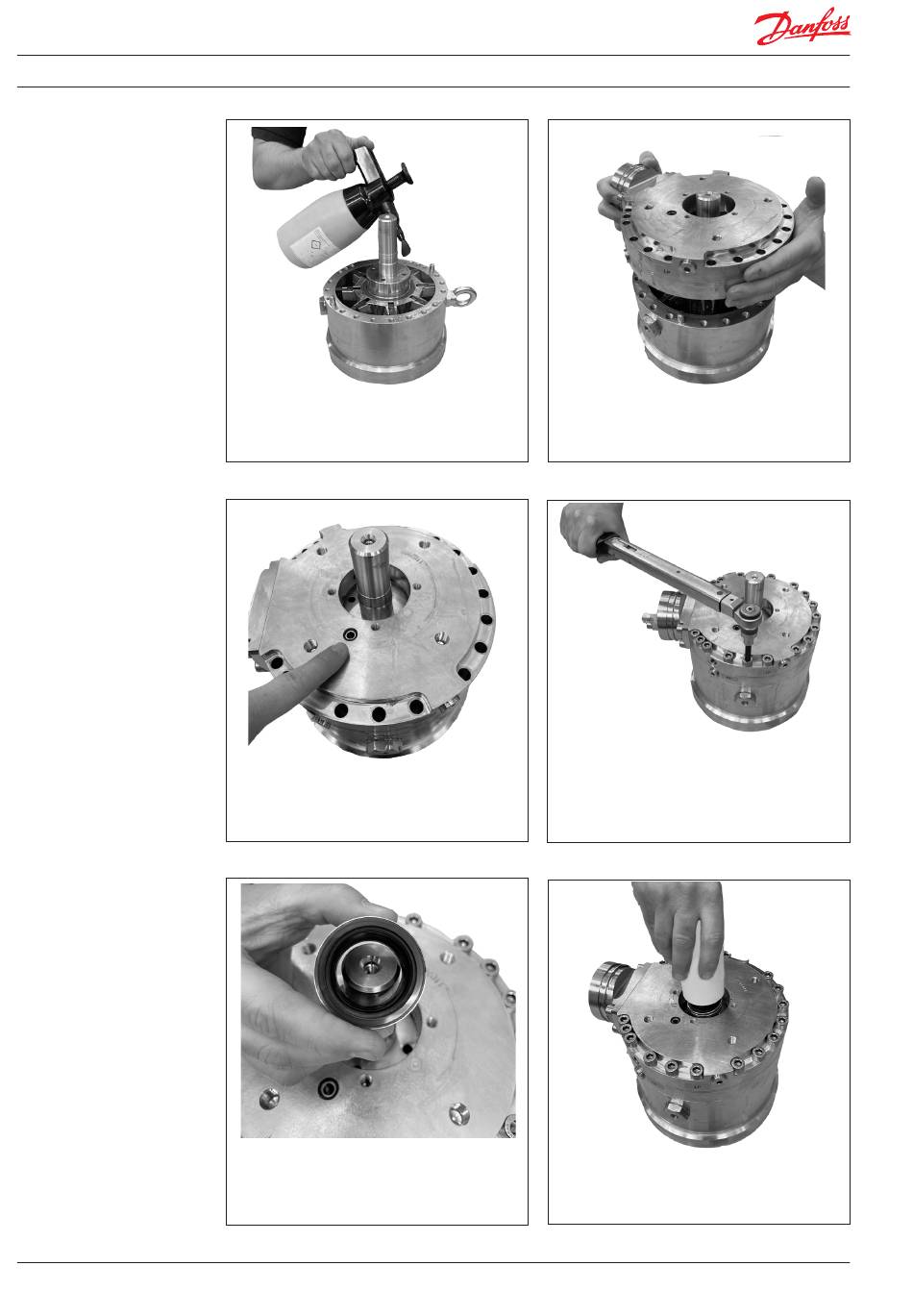

29. Lubricate the surfaces with water and
carefully lower the flange on the
stator.
31. Install the small O-ring seal for the
shaftseal cover.
33. Lubricate the shaft seal with clean
filtered water and mount the shaft
seal over the shaft end with the
carbon ring upwards.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
30. The pins ensures correct orientation
of the housing.
32. Cross tighten the screws (max. 10 Nm)
to ensure the motor flanges are
tightened evenly onto the stator, then
cross tighten with torque setting
indicated in the explode view.
34. Press down the shaft seal to the
shoulder/recess of the shaft using the
plastic press bush tool.
