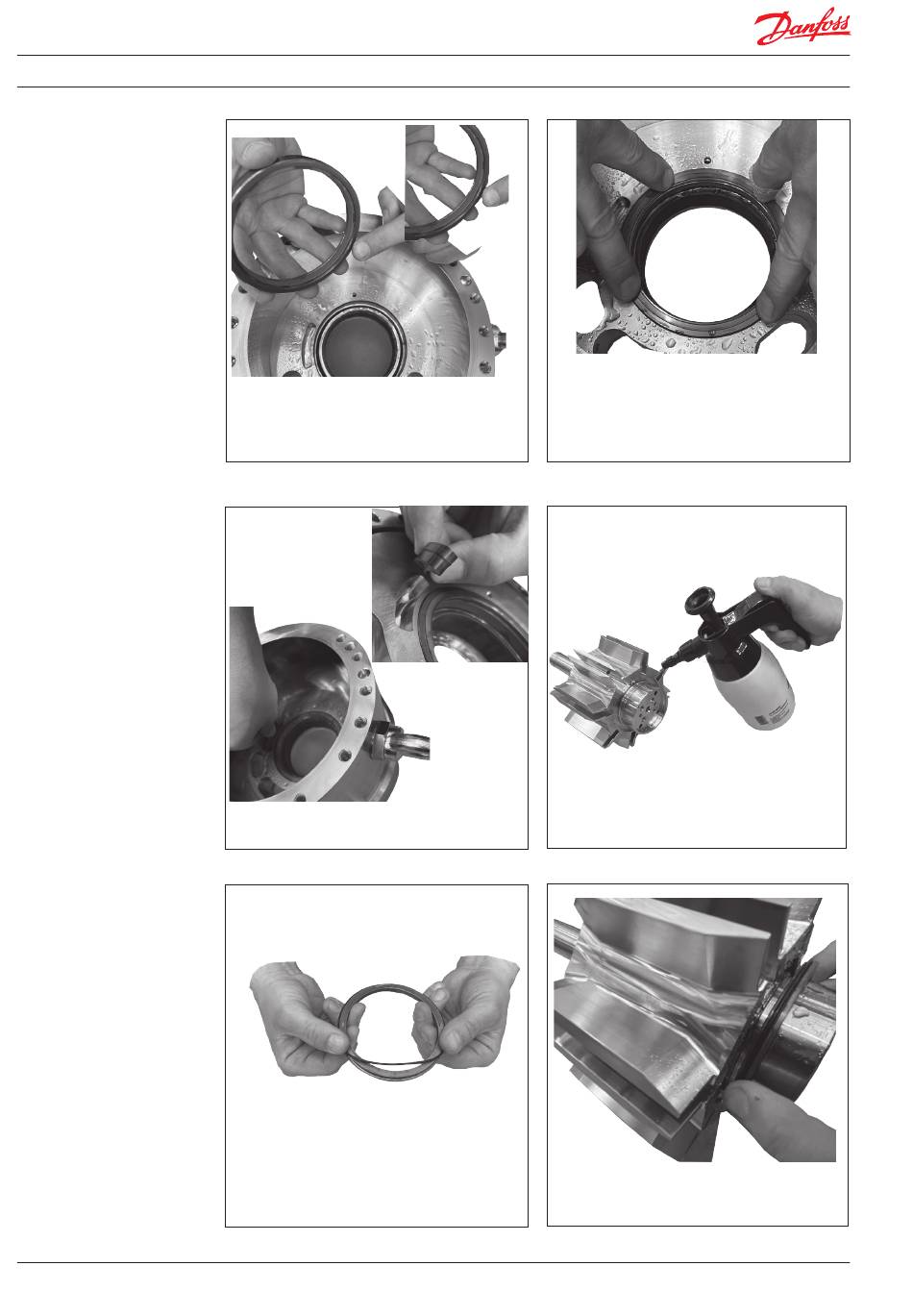

5. Lubricate the O-rings in the
portflange with water and install
sideplate.
7. Install the rotor stop, with the thin side
downwards.
9. Install the O-ring on the rotor element.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
6. Carefully by hand press down the
sideplate. The outer surface of the side
plate should be flush with the flange
when pushed down. Ones the push is
removed the sideplate will move out a
little due to the oring below.
8. Place the rotor in a horizontal position
and lubricate the end with water.
10. Install the rotor element including the
O-ring in the grove.
