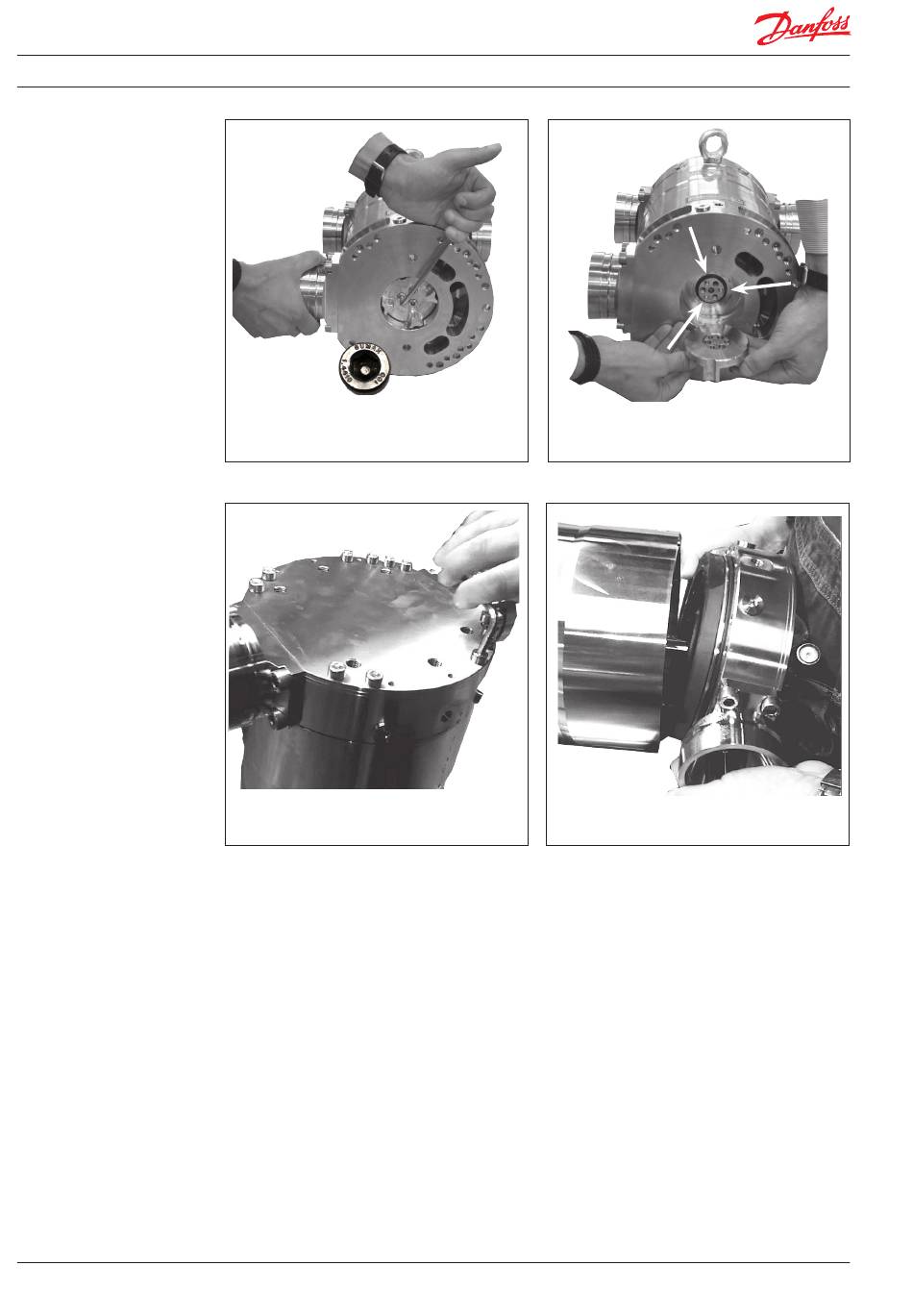

Operation guide | iSave 40
7.
Disassembling the
pressure exchanger
79
3 x special M8x20 bolts
marked 1.4410
1.
Unscrew the 3 special M8x20 bolts marked
1.4410.
3.
Unscrew all the bolts.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
2.
Remove coupling and the 3 pins.
4.
Carefully lever the flange and port
plate from the casing.
