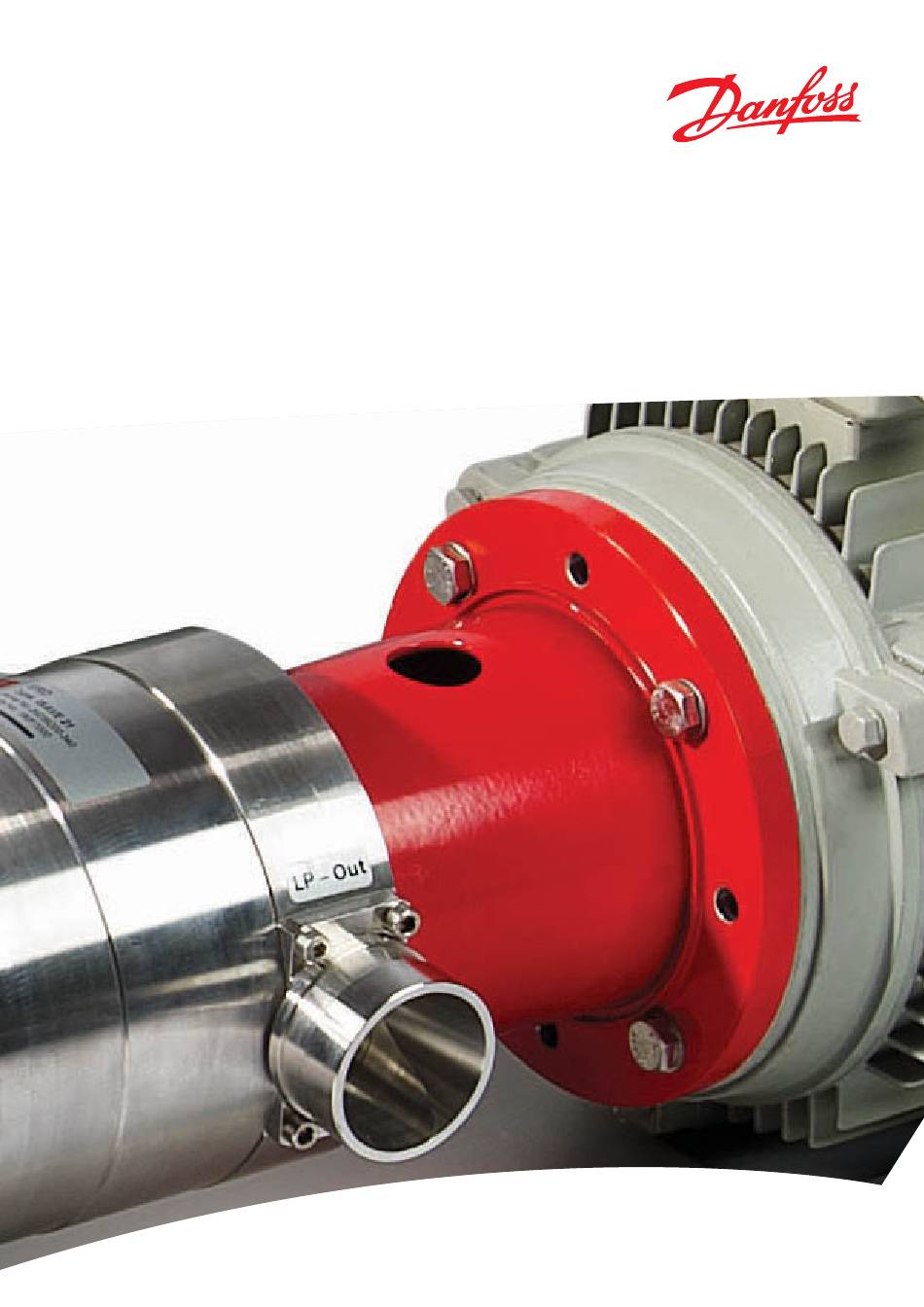

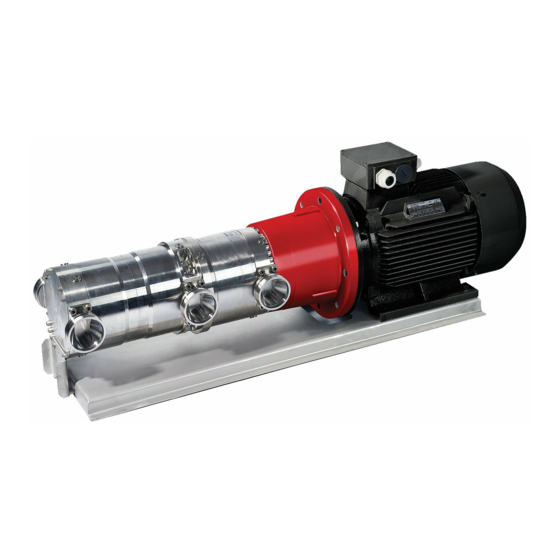

  • Page 1 User manual Installation, Operation and Maintenance Manual iSave 21 isave.danfoss.com 521B1174 / DKCFN.PS.003.A1.02...
  • Page 2 Danfoss can accept no responsibility for possible errors in the manual and instructions. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential chan- ges being necessary in specifications already agreed.

  • Page 3: Table Of Contents

    User manual iSave 21 Table of contents CE Declaration of conformity Introduction 2.1 General 2.2 Target group 2.3 Symbols 2.4 Manufacturer and customer service adress 2.5 Additional technical documents Safety 3.1 General 3.2 Intended use 3.3 Application range 3.4 Preferred system design Arrival inspection, handling and storage 4.1 Arrival inspection...
  • Page 4 User manual iSave 21 On-site installation 6.1 General 6.2 Installation and alignment 6.3 Orientation 6.4 Piping and joints 6.5 Flexible couplings and flexible hoses 6.6 Mounting of coupling 6.7 Mounting of bell housing on iSave 6.8 Accessibility 6.9 Drives 25 6.9.1 Electric motor...

  • Page 5: Table Of Contents 1 Ce Declaration Of Conformity

    User manual iSave 21 1. CE Declaration of conformity 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...

  • Page 6: Introduction

    21 2. Introduction 2.1 General iSave is manufactured by Danfoss A/S, and is sold and marketed by a net of authorised distributors world wide. This manual contains the necessary instructions for the installation, operation and service of the iSave.

  • Page 7: Manufacturer And Customer Service Adress

    User manual iSave 21 2.4 Manufacturer and customer service adress Danfoss A/S DK-6430 Nordborg, Denmark Telephone: +45 7488 2222 Email: ro-solutions@danfoss.com Home page: www.ro-solutions.com 2.5 Additional technical documents Document name Content Datasheet Description of the technical data and dimensions of the iSave...

  • Page 8: Safety

    User manual iSave 21 3. Safety 3.1 General The iSave must not be used for other purposes than those recommended and specified without first consulting your local iSave distributor. This manual must be read and completely understood by the responsible specialist person- nel prior to installation and commissioning.

  • Page 9: Intended Use

    User manual iSave 21 3.2 Intended use The iSave is designed for use as energy recovery device in Sea Water Reverse Osmosis (SWRO) or Brackish Water Reverse Osmosis (BWRO) system. The iSave must not be used for other purposes than recommended and quoted for without consulting your local iSave distributor.

  • Page 10: Preferred System Design

    21 3.4 Preferred system design Danfoss recommends building systems with a high degree of safety. The PI&D in chapter 5.16 shows the Danfoss preferred system design. • It is always the system builders’ responsibility that the system design does not cause any form of hazard and are adapted to local regulations.

  • Page 11: Centre Of Mass

    User manual iSave 21 Check the mass (weight) of the iSave unit. All parts weighing more than 20 kg must be lifted using lifting slings and suitable lifting devices, e.g. an overhead crane or industrial truck. All iSave units weight more than 20 kg.

  • Page 12: Storage

    Storage temperature: 1°C to +70°C (33°F to 158°F) – provided that the pump is drained of fluid and stored “plugged”. Frost protection is required at temperatures below 1°C. Danfoss recommends using DOW- FROST from DOW Chemical Company or Chillsafe mono propylene glycol from Arco Chemi- cal Company.

  • Page 13: Technical Data And Design Review

    The noise level from the iSave including the electrical motor is 86 dB (A). Measurements ac- cording to EN ISO 20361. The test is made under following conditions: 1. iSave and electrical motor mounted on Danfoss base plate. 2. Baseplate is isolated from concrete ground by rubber vibration dampers.

  • Page 14: Materials

    User manual iSave 21 5.3 Materials All critical parts of the iSave are made of super-duplex 1.4410/UN S32750 or the like. Non-critical parts that are not in contact with sea water are made of AISI316. The shaft to the electrical motor is sealed by a standardised mechanical seal.

  • Page 15: How Does The Isave Work

    User manual iSave 21 5.7 How does the iSave work? Figure 5.1 shows a section view of the iSave The iSave consists of a rotating isobaric pressure exchanger and a positive displacement pump, also called booster pump. The rotation speed of the pressure exchanger and the pump is exactly the same, as they are driven by the same electric motor.

  • Page 16: Booster Pump

    User manual iSave 21 5.7.2 Booster pump The booster pump is a positive displacement pump, which means that the flow is controlled by the speed of the electric motor; e.g. if the rotation speed of the electric motor is raised by 10%, the flow will be 10% higher and vice versa.

  • Page 17: Seawater Quality

    The iSave may request a different pre-filter of the seawater than the HP pump and other components in the RO system. As the various filters on the market differ greatly, Danfoss RO Solutions recommends us- ing cartridges with consistent, reliable performance and high efficiency, in which fibres are blown continuously onto a central support core.

  • Page 18: Air Bubbles

    User manual iSave 21 For more information on the importance of proper filtration, please consult our publication “Filtration”, which also will provide you with an explanation of filtration definitions and guid- ance on how to select the right filter. See section 5.8.1 for filter installation instructions.

  • Page 19: Flushing

    User manual iSave 21 5.11 Flushing RO membranes require periodic flushing to limit biological fouling. There are two types of flushing: feed water (Seawater) flush and fresh water (Permeate) flush. Regardless of the flush water used, the water must be pre-filtered to the level described in chapter 5.8.

  • Page 20: Over-Pressurisation Caused By Low Pressure Isolation

    User manual iSave 21 5.14 Over-pressurisation caused by low pressure isolation If the low-pressure side of the iSave is blocked and the iSave is exposed to high-pressure, there is a risk that the iSave or the LP piping could be damaged by over-pressurisation.

  • Page 21: Preferred System Design And P&Id

    User manual iSave 21 5.16 Preferred system design and P&ID Media filter Filter HP pump 3m nom. main filter Permeate Flowmeter Flowmeter Full flow cleaning Flowmeter HP out LP in iSave Fresh water / HP in perteate flush Brine/concetrate LP out...

  • Page 22: On-Site Installation

    Danfoss provides the iSave with a baseplate and support brackets. Although the baseplate is of a sturdy design, it can flex or bend when it is bolted to the foundation. The baseplate thus requires a solid foundation such as concrete or rigid steel frame.

  • Page 23: Piping And Joints

    User manual iSave 21 6.4 Piping and joints Piping material and schedule is of high importance. The strength of the Victaulic® connec- tions is influenced by the material used for both the Victaulic® clamps and the hard piping. The hard piping and connections used must be of proper design and must be installed in accordance with the manufacturer’s recommendations.

  • Page 24: Flexible Couplings And Flexible Hoses

    User manual iSave 21 6.5 Flexible couplings and flexible hoses. The strength of the Victaulic® connections is influenced by the material used for both the Victaulic® clamps and hose couplings. The flexible hose and connections used must be of proper design and must be installed in accordance with the manufacturer’s recommendations.

  • Page 25: Accessibility

    User manual iSave 21 6.8 Accessibility With respect to the service and replacement of the complete iSave unit, it is recommended to maintain sufficient space around the unit. The space must be sufficient enough to allow for safe lifting of the equipment, with no risk for personal injury and/or damage to the iSave.

  • Page 26: Commissioning, Start-Up And Shutdown

    • Check all bolts in all connections and in the foundation of the iSave and the pumps. 7.2 Support Danfoss A/S offers commissioning and service at system manufacturer’s location. Rate quotes are offered upon request. 7.3 Commissioning...

  • Page 27: Service/Maintenance

    • When the system is re-started after service and maintenance follow the instructions in chapter 7 and in “Start and stop procedures” in appendix. 10.1 8.2 Support Danfoss A/S offers commissioning and service at the system manufacturer’s location. Rate quotes are offered upon request. 8.3 Maintenance schedule The schedule of preventive maintenance below will help ensure that the iSave provides years of trouble-free performance.

  • Page 28: Tool Used

    User manual iSave 21 8,000 hours of operation after commissioning: 1. Re-check bolts in the foundation and the baseplate of the iSave and tighten the bolts to specified torque if necessary. 2. Re-check alignment of iSave baseplate and iSave. 3. Visually inspect all pipe connections / couplings for external leakage.

  • Page 29: Trouble-Shooting

    User manual iSave 21 9 Trouble-shooting 9.1 Safety regulations The operator ensures that all inspection and installation work is performed by authorised, qualified specialist personnel who are thoroughly familiar with the manual. Before intervening in the iSave/system; • The power must be shut off and the starting device be locked.

  • Page 30: Appendix

    User manual iSave 21 10 Appendix 10.1 Instruction for start and stop of the SWRO with isave unit (180R9213) 10.2 Membrane cleaning of the RO system with iSave unit (180R9214) 10.3 Data sheet (521B1116) 10.4 iSave part list (180R9209) 10.5 iSave overload protection (180R9222) 10.6 Hose assembly and installation (180R9084)
  • Page 31 User manual iSave 21 10.1 Instruction for start and stop of the SWRO with isave unit 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 32 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...

  • Page 33: Start And Stop Procedures (180R9213)

    Instruction Start and stop of the SWRO with iSave unit www.isave.danfoss.com 180R9213 / 521B1164 / DKCFN.PI.003.F2.02...
  • Page 34 Start and stop of the SWRO with iSave unit Below procedures are general guidelines for the start-up and shut-down functions of SWRO-systems with the Danfoss iSave Energy Recovery Device. Procedure details may differ depending on the system design. The numbers marked in () refer to the diagram below.
  • Page 35 Instruction Start and stop of the SWRO with iSave unit Starting up the system 1. Make sure that all valves are set in normal operating positions. 2. Start the seawater supply pump (1) 3. Make sure all pipework is flushed with water. Vent all air from the system through air valve (8) and iSave unit (11).
  • Page 36 Instruction Start and stop of the SWRO with iSave unit 4-14 days system shutdown 1. Run the “1-3 days’ system shutdown” procedure. 2. Supply fresh water to the iSave unit (11) and the SWRO system. Make sure that the iSave unit and the SWRO system are filled at the same time to ensure optimal flushing.

  • Page 37: Membrane Cleaning Of The Ro System With Isave Unit (180R9214)

    User manual iSave 21 10.2 Membrane cleaning of the RO system with iSave unit 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 38 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 39 Instruction Membrane cleaning of the RO-system with iSave unit www.isave.danfoss.com 180R9214 / 521B1165 / DKCFN.PI.003.G2.02...
  • Page 40 Membrane cleaning of the RO-system with iSave unit Below procedures are general guidelines for the membrane cleaning of SWRO-systems with the Danfoss iSave. Procedure details may differ depending on the system design. The numbers marked in () refer to the diagram’s below.

  • Page 41: Datasheet (521B1116)

    Instruction Membrane cleaning of the RO-system with iSave unit Starting up the system 7. Feed the cleaning solution at high flow into the “full flow cleaning” adapter (7). The high flow rate flushes out the foulants removed from the membrane surface by the cleaning. 8.
  • Page 42 Instruction Membrane cleaning of the RO-system with iSave unit 10. Flush RO permeate or deionised water into the “full flow cleaning” adapter (7) on the feed side of the membrane. Flush out the cleaning solution. It is essential that the water used for the final pre-flush is pre-filtered to a level described in the datasheet.
  • Page 43 User manual iSave 21 10.3 Data sheet 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 44 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 45 MAKING MODERN LIVING POSSIBLE Data sheet Energy Recovery Device iSave 21-40 www.iSave.danfoss.com...
  • Page 46 Complete iSave 21 / 40 without electric motor ....... . .

  • Page 47: General Information

    The iSaves need a VFD that allows the motor to apply a constant torque from low speed to All parts included in the iSave 21-40 are designed maximum speed. to provide long service life with a constant high efficiency and minimum service required.

  • Page 48: Technical Data

    Data sheet Energy Recovery Device / iSave 21-40 Technical data 3.1 Operating conditions iSave 21 iSave 40 Code number 180F7000 (US 180F7010) 180F7001 (US 180F7011) 180F7003 Energy Recovery Device iSave 21 iSave 40 Rated flow 21 m 41.4 m Geometric displacement 265.8 cm...

  • Page 49: Electric Motor

    Data sheet Energy Recovery Device / iSave 21-40 3.3 Electric motor • Three-phase-asynchronous-motor according to DIN-IEC and VDE 0530 standards. • Voltage and frequency according to IEC 38 • The motors are fitted with a rating plate in multi-tension: 380-420 V / 660-720 V, 50 Hz or 440-480 V, 60 Hz •...

  • Page 50: Noise Level

    Data sheet Energy Recovery Device / iSave 21-40 Temperature and Fluid temperature: +2°C to +40°C (+35.6°F to 104°F) - dependent on the NaCI concentration corrosion Ambient temperature: +2°C to +50°C (+35.6°F to 122°F) 5.1 Operation The chart below illustrates the corrosive...

  • Page 51: Isave Drawings

    Data sheet Energy Recovery Device / iSave 21-40 iSave drawings 8.1 Complete iSave 21 / 40 without electric motor iSave 21 (Code no.: 180F7010) 65 kg iSave 40 (Code no.: 180F7011) 123 kg Description iSave 21 iSave 40 Parallel key, DIN 6885. mm, (inch) 5 x 5 x 20 (0.20 x 0.20 x 0.78) 10 x 8 x 35 (0.39 x 0.31 x 1.38)
  • Page 52 Data sheet Energy Recovery Device / iSave 21-40 8.2 Complete iSave 21 / 40 with electric motor iSave 21 (Code no.: 180F7000) 95 kg iSave 40 - horizontal (Code no.: 180F7001) 254 kg 521B1116 / DKCFN.PD.003.A4.02 / 01.2012...

  • Page 53: Installation

    Data sheet Energy Recovery Device / iSave 21-40 iSave 40 - vertical (Code no.: 180F7003) 254 kg Installation Mounting The figure below illustrates how to mount the iSave and connect it to the electric motor. min. 3mm air space A: Flexible coupling...
  • Page 54 Data sheet Energy Recovery Device / iSave 21-40 Orientation The iSave can be mounted horizontally and baseplate is of heavy design, it can flex or bend vertically. when it is bolted to the foundation. Therefore the baseplate requires a solid foundation such as When mounted vertically, the electric motor concrete or rigid steel frame.

  • Page 55: Service

    Data sheet Energy Recovery Device / iSave 21-40 10. RO systems with an PID setup iSave Explanation of PID setup A. Place inlet filters on LP string in front of the ded to install monitoring pressure switch (13) iSave (11). Please consult section 7, “Filtration”...

  • Page 56: Performance Curves

    Data sheet Energy Recovery Device / iSave 21-40 12. Performance curves 12.1 Performance curves iSave 21 Differential pressure, Low pressure Lubrication flow 521B1116 / DKCFN.PD.003.A4.02 / 01.2012...
  • Page 57 Denmark Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
  • Page 58 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...

  • Page 59: Isave Part List (180R9209)

    User manual iSave 21 10.4 iSave part list 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 60 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 61 Parts list iSave 21 Parts list isave.danfoss.com 180R9209 / DKCFN.PC.003.A2.02...
  • Page 62 Parts list iSave 21 Parts list iSave 21 This part list provides an overview of the content of various service sets for the isave21 as well as exploded views of the iSave, pressure exchanger and booster pump. 180R9209 / DKCFN.PC.003.A2.02 / 03.2011...
  • Page 63 Parts list iSave 21 Parts list Pressure exchanger Note: The parts listed are not sold seperately, only in various kits Exploded view, page 6 Pos. Qnt. Designation Material 180F4101 180F4102 180F4103 180F4104 180F4105 Valve Port plate, Port plate, Sealing plate...
  • Page 64 Parts list iSave 21 Parts list Booster Pump (vane pump), Note: The parts listed are not sold seperately, only in various kits parts list Exploded view, page 5 Pos. Qnt. Designation Material 180F4105 180F4107 180F4108 Sealing kit Vane kit Side plate...
  • Page 65 Parts list iSave 21 Parts list iSave on base plate Exploded view, page 9 Pos. Qnt. Designation iSave 21 Base plate Bell housing Electric motor Coupling Bolt M10 x 30 A4 Washer Bolt M6 x 16 A4 Plug Washer Bolt M8 x 20 A4...
  • Page 66 Parts list iSave 21 Parts list Exploded view Vane pump 180R9209 / DKCFN.PC.003.A2.02 / 03.2011...
  • Page 67 Parts list iSave 21 Parts list Exploded view Pressure Exchanger 180R9209 / DKCFN.PC.003.A2.02 / 03.2011...
  • Page 68 Parts list iSave 21 Parts list Exploded view iSave 180R9209 / DKCFN.PC.003.A2.02 / 03.2011...
  • Page 69 Parts list iSave 21 Parts list Exploded view iSave on base plate 180R9209 / DKCFN.PC.003.A2.02 / 03.2011...
  • Page 70 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...

  • Page 71: Isave Overload Protection (180R9222)

    User manual iSave 21 10.5 iSave overload protection 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 72 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 73 Instruction Overload protection iSave 21 isave.danfoss.com 180R9222 / 521B1175 / DKCFN.PI.003.L1.02...
  • Page 74 21 Protection by VFD. The Danfoss VLT 302 series can provide the speed control and overall protection of both the electric motor and the mechanical parts in the iSave. For full protection on both the iSave and the electrical motor, one VLT must bee used for each iSave.
  • Page 75 Instruction iSave 21 Danfoss VLT302 with one iSave Electrical schematic diagrams according to EN60204-1 180R9222 / 521B1175 / DKCFN.PI.003.L1.02 / 04.2011...
  • Page 76 A standard thermo relay is not an acceptable protection for the overload protection of the iSave. This is because of the slow reaction time of the relay. Danfoss VLT302 with two iSaves Electrical schematic diagrams according to EN60204-1 180R9222 / 521B1175 / DKCFN.PI.003.L1.02 / 04.2011...
  • Page 77 Instruction iSave 21 Soft starter with one iSave Electrical schematic diagrams according to EN60204-1 180R9222 / 521B1175 / DKCFN.PI.003.L1.02 / 04.2011...
  • Page 78 Instruction iSave 21 Soft starter with two iSaves Electrical schematic diagrams according to EN60204-1 180R9222 / 521B1175 / DKCFN.PI.003.L1.02 / 04.2011...
  • Page 79 Instruction iSave 21 Mechanical coupling The iSave can be protected against overload by using a Torque Overload Safety Coupling between the electric motor and the iSave. The Coupling can be purchase by the company www.rw-america.com Coupling type ES2, 36 Nm...
  • Page 80 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...

  • Page 81: Hose Assembly And Installation (180R9084)

    User manual iSave 21 10.6 Hose assembly and installation 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 82 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 83 1” 87 mm 153 mm 80 bar 2” 160 mm 630 mm 80 bar 3” 100 mm 170 mm 6 bar DK -6430 Nordborg Denmark 10.06 ® DKCFN.PI.000.D3.02 521B0540 180R9084 ©Danfoss A/S Nessie is a trade mark of Danfoss A/S...
  • Page 84 1” 87 mm 153 mm 80 bar 2” 160 mm 630 mm 80 bar 3” 100 mm 170 mm 6 bar DK -6430 Nordborg Denmark 10.06 ® DKCFN.PI.000.D3.02 521B0540 180R9084 ©Danfoss A/S Nessie is a trade mark of Danfoss A/S...

  • Page 85: Service Instructions - Assembly And Disassembly (180R9219)

    User manual iSave 21 10.7 Service instructions - assembly and disassembly 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 86 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 87 Service instruction Assembly and disassembly iSave 21 isave.danfoss.com 180R9219 / 521B1171 / DKCFN.PI.003.K1.02...
  • Page 88 Service instruction iSave 21 This document illustrates instructions for changing internal parts in iSave21. To understand the design of the iSave, see exploded in page 14-16. The weight of the iSave is 41 kg and must be lifted with suitable lifting equipment.
  • Page 89 Service instruction iSave 21 Pressure Exchanger 4. Unscrew the bolts in the flange 5. Screw in the two M8 bolts assembly 6. Pull out the flange by gently screwing in the 7. Wet the shaft and shaft seal with clean (fil- two bolts tered) soap-water.
  • Page 90 Service instruction iSave 21 12. Gently remove the valve plates 13. Replace the O-rings and the back-up rings on the valve plate 14. Mount the new back-up rings on the valve 15. Lubricate all the bores in the cylinder barrel...
  • Page 91 Service instruction iSave 21 18. Adjust the distance between the cylinder The distance must be about 4-6 mm. drum and the second valve plate This is not critical 19. Fit the guide pin in the flange 20. Location hole in port plate There are two different port plates in the iSave.
  • Page 92 Service instruction iSave 21 24. Not correct port plate 23. Check that the next port plate is correct 25. Position the port plate over the guide pin 26. Check that the port plate fits the guide pin 27. Change the o-ring in the flange and position 28.
  • Page 93 Service instruction iSave 21 29. Mount all bolts in the flange and tighten 30. Wet the shaft seal with soap. them all with 30 Nm Do not use silicone grease. Fit the shaft seal with the carbon surface upward 31. Shaft seal NOT mounted correct.
  • Page 94 Service instruction iSave 21 35. Push the new ceramic ring into the flange 36. Position the flange and the bolts. using plastic tool provided. Make sure the face Tighten the 4 bolts with 12 Nm with the rubber seal is positioned against the shoulder in the flange.
  • Page 95 Service instruction iSave 21 41. Remove all the bolts in the flange 42. Remove the flange 43. Remove side plate 44. Side plate removed 45. Gently remove the rotor. 46. Remove vanes NB! Loose parts inside the rotor 48. Check that the guide pin is OK and located 47.
  • Page 96 Service instruction iSave 21 49. Location hole in the side plate 50. Position the side plate over the guide pin. NB: Make sure that the guide pin is located in the locating hole in the port plate. See #49 51. Place the 4 pins in the rotor 52.
  • Page 97 Service instruction iSave 21 55. One vane is NOT positioned correct 56. Replace the o-ring on the flange and wet the flange properly with filtered water 57. Position the side plate over the guide pin 58. Make sure that the guide pin is located in the locating hole in the side plate.
  • Page 98 Service instruction iSave 21 61. Change the o-ring in the flange 62. Bolt the flange onto the vane pump. Tighten the bolt with 30 Nm 63. Fit the coupling into the pump. Glue the threat on the bolt with “loctite 270”...
  • Page 99 Service instruction iSave 21 64. Fit the seal coupling onto the shaft of the 65. Fit the polymer coupling on the steel iSave assembly pressure exchanger coupling 66. Orient both the seal coupling and the 2 guide 67. Mount the bolts into the flange and tighten...
  • Page 100 Service instruction iSave 21 Exploded view Vane pump 180R9219 / 521B1171 / DKCFN.PI.003.K1.02 / 01.2011...
  • Page 101 Service instruction iSave 21 Exploded view Pressure Exchanger 180R9219 / 521B1171 / DKCFN.PI.003.K1.02 / 01.2011...
  • Page 102 Service instruction iSave 21 Exploded view iSave 180R9219 / 521B1171 / DKCFN.PI.003.K1.02 / 01.2011...

  • Page 103: Operating- And Maintenance Instruction, Electric Motor (180R9163)

    User manual iSave 21 10.8 Operating- and maintenance instruction, electric motor 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 104 User manual iSave 21 180R9221 / 521B1174 / DKCFN.PS.003.A1.02...
  • Page 105 BETRIEBS- UND WARTUNGS- OPERATING- AND MAINTENANCE ANLEITUNG INSTRUCTIONS Lagerung und Transport Storage and transport Motoren gegen mechanische Beschädigungen sichern und möglichst nur in The motors are to be protected against mechanical damages and, if possible, geschlossenen, trockenen Räumen lagern. Auch bei kurzzeitiger Lagerung im they are to be stored in closed and dry rooms only.
  • Page 106 - Ein-/Ausschalten des Motors - - Switching the motor on/off - Vor dem Einschalten, während des Betriebs und beim Abschalten des Motors Before switching the motor on, during motor operation and when switching prüfen, ob alle Sicherheitsbestimmungen eingehalten werden. Bei Inbetrieb- it off it should be checked whether all safety regulations are followed.
