Operation guide | iSave 40
18.
20.
22.

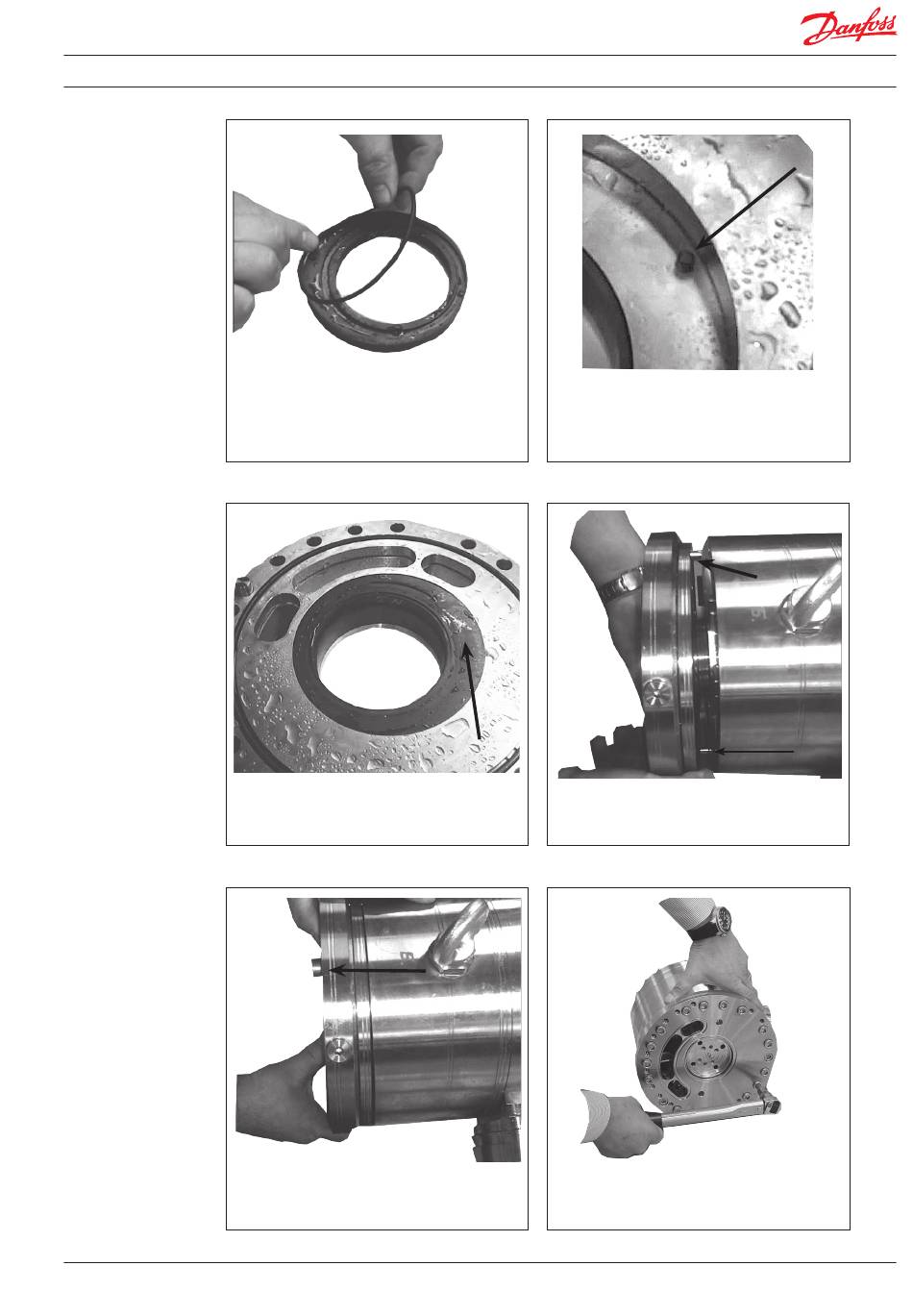

Assemble the new O-ring on the correct
sealing plate.
It is important to lubricate to ensure the
O-ring does not drop out.
Position the sealing plate over the guide
pin.
Mount two bolts in the adapter flange.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
19.
Position the guide pin in the adapter
flange.
21.
Carefully position the adapter flange
assembly into the two guide pin holes.
23.
Mount all bolts in the adapter flange.
Tighten the bolts to a torque of 60±6 Nm.
