Operation guide | iSave 40

3. 1 Disassembling the

booster pump series

04 and newer

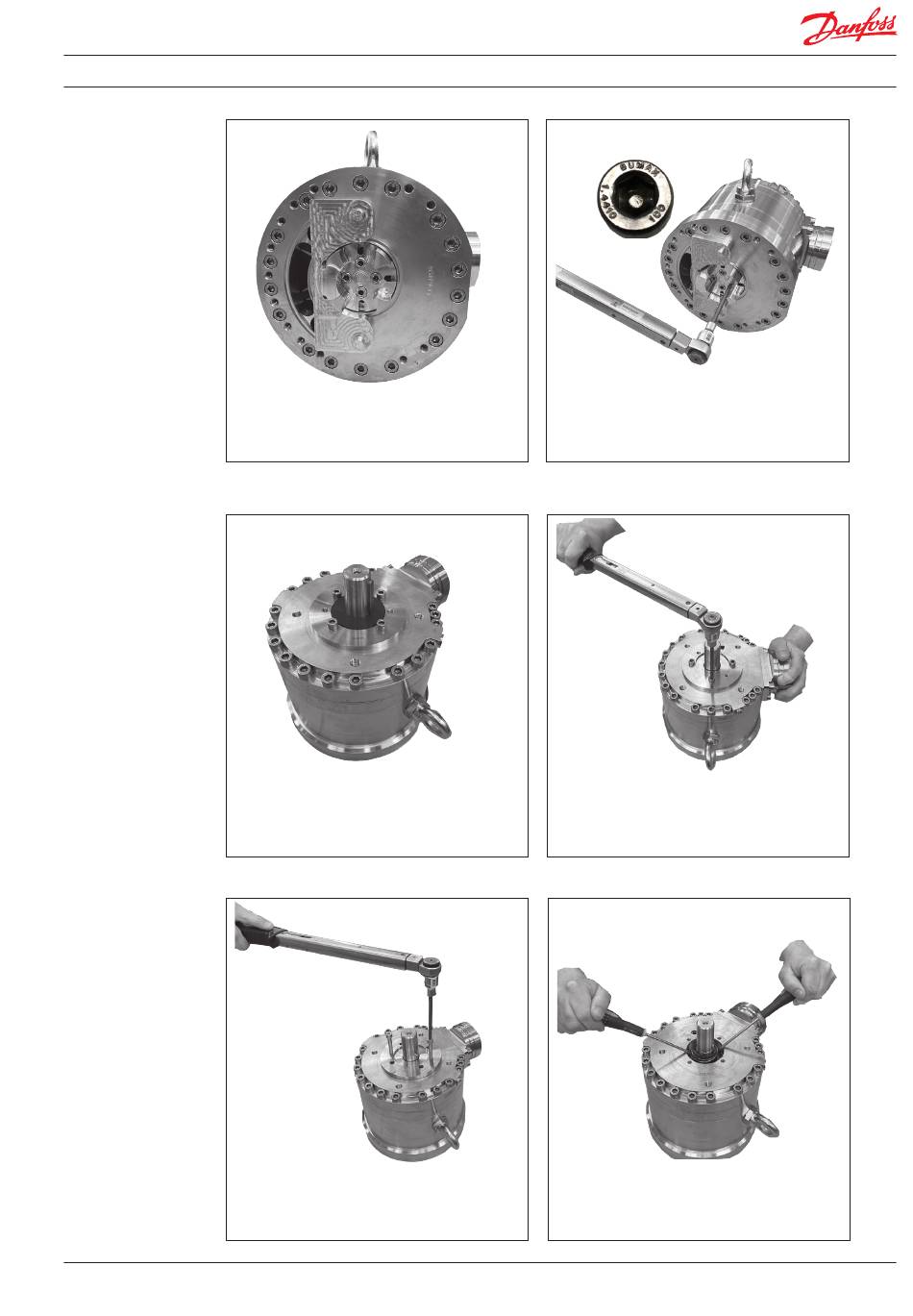

Install the locking tool to prevent the

shaft from rotating.

Place the vanepump on a clean surface

in the vertical position with the shaft

pointing upwards. Remove the key

and the dust cap from the shaft.

Remove cover for shaft seal. If it cannot

be removed easily, use two M8 bolts to

push it straight out.

180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022

Remove the coupling by unscrewing

the four special M8 x 20 bolts marked

with 1.4410

Remove the four screws in the shaft

seal cover.

Wet the shaft seal with clean filtered

water, carefully lift the shaft seal by

using two screwdreivers.
