Operation guide | iSave 40
4.

Arrival inspection,

handling and storage
4.1 Arrival inspection
The iSave is packed in a wood container with
plugs in the port connections to protect the unit
from damage during transport.
Remove all packing materials immediately after
delivery. Immediately check the shipment for
damage on arrival and make sure that the name
plate/type designation is in accordance with the
packing slip and your order.
In case of damage and/or missing parts, a report
should be drawn up and presented to the carrier
at once.
The identification label on the iSave states the
specific type, the serial number and the code
number of the iSave; see label below.
The last three digits of the Serial No. indicate the
week and year of production.

4.2 Return to the supplier

Flush the iSave with clean filtered water. Drain
the iSave and plug the port connections with a
cap/cover. Pack the iSave into a suitable con-
tainer and make sure that it is suitably fastened
to the container.
Please contact your local authorised distributor
or:
Danfoss A/S
High Pressure Pumps
DK-6430 Nordborg, Denmark
Telephone: +45 7488 2222
Fax: +45 7445 3831
Email: highpressurepumps@danfoss.com
Homepage: www.hpp.danfoss.com

4.3 Handling

• Personnel involved in lifting and
transporting the equipment must be
trained in proper handling and safety
procedures.
• Observe the local regulations regarding
lifting.
• Use suitable, permitted lifting
equipment.
• The iSave (set) could slip the lifting
arrangement.
• Be aware of individuals located in
the operation area while lifting the
component.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
The weight of the iSave, including electric motor,
is between 260 -305 kg (573 lb-672 lb.) The
weight of the electric motor is about 110 kg
(242 lb). All parts weighing more than 20 kg (44
lb) must be lifted using lifting slings and suitable
lifting devices, e.g. an overhead crane or fork lift.

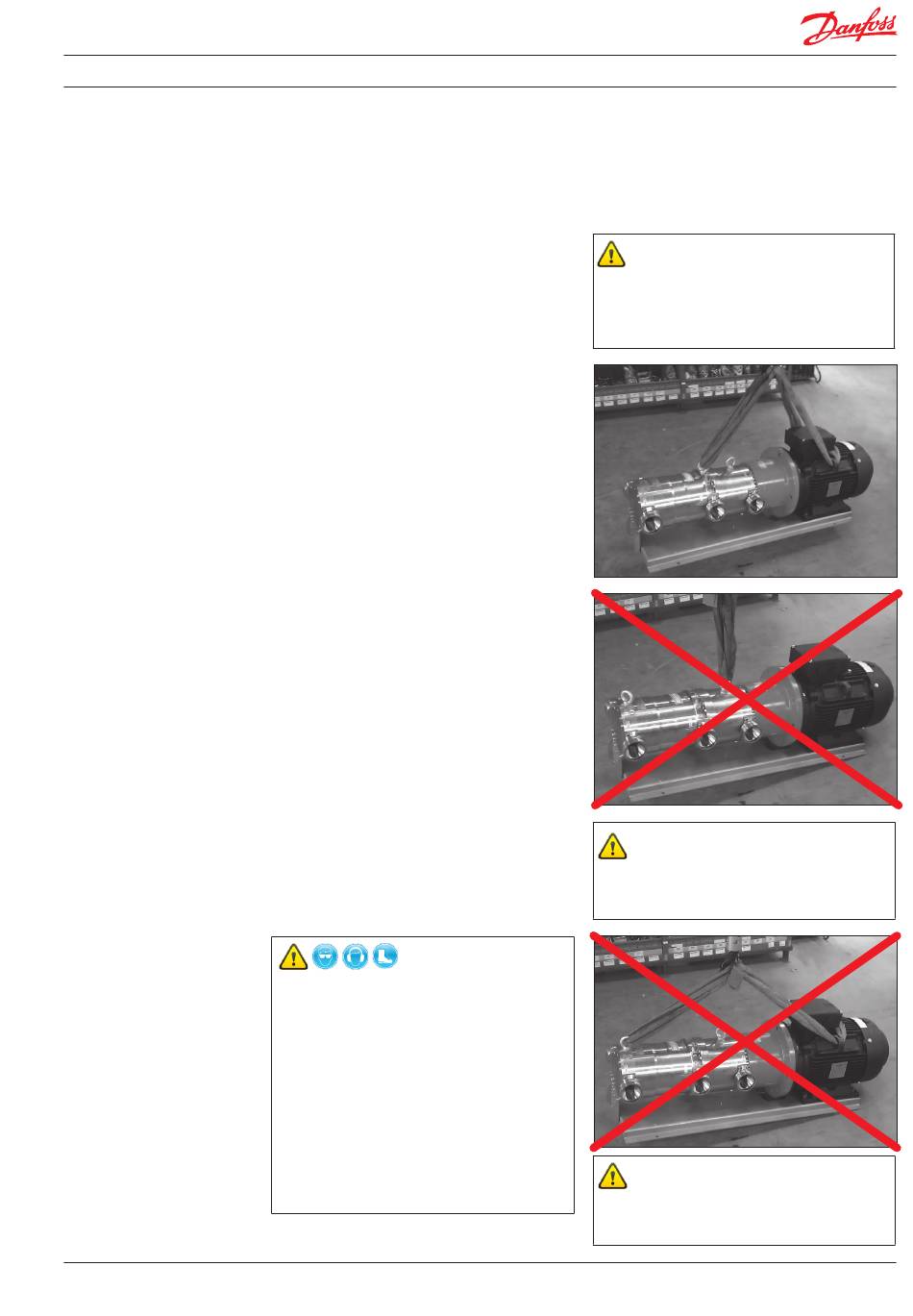

Secure lifting slings around the part of
the iSave and the back of the electric
motor.
Make sure that the load is balanced
before attempting the lift.
Never lift the iSave unit with only one
fastening point.
Incorrect lifting can result in personally
injury and/or damage to the unit.
Never lift the iSave in the bell housing.
Incorrect lifting can result in personally
injury and/or damage to the unit.
