Operation guide | iSave 40
5.
7.
10.

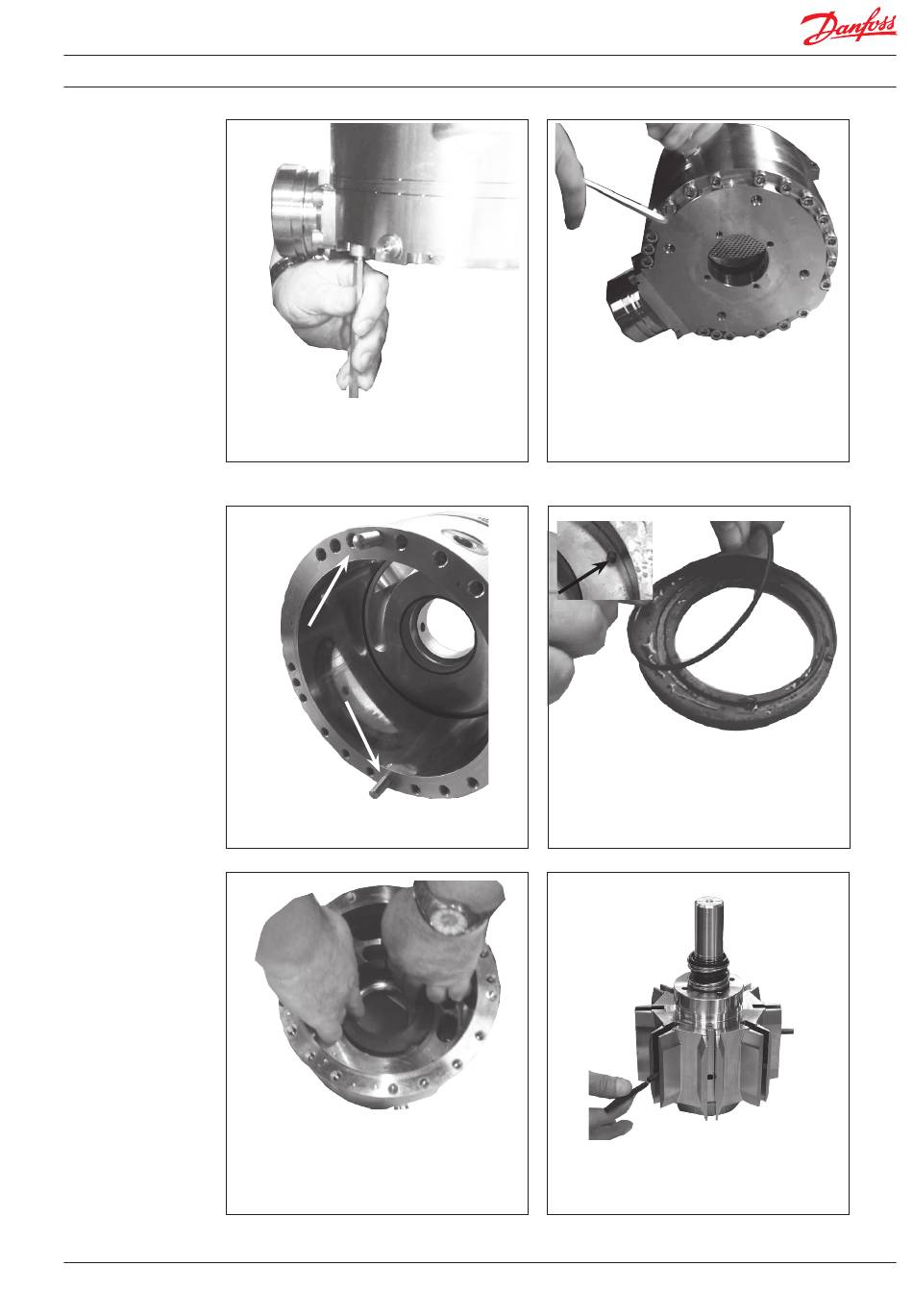

Tighten the bolts by using an allen key.
Assemble and position the two pins
in the pin holes.
Position the sealing plate on the guide
pin.
Ensure correct choice of sealing plate.
Only one sealing plate fits the guide pin.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
6. Tilt the flange and stator; assemble and
screw in the rest of the bolts in the
flange. Tighten bolts to a torque of
60 ±6 Nm.
9. Mount the O-ring in the sealing
plate and guide pin in flange.
It is important to lubricate to
ensure the O-ring does not drop out.
11. Position the 8 pins in the rotor.
2 pins in each hole.
