Installation Guide
iC7 Series Pre-charging Unit
for AFE and GC Modules
1 Overview
Pre-charging Unit
1.1
The pre-charging unit is used for pre-charging the system modules that are connected to the same DC bus. There are 3 electrical sizes,
and an IEC and a UL variant of the unit.
Pre-charging unit 10, IEC/UL
l
Pre-charging unit 20, IEC/UL
l
Pre-charging unit 30, IEC/UL
l
The pre-charging unit is available as an accessory.
1

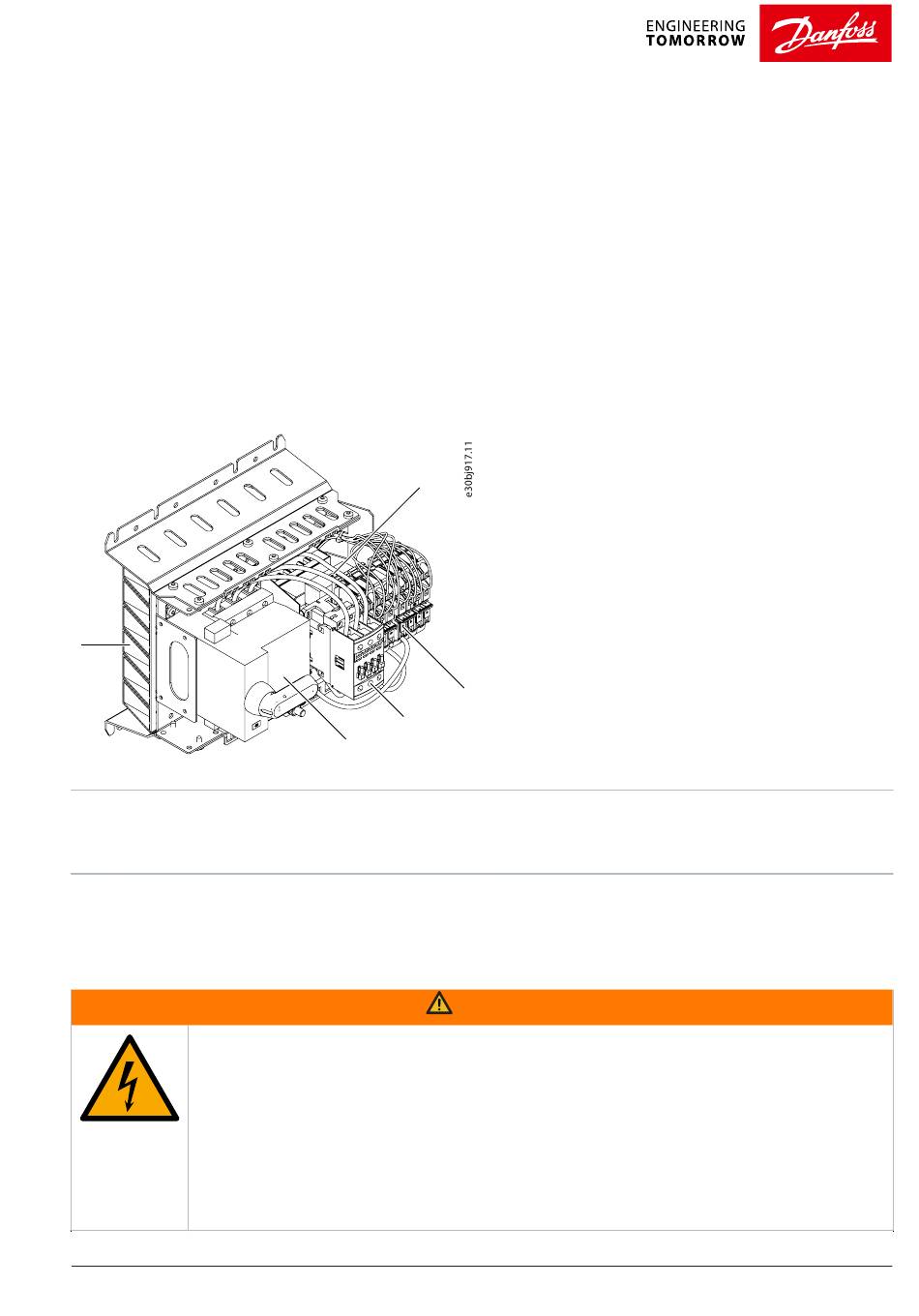

Figure 1: The Pre-charging Unit
1
Charging resistors
3
Contactor
5
Rectifier and snubber capacitor
2 Mechanical Installation
Safety Information
2.1
DISCHARGE TIME
The drive contains DC-link capacitors, which can remain charged even when the drive is not powered. High
voltage can be present even when the warning indicator lights are off. Failure to wait the specified time after
power has been removed before performing service or repair work can result in death or serious injury.
Stop the motor
l
Disconnect all power sources, including permanent magnet type motors.
l
Wait for capacitors to discharge fully. The discharge time is specified on the drive product label.
l
Measure the voltage level to verify full discharge.
l
Danfoss Drives Oy © 2025.01
5
4
3
2
2
4
  WARNING
Fuse switch
Terminal blocks
AN412930943622en-000301 / 172F8128C |
1
