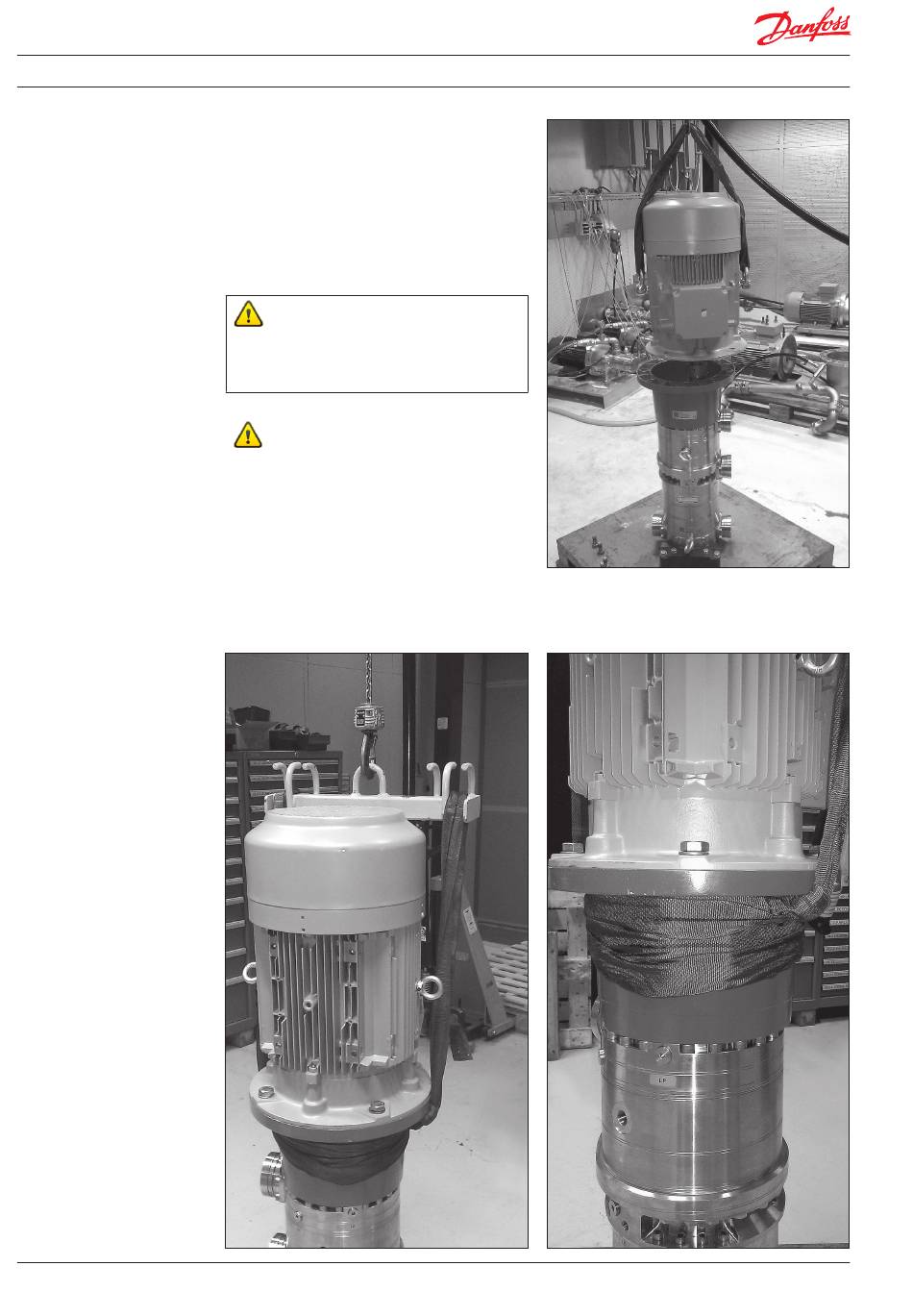

Operation guide | iSave 40

4.3.1 How to assemble the iSave and electric

motor

1) The driver coupling is pre-mounted from

factory. Do not move the coupling.

2) Insert the coupling element into the coupling

in the bell housing.

3) Position the electric motor on the bell

housing. Make sure that the two coupling

parts are connected properly.

4) Tighten the 4 bolts.

Lift the electric motor ONLY in the lifting

eyes provided. The lifting eyes on the

motor must only be used for lifting the

motor – and not the whole unit.

Once the lifting is done the lifting

eye must be removed from the

pump.

Tie two lifting belts around the bell housing

before lifting the whole iSave.

180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
