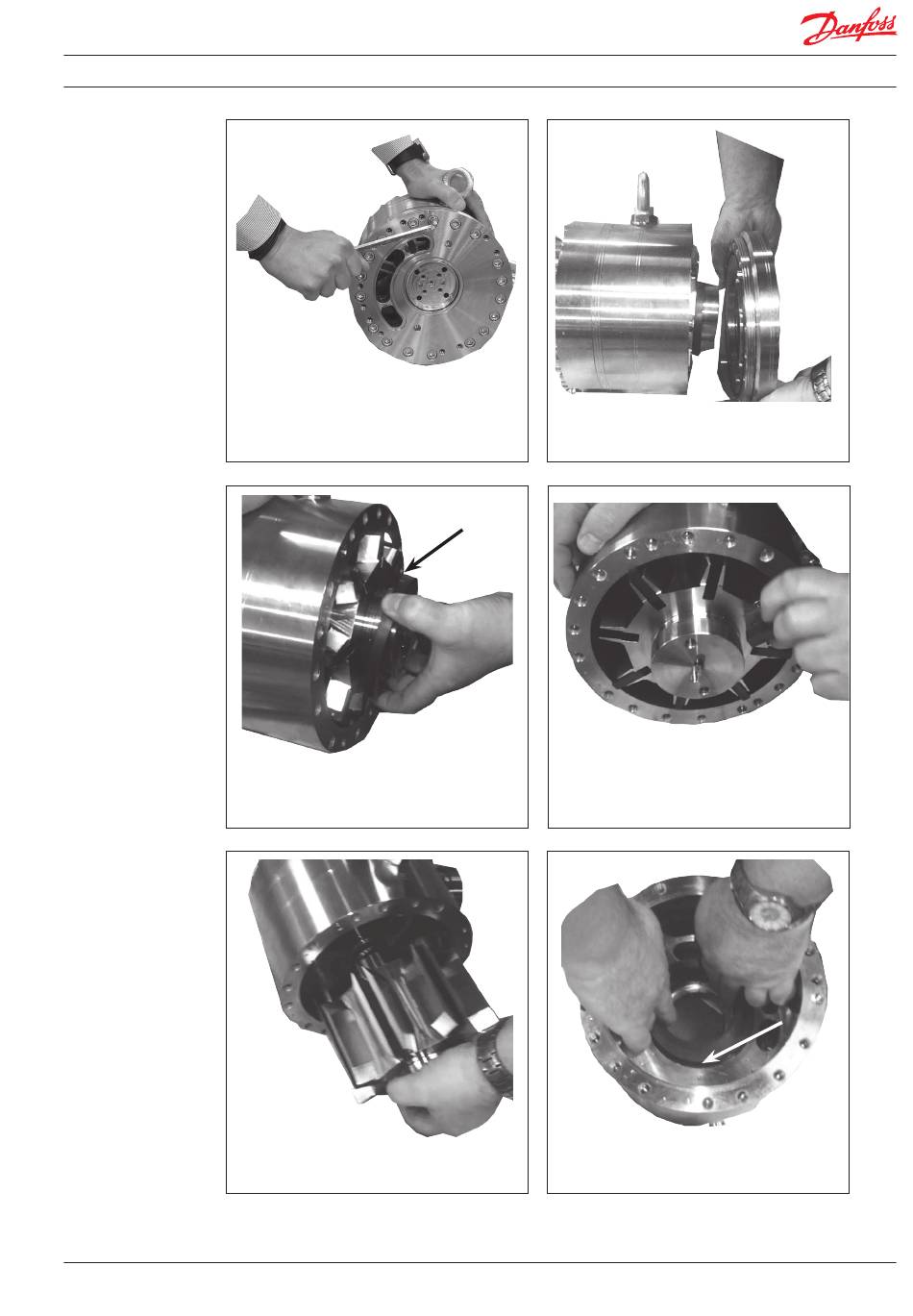

Operation guide | iSave 40
6.
flange.
Loosen all the bolts in the adapter
8.
Remove the sealing plate.
10.
Carefully guide the rotor out of the
stator.
180R9239 | AQ299555093252en-001601 | iSave 40 | 09.2022
7.
Carefully disassemble adapter flange
and port plate from the stator ring.
9.
Remove the 8 vanes.
11.
Remove the sealing plate and pin.
