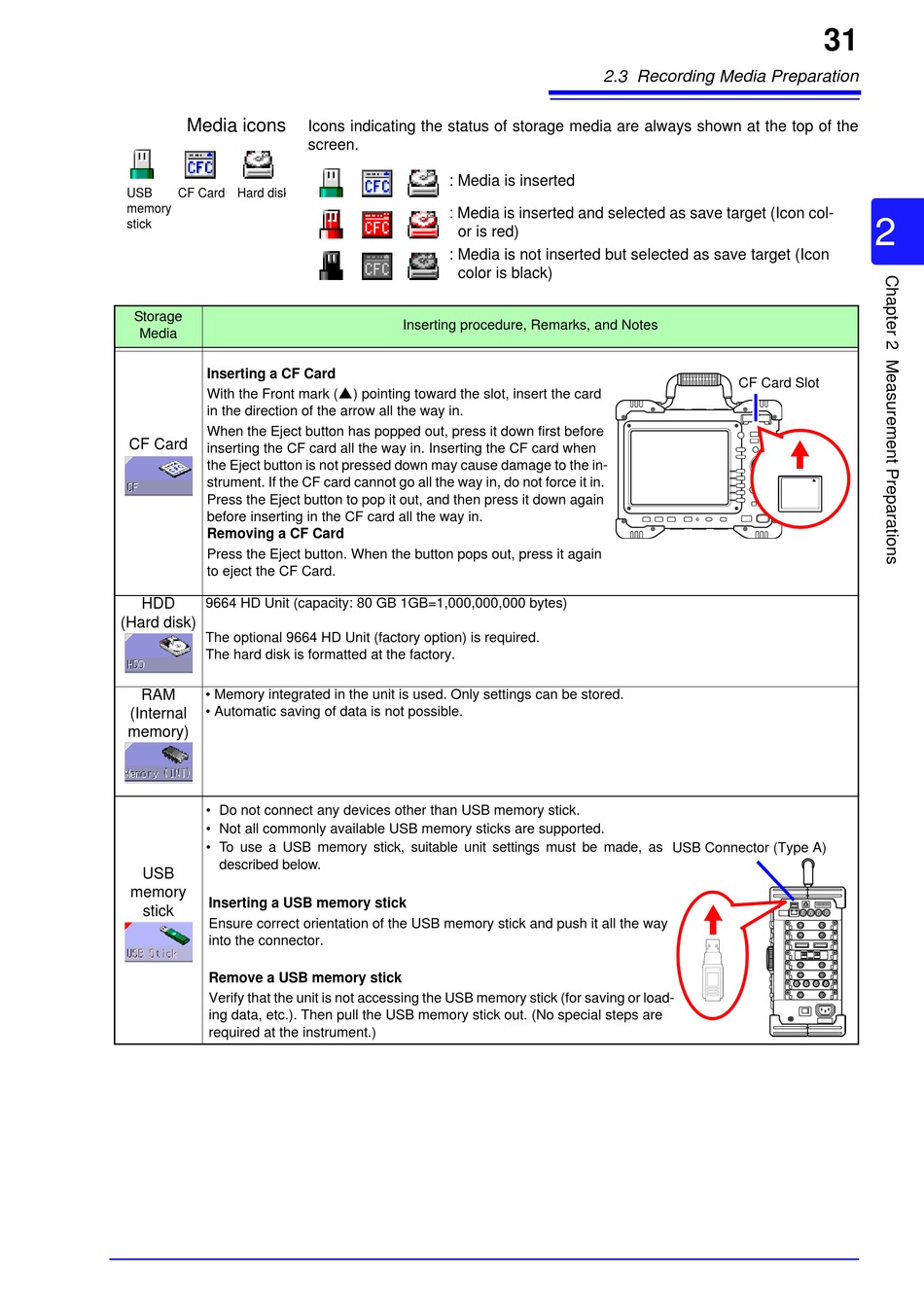

Hioki MEMORY HiCORDER MR8847-01 Instruction Manual page 41

Media icons
USB CF Card Hard disk
memory
stick
Storage
Media
Inserting a CF Card
With the Front mark (
in the direction of the arrow all the way in.
When the Eject button has popped out, press it down first before
CF Card
inserting the CF card all the way in. Inserting the CF card when
the Eject button is not pressed down may cause damage to the in-
strument. If the CF card cannot go all the way in, do not force it in.
Press the Eject button to pop it out, and then press it down again
before inserting in the CF card all the way in.
Removing a CF Card
Press the Eject button. When the button pops out, press it again
to eject the CF Card.
HDD 9664 HD Unit (capacity: 80 GB 1GB=1,000,000,000 bytes)
(Hard disk)
The optional 9664 HD Unit (factory option) is required.
The hard disk is formatted at the factory.
RAM • Memory integrated in the unit is used. Only settings can be stored.
• Automatic saving of data is not possible.
(Internal
memory)
• Do not connect any devices other than USB memory stick.
• Not all commonly available USB memory sticks are supported.
• To use a USB memory stick, suitable unit settings must be made, as
described below.
USB
memory
Inserting a USB memory stick
stick
Ensure correct orientation of the USB memory stick and push it all the way
into the connector.
Remove a USB memory stick
Verify that the unit is not accessing the USB memory stick (for saving or load-
ing data, etc.). Then pull the USB memory stick out. (No special steps are
required at the instrument.)
Icons indicating the status of storage media are always shown at the top of the
screen.
: Media is inserted
: Media is inserted and selected as save target (Icon col-
or is red)
: Media is not inserted but selected as save target (Icon
color is black)
Inserting procedure, Remarks, and Notes

) pointing toward the slot, insert the card
2.3 Recording Media Preparation
CF Card Slot
USB Connector (Type A)
