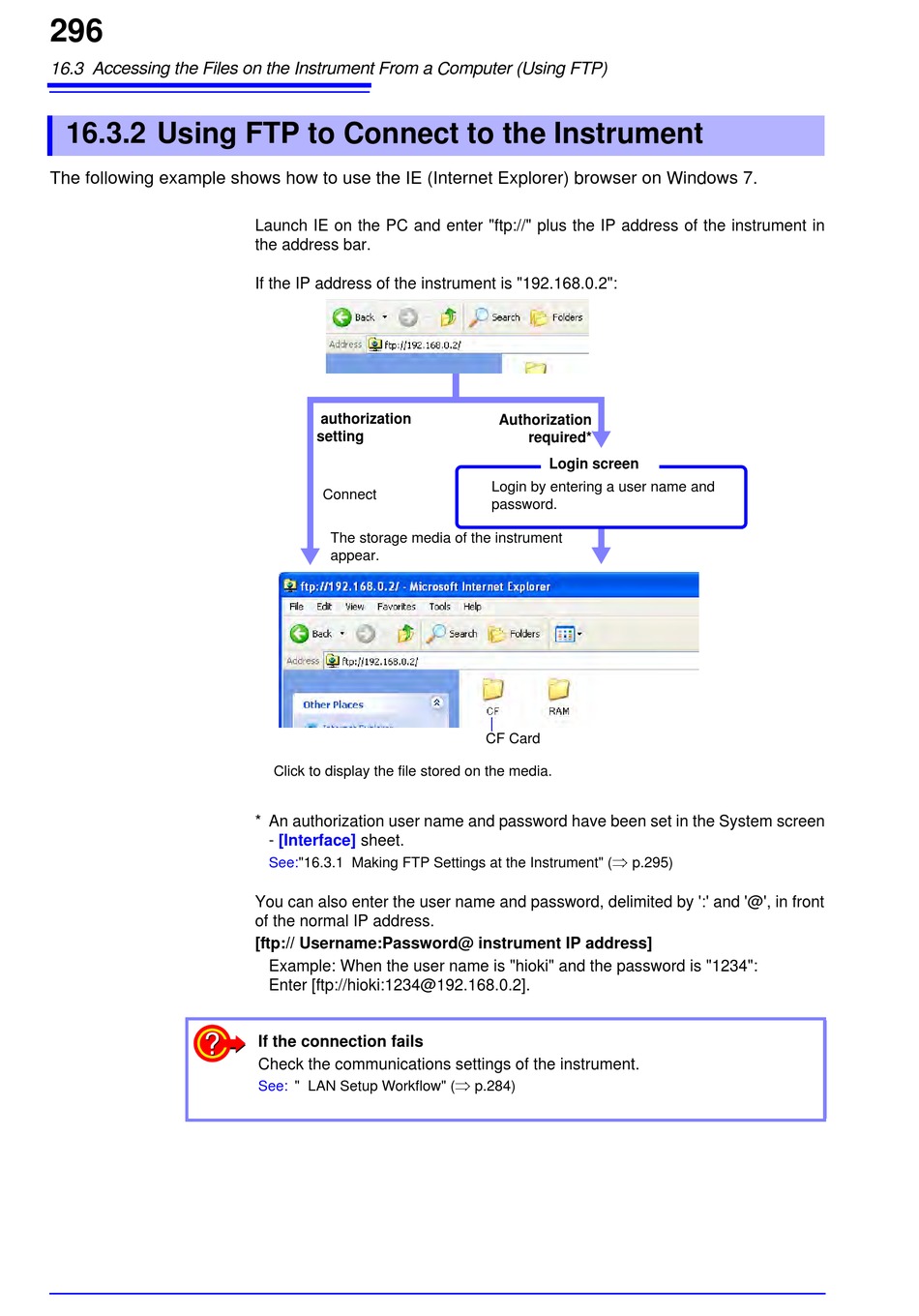

Using Ftp To Connect To The Instrument - Hioki MEMORY HiCORDER MR8847-01 Instruction Manual

296
16.3 Accessing the Files on the Instrument From a Computer (Using FTP)

16.3.2 Using FTP to Connect to the Instrument

The following example shows how to use the IE (Internet Explorer) browser on Windows 7.
Launch IE on the PC and enter "ftp://" plus the IP address of the instrument in
the address bar.
If the IP address of the instrument is "192.168.0.2":
authorization
setting
Connect
The storage media of the instrument
appear.
Click to display the file stored on the media.
* An authorization user name and password have been set in the System screen
- [Interface] sheet.
See:"16.3.1 Making FTP Settings at the Instrument" (
You can also enter the user name and password, delimited by ':' and '@', in front
of the normal IP address.
[ftp:// Username:Password@ instrument IP address]
Example: When the user name is "hioki" and the password is "1234":
Enter [ftp://hioki:1234@192.168.0.2].
If the connection fails
Check the communications settings of the instrument.
See: " LAN Setup Workflow" (
Authorization
required*
Login screen
Login by entering a user name and
password.
CF Card


p.284)
p.295)
