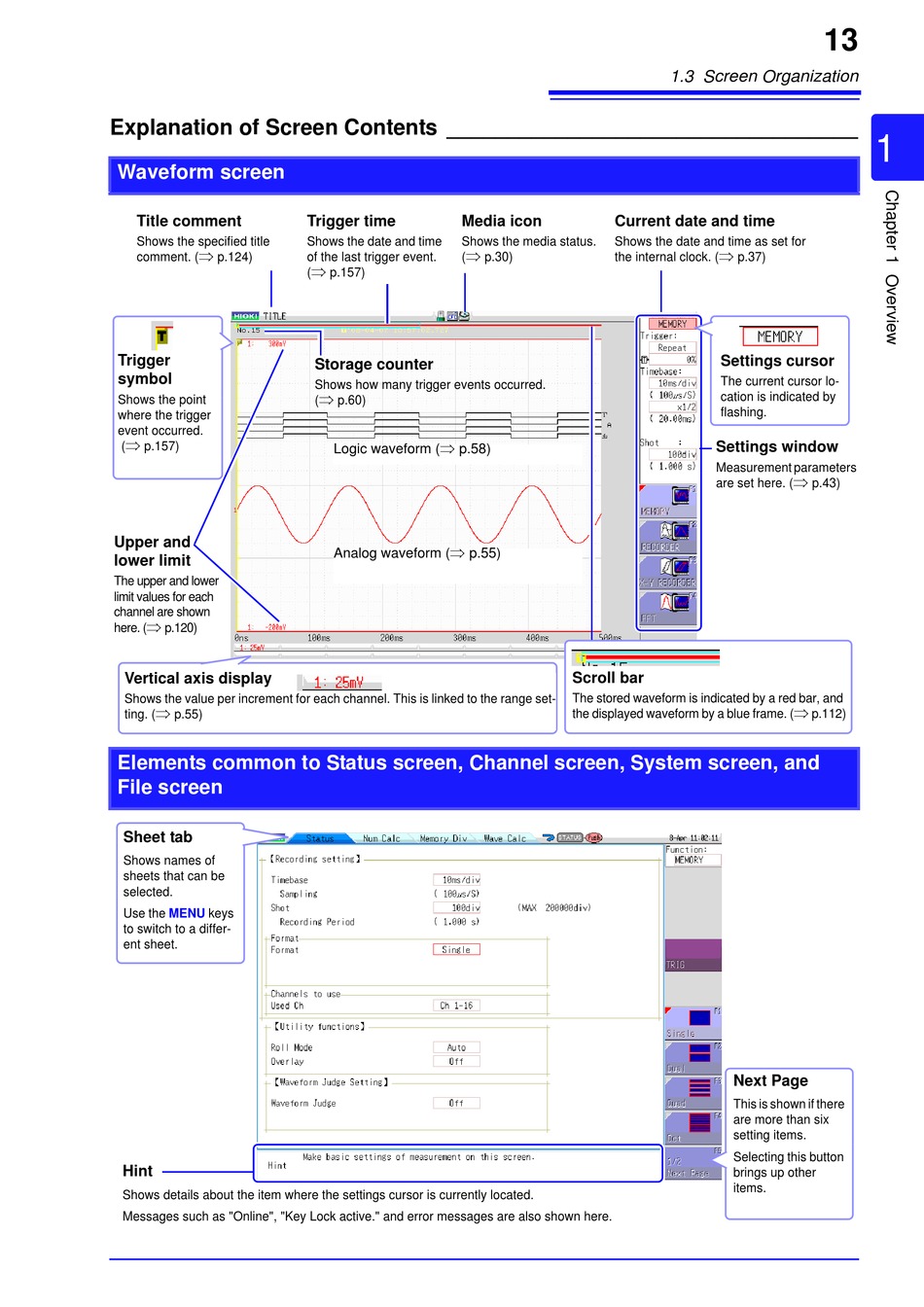

Explanation of Screen Contents __________________________________
Waveform screen
Title comment
Shows the specified title

comment. ( p.124)
Trigger
symbol
Shows the point
where the trigger
event occurred.

( p.157)
Upper and
lower limit
The upper and lower
limit values for each
channel are shown

here. ( p.120)
Vertical axis display
Shows the value per increment for each channel. This is linked to the range set-

ting. ( p.55)
Elements common to Status screen, Channel screen, System screen, and
File screen
Sheet tab
Shows names of
sheets that can be
selected.
Use the MENU keys
to switch to a differ-
ent sheet.
Hint
Shows details about the item where the settings cursor is currently located.
Messages such as "Online", "Key Lock active." and error messages are also shown here.
Trigger time Media icon
Shows the date and time Shows the media status.

of the last trigger event. (

( p.157)
Storage counter
Shows how many trigger events occurred.

( p.60)

Logic waveform ( p.58)

Analog waveform ( p.55)
Current date and time
Shows the date and time as set for
p.30) the internal clock. (
Scroll bar
The stored waveform is indicated by a red bar, and
the displayed waveform by a blue frame. (
13
1.3 Screen Organization

p.37)
Settings cursor
The current cursor lo-
cation is indicated by
flashing.
Settings window
Measurement parameters

are set here. ( p.43)

p.112)
Next Page
This is shown if there
are more than six
setting items.
Selecting this button
brings up other
items.
