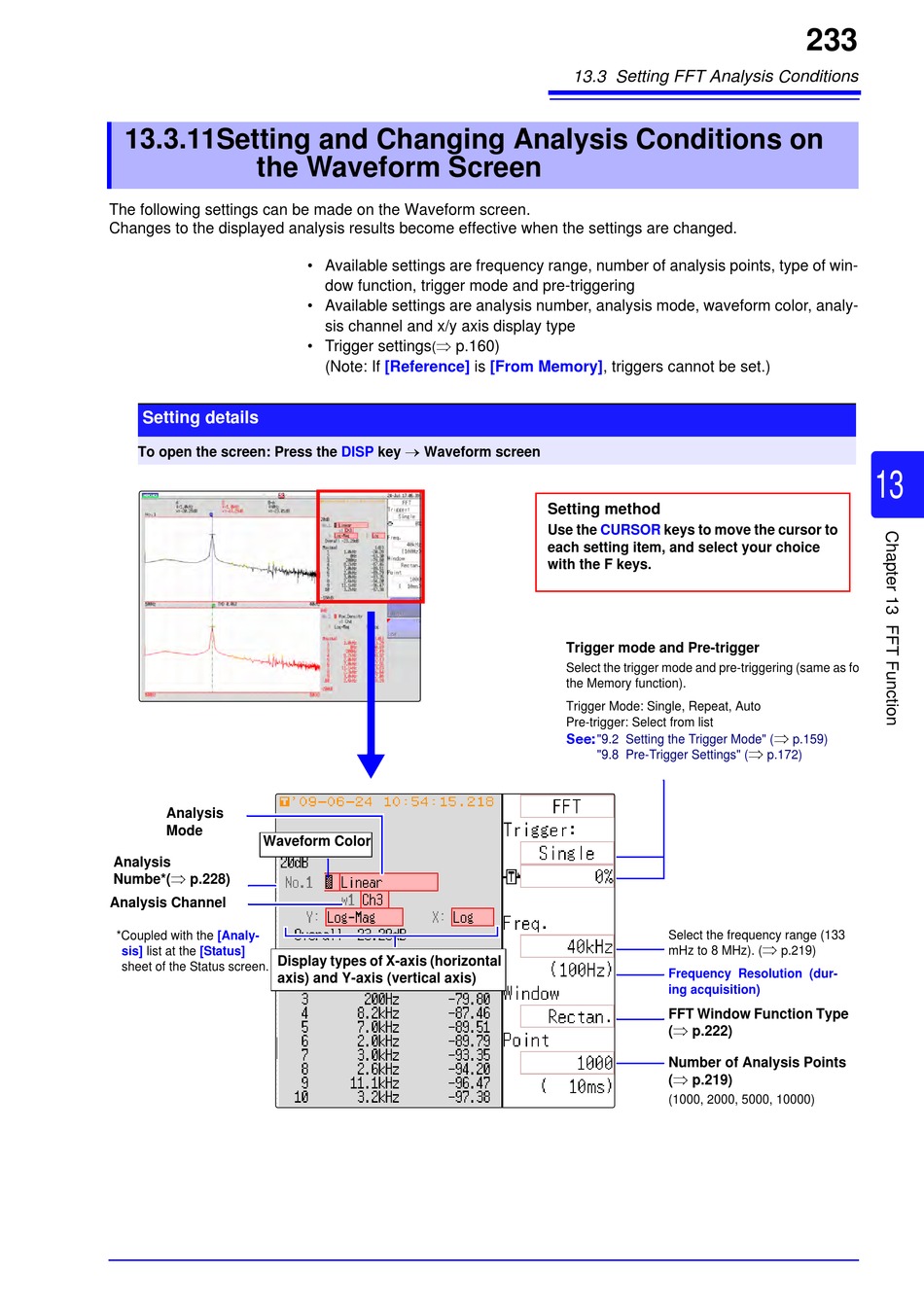

13.3.11Setting and Changing Analysis Conditions on
the Waveform Screen
The following settings can be made on the Waveform screen.
Changes to the displayed analysis results become effective when the settings are changed.
Setting details
To open the screen: Press the
Analysis
Mode
Waveform Color
Analysis

Numbe*( p.228)
Analysis Channel
*Coupled with the [Analy-
sis] list at the [Status]
Display types of X-axis (horizontal
sheet of the Status screen.
axis) and Y-axis (vertical axis)
• Available settings are frequency range, number of analysis points, type of win-
dow function, trigger mode and pre-triggering
• Available settings are analysis number, analysis mode, waveform color, analy-
sis channel and x/y axis display type
 p.160)
• Trigger settings
(
(Note: If [Reference] is

DISP key Waveform screen
13.3 Setting FFT Analysis Conditions
[From Memory], triggers cannot be set.)
Setting method
Use the CURSOR keys to move the cursor to
each setting item, and select your choice
with the F keys.
Trigger mode and Pre-trigger
Select the trigger mode and pre-triggering (same as fo
the Memory function).
Trigger Mode: Single, Repeat, Auto
Pre-trigger: Select from list
See:
"9.2 Setting the Trigger Mode" (
"9.8 Pre-Trigger Settings" (
233

p.159)

p.172)
Select the frequency range (133

mHz to 8 MHz). ( p.219)
Frequency Resolution (dur-
ing acquisition)
FFT Window Function Type

( p.222)
Number of Analysis Points

( p.219)
(1000, 2000, 5000, 10000)
