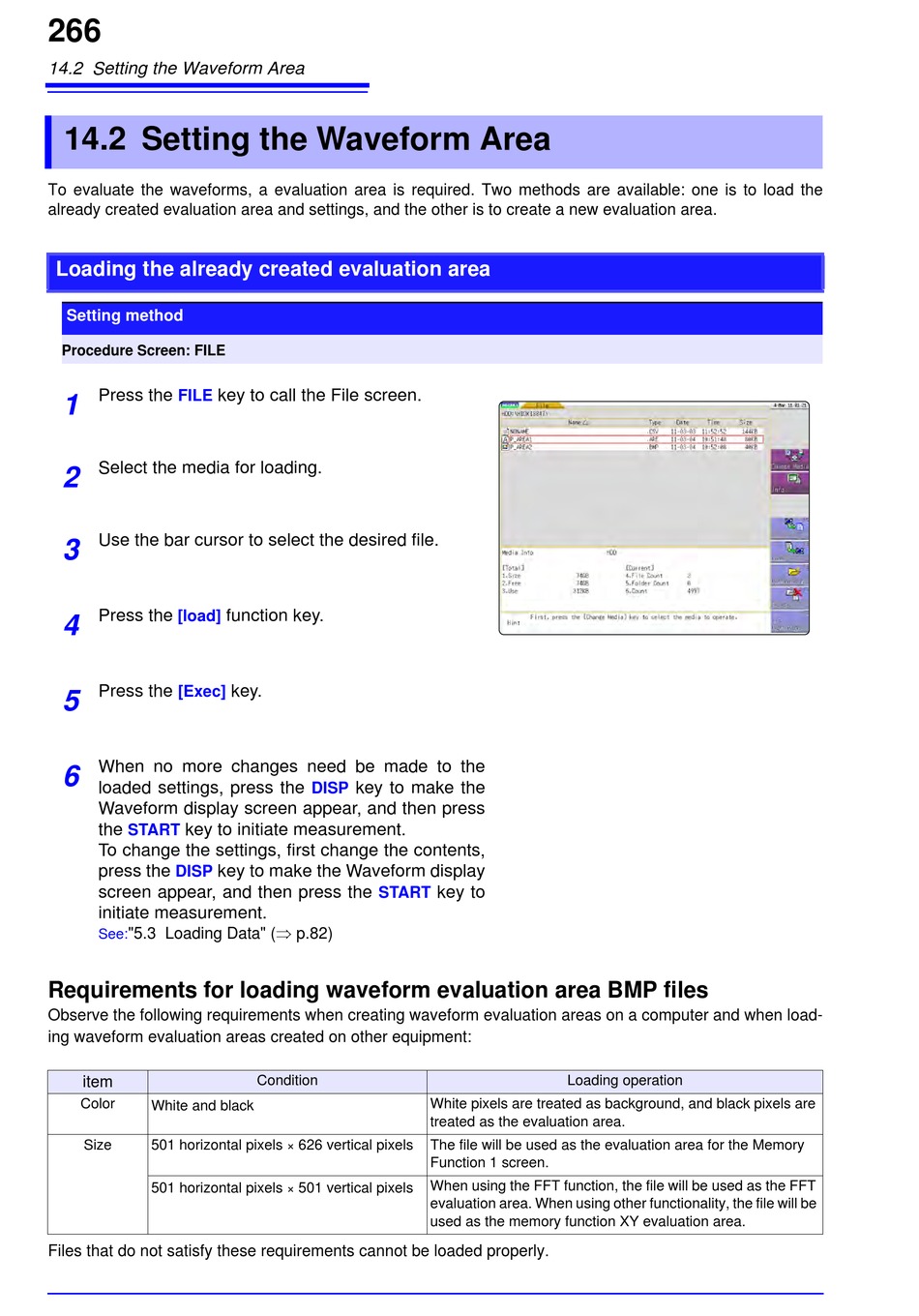

14.2 Setting the Waveform Area

14.2 Setting the Waveform Area
To evaluate the waveforms, a evaluation area is required. Two methods are available: one is to load the
already created evaluation area and settings, and the other is to create a new evaluation area.
Loading the already created evaluation area
Setting method
Procedure Screen: FILE
Press the key to call the File screen.
FILE
1
Select the media for loading.
2
Use the bar cursor to select the desired file.
3
Press the
[load]
4
Press the
[Exec]
5
When no more changes need be made to the
6
loaded settings, press the
Waveform display screen appear, and then press
the key to initiate measurement.
START
To change the settings, first change the contents,
press the key to make the Waveform display
DISP
screen appear, and then press the
initiate measurement.
"5.3 Loading Data" ( p.82)
See:
Requirements for loading waveform evaluation area BMP files
Observe the following requirements when creating waveform evaluation areas on a computer and when load-
ing waveform evaluation areas created on other equipment:
item
Color
White and black
Size 501 horizontal pixels
501 horizontal pixels
Files that do not satisfy these requirements cannot be loaded properly.
function key.
key.
key to make the
DISP
START
Condition
626 vertical pixels
×
501 vertical pixels
×
key to
Loading operation
White pixels are treated as background, and black pixels are
treated as the evaluation area.
The file will be used as the evaluation area for the Memory
Function 1 screen.
When using the FFT function, the file will be used as the FFT
evaluation area. When using other functionality, the file will be
used as the memory function XY evaluation area.
