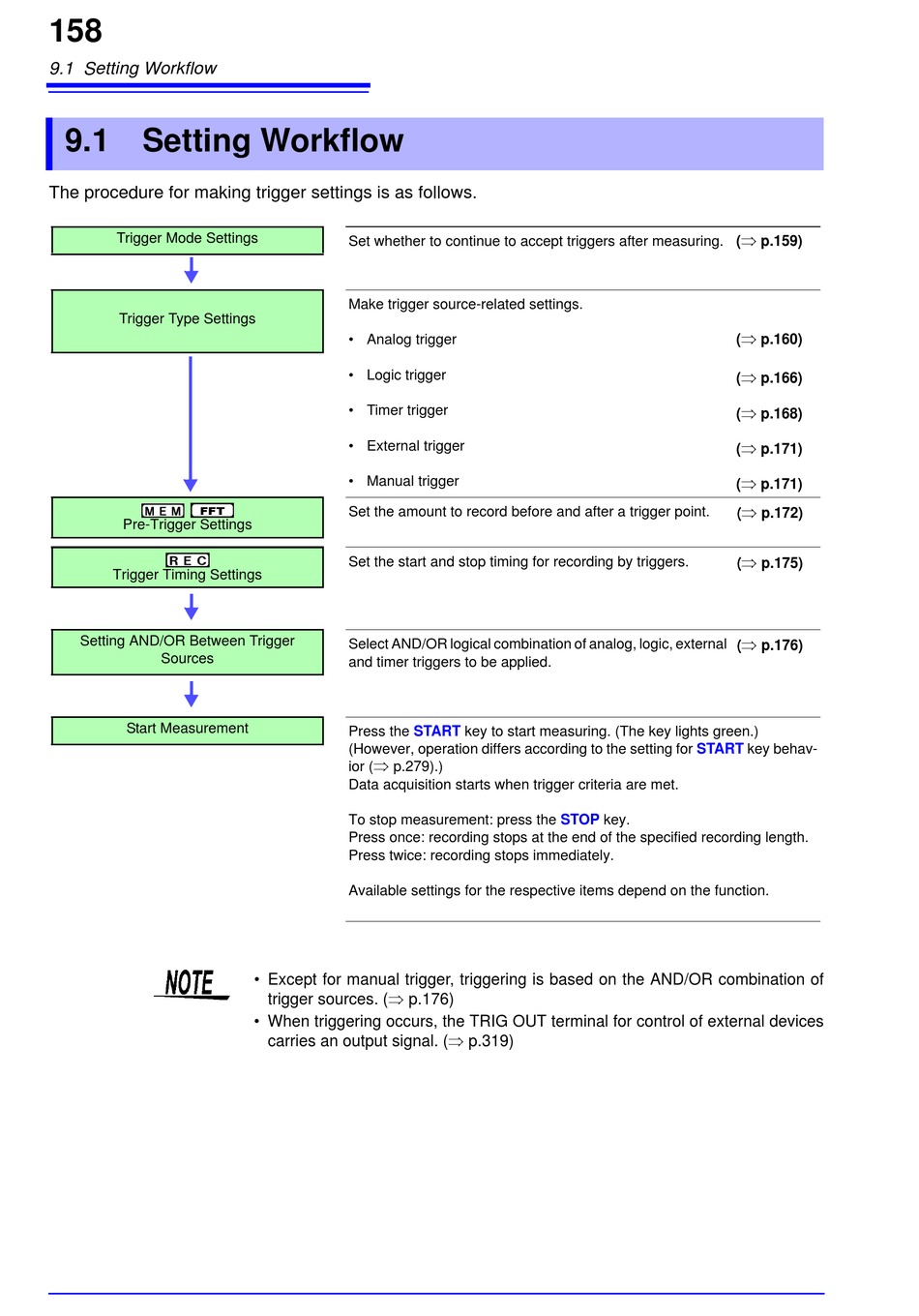

9.1 Setting Workflow

9.1 Setting Workflow
The procedure for making trigger settings is as follows.
Trigger Mode Settings
Trigger Type Settings
Pre-Trigger Settings
Trigger Timing Settings
Setting AND/OR Between Trigger
Sources
Start Measurement
Set whether to continue to accept triggers after measuring. (
Make trigger source-related settings.
• Analog trigger
• Logic trigger
• Timer trigger
• External trigger
• Manual trigger
Set the amount to record before and after a trigger point.
Set the start and stop timing for recording by triggers.
Select AND/OR logical combination of analog, logic, external
and timer triggers to be applied.
Press the START
(However, operation differs according to the setting for

ior ( p.279).)
Data acquisition starts when trigger criteria are met.
To stop measurement: press the
Press once: recording stops at the end of the specified recording length.
Press twice: recording stops immediately.
Available settings for the respective items depend on the function.
• Except for manual trigger, triggering is based on the AND/OR combination of
trigger sources. ( p.176)
• When triggering occurs, the TRIG OUT terminal for control of external devices
carries an output signal. ( p.319)
key to start measuring. (The key lights green.)
STOP key.

p.159)

( p.160)

( p.166)

( p.168)

( p.171)

( p.171)

(
p.172)

(
p.175)

(
p.176)
START key behav-
