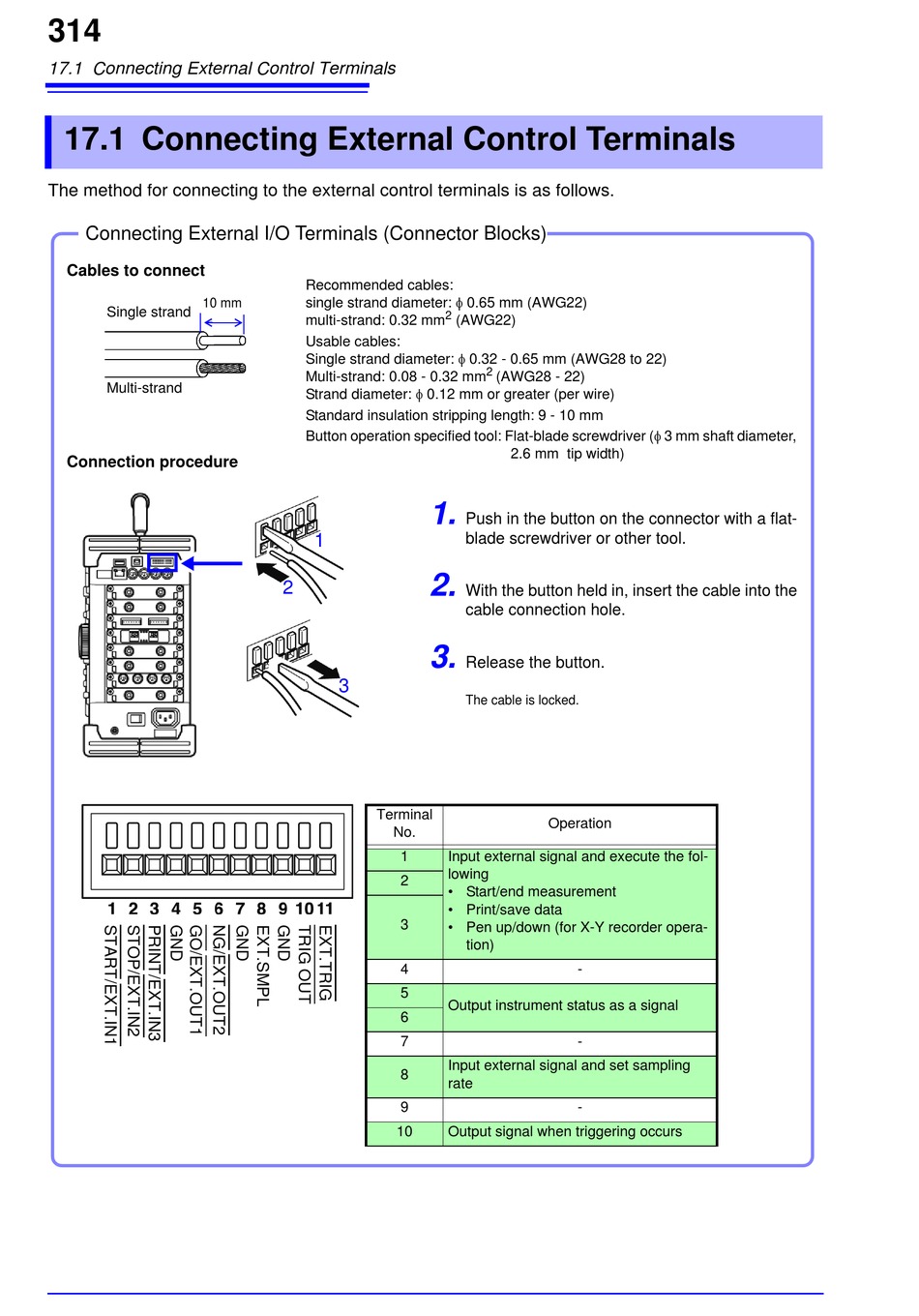

17.1 Connecting External Control Terminals

17.1 Connecting External Control Terminals
The method for connecting to the external control terminals is as follows.
Connecting External I/O Terminals (Connector Blocks)
Cables to connect
10 mm
Single strand
Multi-strand
Connection procedure
Recommended cables:
single strand diameter: 0.65 mm (AWG22)
2
multi-strand: 0.32 mm (AWG22)
Usable cables:
Single strand diameter: 0.32 - 0.65 mm (AWG28 to 22)
Multi-strand: 0.08 - 0.32 mm
Strand diameter: 0.12 mm or greater (per wire)
Standard insulation stripping length: 9 - 10 mm
Button operation specified tool: Flat-blade screwdriver (3 mm shaft diameter,
1.
1
2 2.
3.
3
Terminal
No.
1 Input external signal and execute the fol-
lowing
2
• Start/end measurement
• Print/save data
3
• Pen up/down (for X-Y recorder opera-
4
5
Output instrument status as a signal
6
7
Input external signal and set sampling
8
rate
9
10 Output signal when triggering occurs
2
(AWG28 - 22)
2.6 mm tip width)
Push in the button on the connector with a flat-
blade screwdriver or other tool.
With the button held in, insert the cable into the
cable connection hole.
Release the button.
The cable is locked.
Operation
tion)
-
-
-
