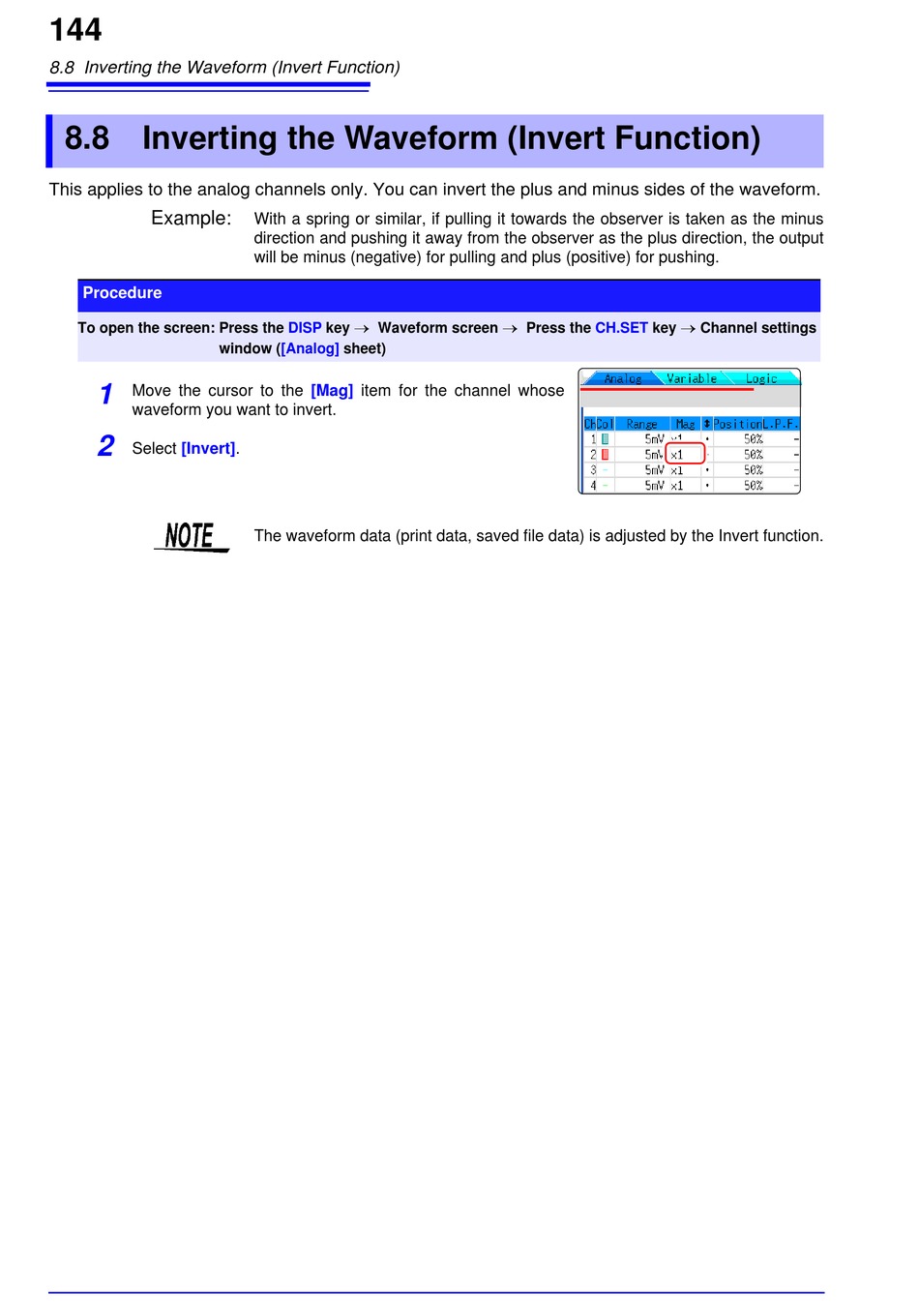

8.8 Inverting the Waveform (Invert Function)

8.8 Inverting the Waveform (Invert Function)
This applies to the analog channels only. You can invert the plus and minus sides of the waveform.
Example:
Procedure
To open the screen: Press the
window
1
Move the cursor to the
waveform you want to invert.
2
Select [Invert].
With a spring or similar, if pulling it towards the observer is taken as the minus
direction and pushing it away from the observer as the plus direction, the output
will be minus (negative) for pulling and plus (positive) for pushing.

DISP key Waveform screen
([Analog] sheet)
[Mag] item for the channel whose
The waveform data (print data, saved file data) is adjusted by the Invert function.

Press the CH.SET key

Channel settings
