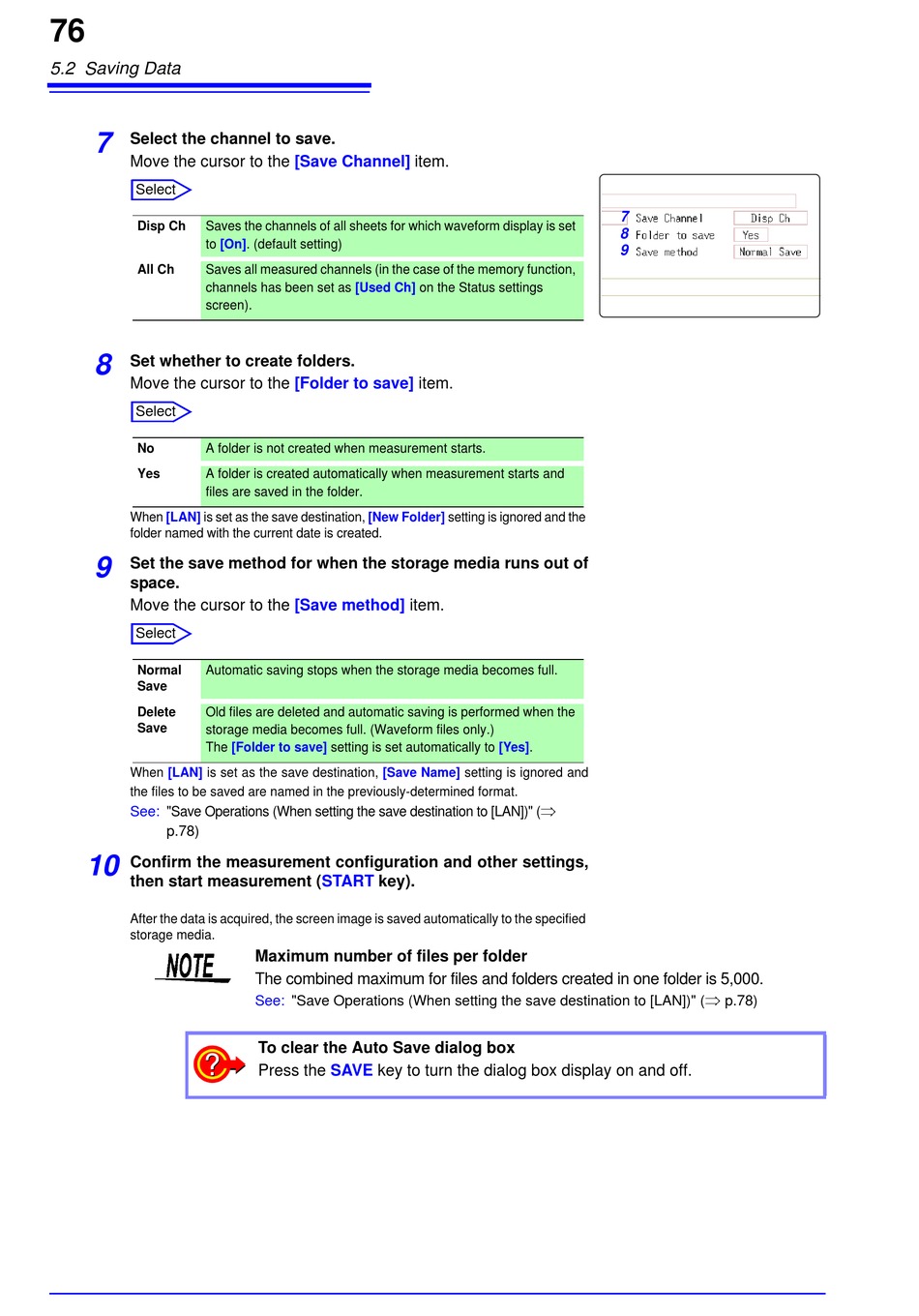

Hioki MEMORY HiCORDER MR8847-01 Instruction Manual page 86

76
5.2 Saving Data
7
Select the channel to save.
Move the cursor to the
Select
Disp Ch Saves the channels of all sheets for which waveform display is set
to [On]. (default setting)
All Ch Saves all measured channels (in the case of the memory function,
channels has been set as
screen).
8 Set whether to create folders.
Move the cursor to the
Select
No A folder is not created when measurement starts.
Yes A folder is created automatically when measurement starts and
files are saved in the folder.
When [LAN] is set as the save destination,
folder named with the current date is created.
9
Set the save method for when the storage media runs out of
space.
Move the cursor to the
Select
Normal Automatic saving stops when the storage media becomes full.
Save
Delete Old files are deleted and automatic saving is performed when the
Save
storage media becomes full. (Waveform files only.)
The
When [LAN] is set as the save destination,
the files to be saved are named in the previously-determined format.
See: "Save Operations (When setting the save destination to [LAN])" (
p.78)
10
Confirm the measurement configuration and other settings,
then start measurement
After the data is acquired, the screen image is saved automatically to the specified
storage media.
[Save Channel]
[Used Ch]
[Folder to save]
[New Folder]
[Save method]
[Folder to save] setting is set automatically to [Yes].
[Save Name]
(START key).
Maximum number of files per folder
The combined maximum for files and folders created in one folder is 5,000.
See: "Save Operations (When setting the save destination to [LAN])" (
To clear the Auto Save dialog box
Press the SAVE key to turn the dialog box display on and off.
item.
on the Status settings
item.
setting is ignored and the
item.
setting is ignored and

7
8
9

p.78)
