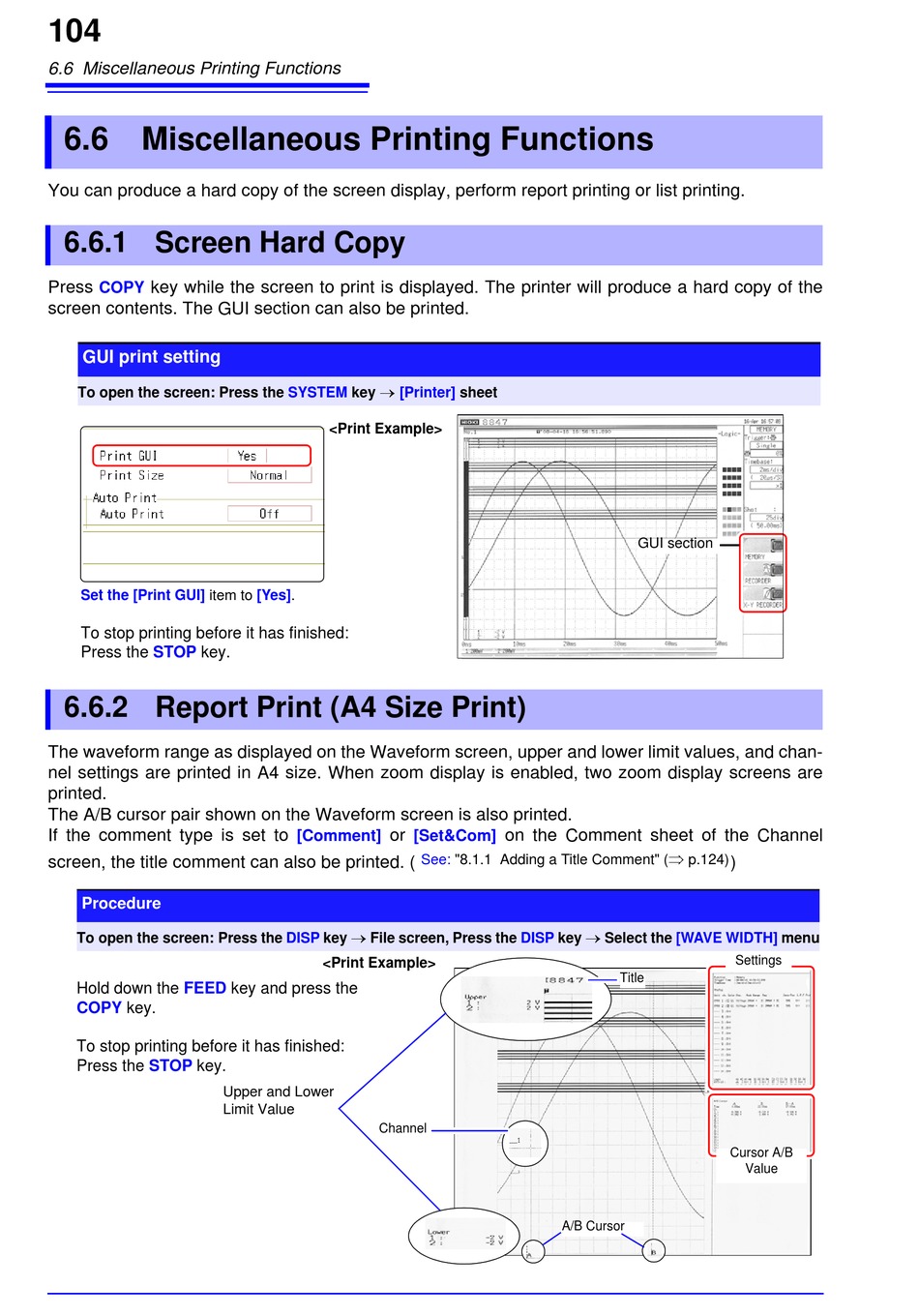

6.6 Miscellaneous Printing Functions

6.6 Miscellaneous Printing Functions
You can produce a hard copy of the screen display, perform report printing or list printing.

6.6.1 Screen Hard Copy

Press key while the screen to print is displayed. The printer will produce a hard copy of the
COPY
screen contents. The GUI section can also be printed.
GUI print setting
To open the screen: Press the
Set the [Print GUI] item to [Yes].
To stop printing before it has finished:
Press the STOP key.

6.6.2 Report Print (A4 Size Print)

The waveform range as displayed on the Waveform screen, upper and lower limit values, and chan-
nel settings are printed in A4 size. When zoom display is enabled, two zoom display screens are
printed.
The A/B cursor pair shown on the Waveform screen is also printed.
If the comment type is set to
screen, the title comment can also be printed. (
Procedure
To open the screen: Press the
Hold down the FEED
COPY key.
To stop printing before it has finished:
Press the STOP key.

SYSTEM key
<Print Example>
or
[Comment]

DISP key File screen, Press the
<Print Example>
key and press the
Upper and Lower
Limit Value
Channel
[Printer] sheet
on the Comment sheet of the Channel
[Set&Com]
See: "8.1.1 Adding a Title Comment" (
DISP key
A/B Cursor
GUI section

p.124)
)

Select the [WAVE WIDTH]
Settings
Title
Cursor A/B
Value
menu
