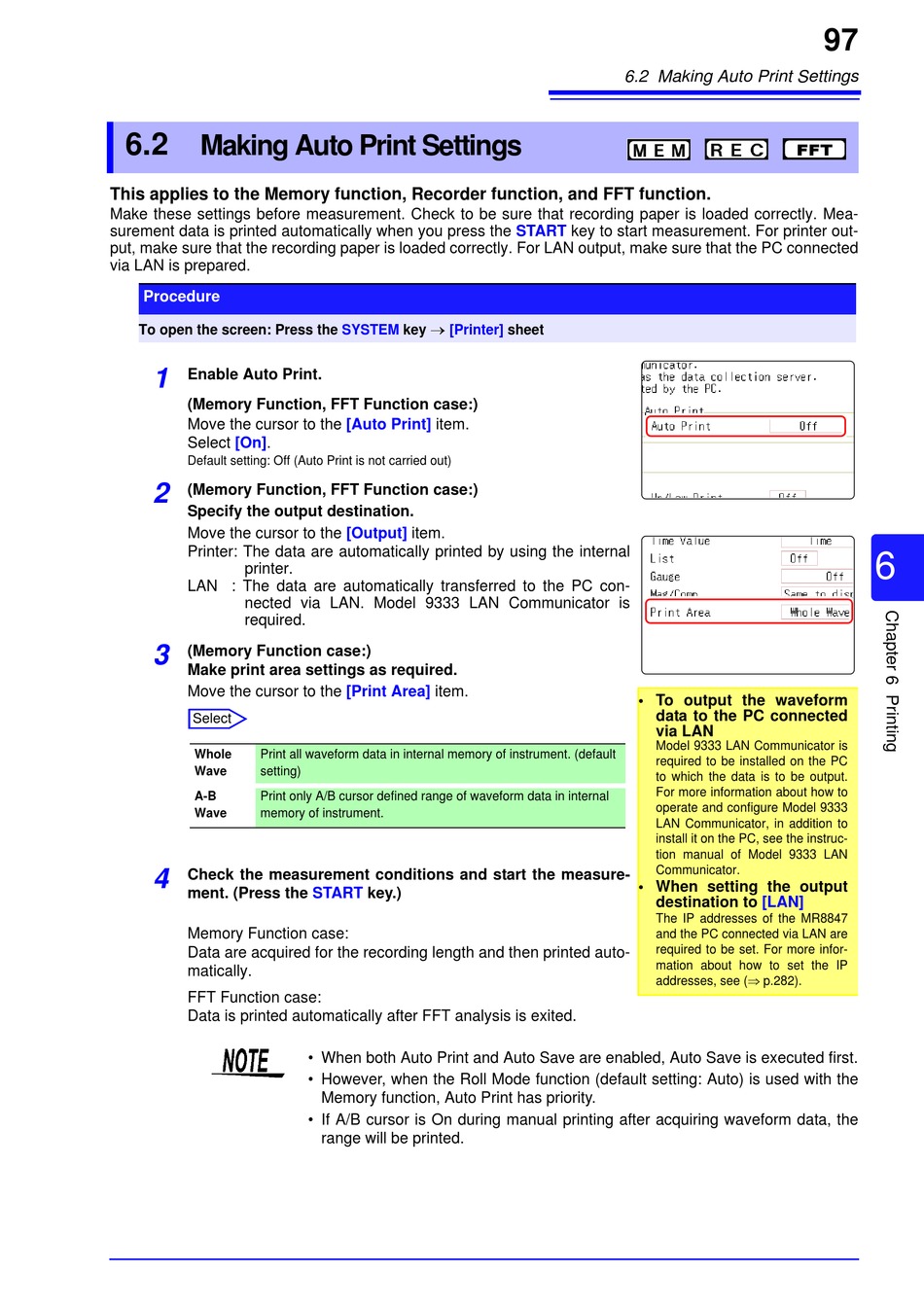

Making Auto Print Settings

This applies to the Memory function, Recorder function, and FFT function.
Make these settings before measurement. Check to be sure that recording paper is loaded correctly. Mea-
surement data is printed automatically when you press the
put, make sure that the recording paper is loaded correctly. For LAN output, make sure that the PC connected
via LAN is prepared.
Procedure
To open the screen: Press the
1
Enable Auto Print.
(Memory Function, FFT Function case:)
Move the cursor to the
Select [On].
Default setting: Off (Auto Print is not carried out)
2
(Memory Function, FFT Function case:)
Specify the output destination.
Move the cursor to the
Printer: The data are automatically printed by using the internal
printer.
LAN : The data are automatically transferred to the PC con-
nected via LAN. Model 9333 LAN Communicator is
required.
3
(Memory Function case:)
Make print area settings as required.
Move the cursor to the
Select
Whole Print all waveform data in internal memory of instrument. (default
Wave setting)
A-B Print only A/B cursor defined range of waveform data in internal
Wave memory of instrument.
4
Check the measurement conditions and start the measure-
ment. (Press the
Memory Function case:
Data are acquired for the recording length and then printed auto-
matically.
FFT Function case:
Data is printed automatically after FFT analysis is exited.

SYSTEM key [Printer]
[Auto Print] item.
[Output] item.
[Print Area] item.
START key.)
• When both Auto Print and Auto Save are enabled, Auto Save is executed first.
• However, when the Roll Mode function (default setting: Auto) is used with the
Memory function, Auto Print has priority.
• If A/B cursor is On during manual printing after acquiring waveform data, the
range will be printed.
