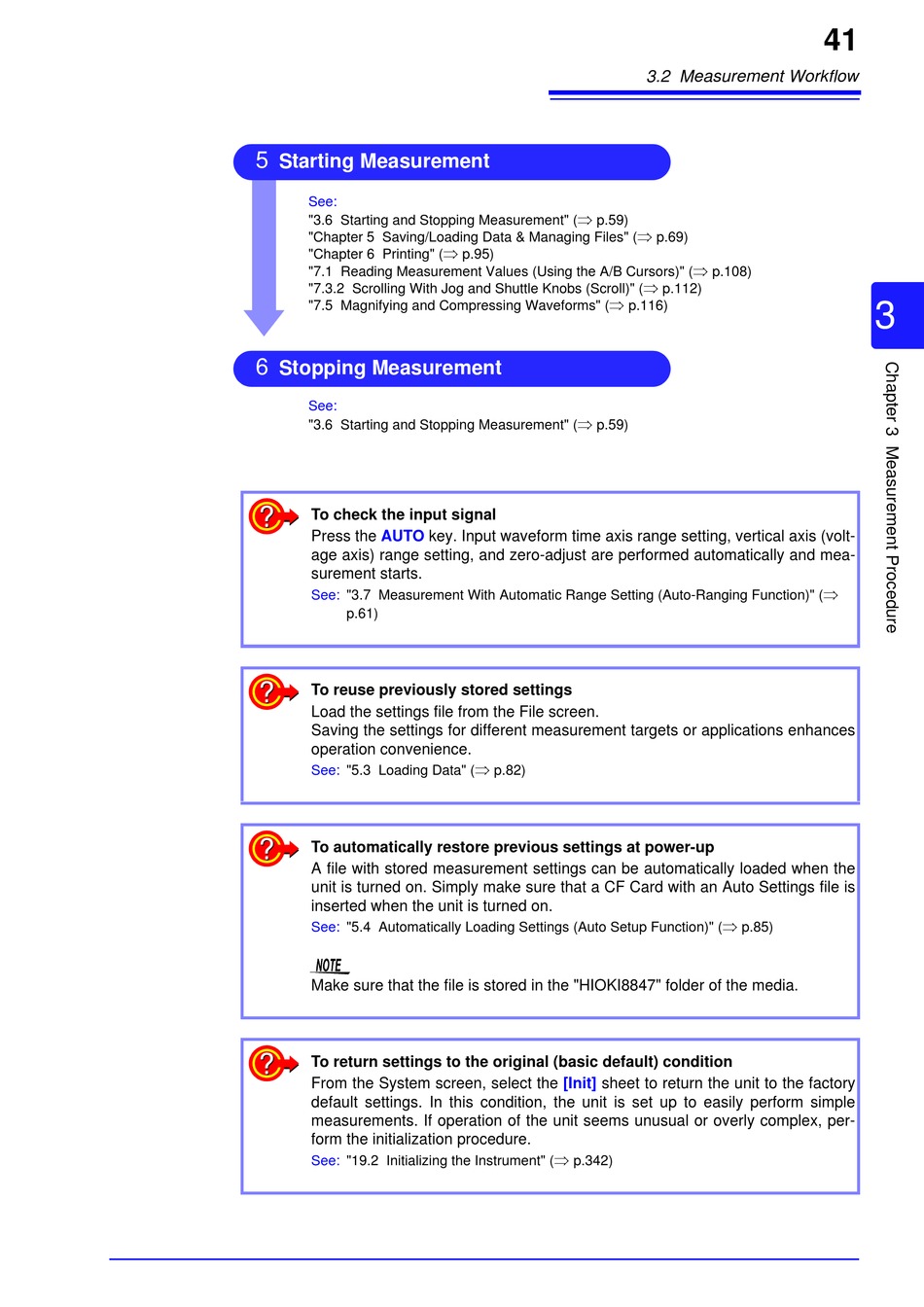

Hioki MEMORY HiCORDER MR8847-01 Instruction Manual page 51

5
Starting Measurement
See:
"3.6 Starting and Stopping Measurement" (
"Chapter 5 Saving/Loading Data & Managing Files" (
"Chapter 6 Printing" (
"7.1 Reading Measurement Values (Using the A/B Cursors)" (
"7.3.2 Scrolling With Jog and Shuttle Knobs (Scroll)" (
"7.5 Magnifying and Compressing Waveforms" (
6
Stopping Measurement
See:
"3.6 Starting and Stopping Measurement" (
To check the input signal
Press the AUTO key. Input waveform time axis range setting, vertical axis (volt-
age axis) range setting, and zero-adjust are performed automatically and mea-
surement starts.
See: "3.7 Measurement With Automatic Range Setting (Auto-Ranging Function)" (
p.61)
To reuse previously stored settings
Load the settings file from the File screen.
Saving the settings for different measurement targets or applications enhances
operation convenience.
See: "5.3 Loading Data" (
To automatically restore previous settings at power-up
A file with stored measurement settings can be automatically loaded when the
unit is turned on. Simply make sure that a CF Card with an Auto Settings file is
inserted when the unit is turned on.
See: "5.4 Automatically Loading Settings (Auto Setup Function)" (
Make sure that the file is stored in the "HIOKI8847" folder of the media.
To return settings to the original (basic default) condition
From the System screen, select the
default settings. In this condition, the unit is set up to easily perform simple
measurements. If operation of the unit seems unusual or overly complex, per-
form the initialization procedure.
See: "19.2 Initializing the Instrument" (

p.59)

p.95)


p.59)

p.82)
[Init] sheet to return the unit to the factory

p.342)
3.2 Measurement Workflow

p.69)

p.108)

p.112)
p.116)

p.85)
